Belden UR Series Coaxial Cable, 100m, URM76 Coaxial, Unterminated
- RS Stock No.:
- 521-8060
- Mfr. Part No.:
- URM76NH.01100
- Brand:
- Belden
37 In stock - FREE next working day delivery available
Added
Price 1 Reel of 100 Metre(s)
£186.48
(exc. VAT)
£223.78
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £186.48 | £1.865 |
| *price indicative | ||
- RS Stock No.:
- 521-8060
- Mfr. Part No.:
- URM76NH.01100
- Brand:
- Belden
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- NL
Product Details

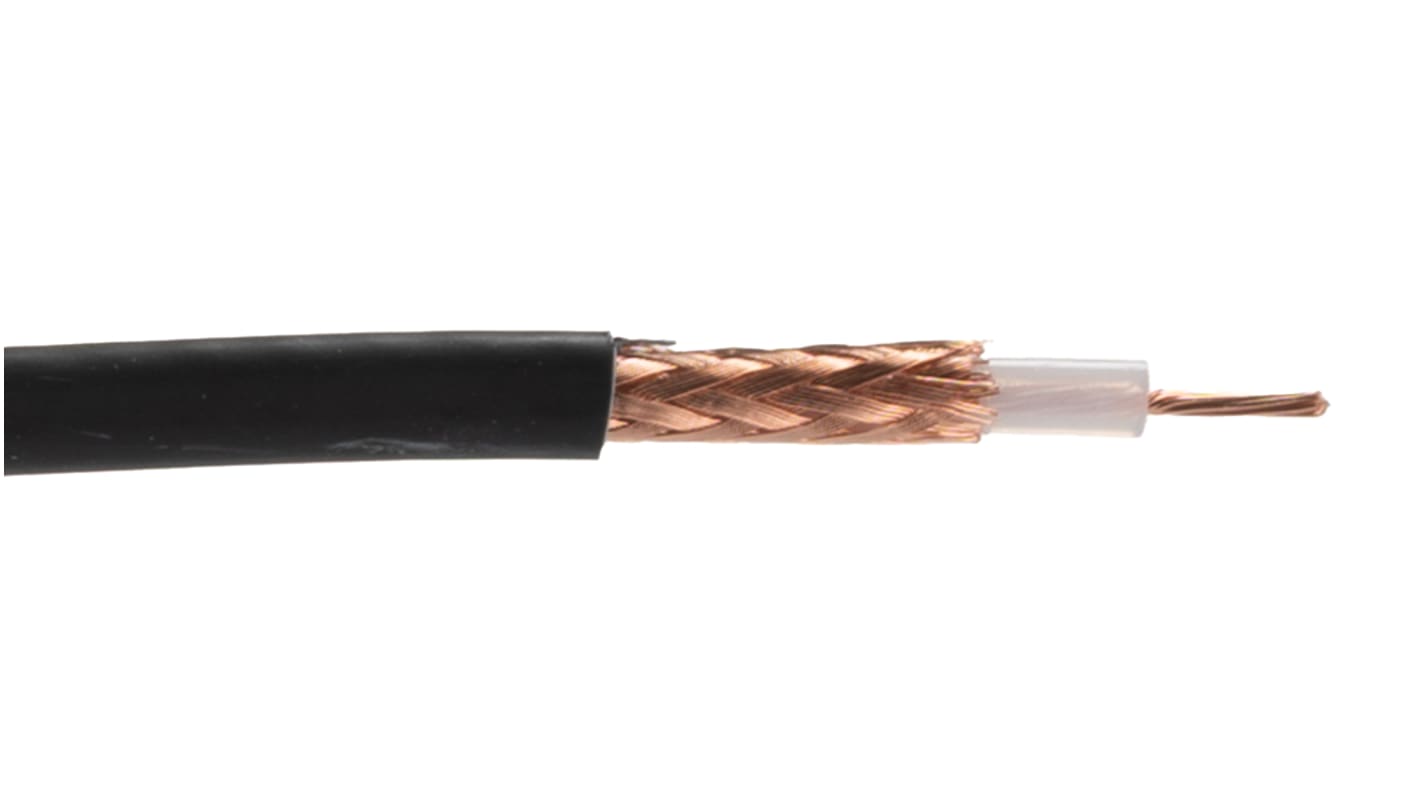

Belden Coaxial Cable, FRNC Sheath, 100m Length - URM76NH.01100
Use Belden’s 100m coaxial cable to carry high-frequency data signals over a long distance. The braided copper around the core is hard-wearing and highly conductive, making this an efficient and long-lasting choice. As the tough and flexible copper wiring bends freely without breaking, cable installation around corners is easy. A polyethylene insulator reduces signal loss and a copper mesh shield protects against EMI, giving you a fast and reliable connection.
Features & Benefits
• 50Ω impedance ensures minimum signal loss with maximum power and voltage
• Unterminated ends let you customise the cable to your needs
• FRNC sheath protects against fire and doesn’t corrode if burned, keeping your cable safe from hazards
• Unterminated ends let you customise the cable to your needs
• FRNC sheath protects against fire and doesn’t corrode if burned, keeping your cable safe from hazards
Applications
• Video signals
• Broadband connections
• CCTV
• Broadband connections
• CCTV
What’s the difference between URM and RF coaxial cables?
URM and RG are two different systems for defining RF coaxial cables. URM is the system used in the UK, while RG is more widely used in the USA.
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | URM76 |
| Outer Diameter | 5mm |
| CPR Certification | Eca |
| Characteristic Impedance | 50 Ω |
| Attenuation | 15.5 dB/100m @ 100MHz, 22.2 dB/100m @ 200MHz, 39.8 dB/100m @ 600MHz, 52.7 dB/100m @ 1GHz |
| Length | 100m |
| Sheath Colour | Black |
| Conductor Strand Type | Stranded |
| Fire Behaviour | Flame Retardant, Low Smoke Zero Halogen (LSZH) |
| Sheath Material | Flame Retardant Non-Corrosive (FRNC) |
| Maximum Operating Temperature | +70°C |
| Shielding | Braid |
| Insulation Material | PE |
| Standards Met | IEC 60332-1-2 |
| Core Strands | 7/0.3 |
| Capacitance | 98pF/m |
| Conductor Material | Tinned Copper |
| Size of Strands | 0.32 mm |
| Minimum Operating Temperature | -15°C |
| Velocity ratio | 66% |
| Series | UR |
| Operating Temperature Range | -15 → +70 °C |
| Number of Strands | 7 |
