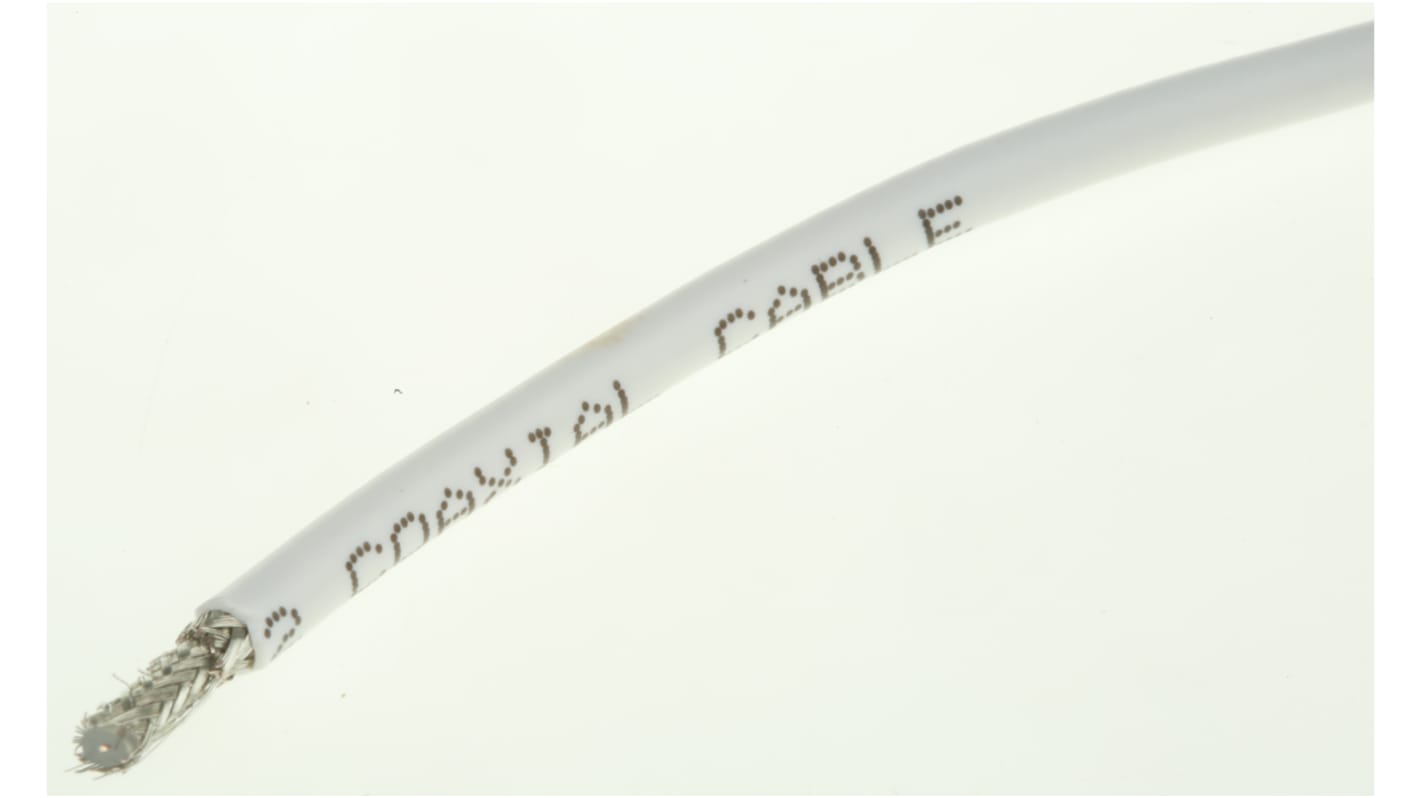

RS PRO Coaxial Cable, 100m, BT3002 Coaxial, Unterminated
- RS Stock No.:
- 521-3699
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 3
£177.98
(exc. VAT)
£213.58
(inc. VAT)
- RS Stock No.:
- 521-3699
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Terminated/Unterminated | Unterminated | |
| Coaxial Type | BT3002 | |
| Outer Diameter | 3.55mm | |
| Characteristic Impedance | 75 Ω | |
| Attenuation | 4.8 dB/100m @ 5MHz | |
| Length | 100m | |
| Sheath Colour | White | |
| Conductor Strand Type | Solid | |
| Velocity ratio | 66.7% | |
| Insulation Material | PE | |
| Shielding | Tinned Copper Braid | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Number of Strands | 1 | |
| Operating Temperature Range | -20 → +80 °C | |
| Size of Strands | 0.31 mm | |
| Conductor Material | Bare Copper | |
| Core Strands | 1/0.31 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type BT3002 | ||
Outer Diameter 3.55mm | ||
Characteristic Impedance 75 Ω | ||
Attenuation 4.8 dB/100m @ 5MHz | ||
Length 100m | ||
Sheath Colour White | ||
Conductor Strand Type Solid | ||
Velocity ratio 66.7% | ||
Insulation Material PE | ||
Shielding Tinned Copper Braid | ||
Sheath Material Polyvinyl Chloride PVC | ||
Number of Strands 1 | ||
Operating Temperature Range -20 → +80 °C | ||
Size of Strands 0.31 mm | ||
Conductor Material Bare Copper | ||
Core Strands 1/0.31 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- CN
