Belden 1505F Series, RG59 Coaxial, Unterminated75 Ω
- RS Stock No.:
- 162-3167
- Mfr. Part No.:
- 1505FPU.00305
- Brand:
- Belden
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 162-3167
- Mfr. Part No.:
- 1505FPU.00305
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Terminated/Unterminated | Unterminated | |
| Coaxial Type | RG59 | |
| Outer Diameter | 6.13mm | |
| Characteristic Impedance | 75 Ω | |
| Attenuation | 87.6 dB/100m @ 4500 MHz | |
| Sheath Colour | Black | |
| Conductor Strand Type | Stranded | |
| Fire Behaviour | Flame Retardant | |
| Maximum Operating Temperature | +75°C | |
| Standards Met | EU Certified, EU Directive 2003/11/EC (BFR), UL Certified | |
| Series | 1505F | |
| Number of Strands | 1 | |
| Operating Temperature Range | -35 → +75 °C | |
| Core Strands | 1/0.81 | |
| Shielding | Tinned Copper Braid | |
| Insulation Material | FPE | |
| Conductor Material | Copper | |
| Velocity ratio | 0.83 | |
| Minimum Operating Temperature | -35°C | |
| Sheath Material | PUR | |
Select all | ||
|---|---|---|
Brand Belden | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type RG59 | ||
Outer Diameter 6.13mm | ||
Characteristic Impedance 75 Ω | ||
Attenuation 87.6 dB/100m @ 4500 MHz | ||
Sheath Colour Black | ||
Conductor Strand Type Stranded | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +75°C | ||
Standards Met EU Certified, EU Directive 2003/11/EC (BFR), UL Certified | ||
Series 1505F | ||
Number of Strands 1 | ||
Operating Temperature Range -35 → +75 °C | ||
Core Strands 1/0.81 | ||
Shielding Tinned Copper Braid | ||
Insulation Material FPE | ||
Conductor Material Copper | ||
Velocity ratio 0.83 | ||
Minimum Operating Temperature -35°C | ||
Sheath Material PUR | ||
- COO (Country of Origin):
- NL

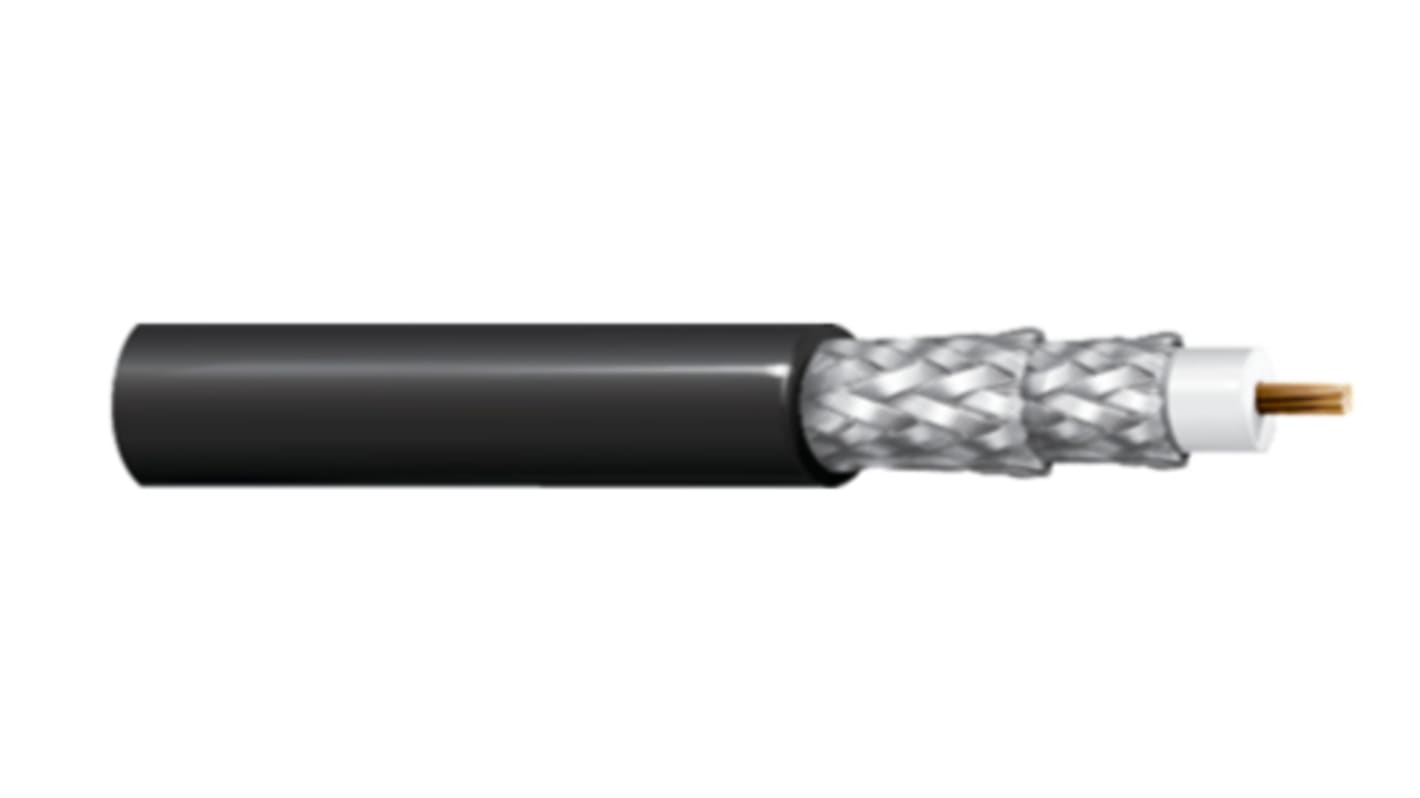

Belden 1505F Serial Digital Interface (SDI) Coaxial Cable, RG-59, 1505FPU.00305
If you need dependable signal transmission for your digital video application, try the 1505FPU.00305 coaxial cable from Belden.
The Belden 1505FPU.00305 low loss serial digital coax cable uses 1 bare copper 20 AWG conductor. It features a double 95% tinned copper braid shield to protect against electromagnetic interference (EMI), reducing unwanted noise and minimising signal loss. This coaxial cable has a nominal characteristic impedance of 75 Ohm. The operating temperature range for this unit is -30°C to +70°C.
This Belden 1505F cable is RG-59 rated, a type of cable which is ideally suited for low bandwidth and low frequency applications. It has a length of 305m.
Features and Benefits:
• UV resistant and suitable for indoor and outdoor use
• Specially formulated FPE (Foamed Polyethylene) insulation is crush-resistant
• Outer jacket is made of durable PUR (Polyurethane), ensuring flexibility and resilience against oil/flames
• Maximum pull tension of 200 N (45 lbf)
• Specially formulated FPE (Foamed Polyethylene) insulation is crush-resistant
• Outer jacket is made of durable PUR (Polyurethane), ensuring flexibility and resilience against oil/flames
• Maximum pull tension of 200 N (45 lbf)
Applications:
Digital Video
6 Gb/s UHDTV
HD-SDI 1080
6 Gb/s UHDTV
HD-SDI 1080
What is the difference between RG-59 and RG-6?
RG-6 coaxial cables are better suited for high bandwidth, high frequency installations like cable tv, satellite tv, and broadband internet. They use a larger conductor and have thicker dielectric insulation.
