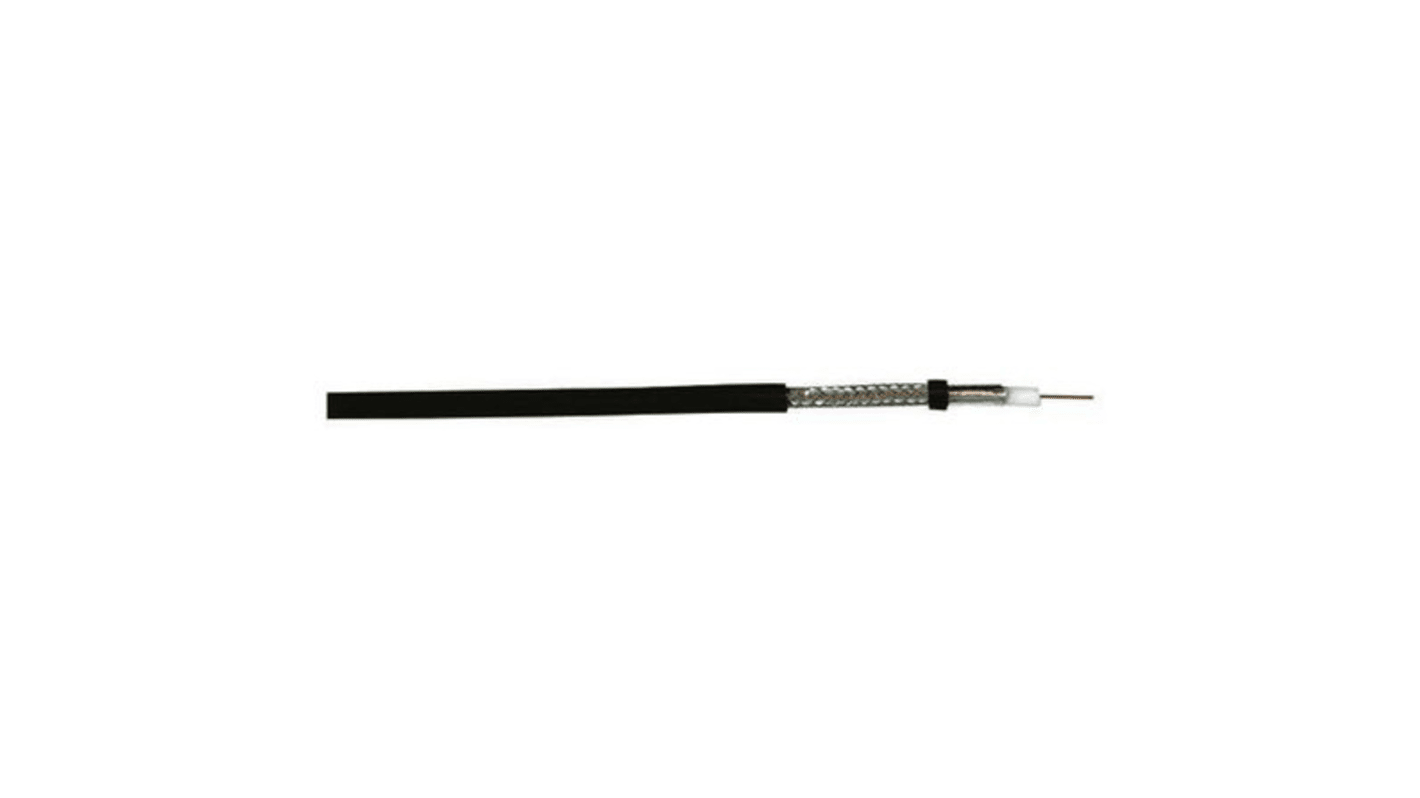

S2Ceb-Groupe Cae, 100m, Unterminated75 Ω
- RS Stock No.:
- 226-700
- Mfr. Part No.:
- HD 08370 LSZH
- Brand:
- S2Ceb-Groupe Cae
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£343.30
(exc. VAT)
£411.96
(inc. VAT)
- RS Stock No.:
- 226-700
- Mfr. Part No.:
- HD 08370 LSZH
- Brand:
- S2Ceb-Groupe Cae
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | S2Ceb-Groupe Cae | |
| Terminated/Unterminated | Unterminated | |
| Outer Diameter | 6mm | |
| Characteristic Impedance | 75 Ω | |
| Attenuation | 28.3 dB/100m @ 1GHz, 32.5 dB/100m @ 1500MHz, 47.1 dB/100m @ 3GHz, 8.4 dB/100m @ 100MHz | |
| Length | 100m | |
| Sheath Colour | Purple | |
| Conductor Strand Type | Solid | |
| Minimum Operating Temperature | -10°C | |
| Velocity ratio | 80% | |
| Insulation Material | Foam PE | |
| Shielding | Aluminium Coated Foil, Tinned Copper Braid | |
| Sheath Material | Low Smoke Zero Halogen (LSZH) | |
| Number of Strands | 1 | |
| Operating Temperature Range | -10 → +70 °C | |
| Maximum Operating Temperature | +70°C | |
| Size of Strands | 0.8 mm | |
| Conductor Material | Bare Copper | |
| Core Strands | 1/0.8 mm | |
Select all | ||
|---|---|---|
Brand S2Ceb-Groupe Cae | ||
Terminated/Unterminated Unterminated | ||
Outer Diameter 6mm | ||
Characteristic Impedance 75 Ω | ||
Attenuation 28.3 dB/100m @ 1GHz, 32.5 dB/100m @ 1500MHz, 47.1 dB/100m @ 3GHz, 8.4 dB/100m @ 100MHz | ||
Length 100m | ||
Sheath Colour Purple | ||
Conductor Strand Type Solid | ||
Minimum Operating Temperature -10°C | ||
Velocity ratio 80% | ||
Insulation Material Foam PE | ||
Shielding Aluminium Coated Foil, Tinned Copper Braid | ||
Sheath Material Low Smoke Zero Halogen (LSZH) | ||
Number of Strands 1 | ||
Operating Temperature Range -10 → +70 °C | ||
Maximum Operating Temperature +70°C | ||
Size of Strands 0.8 mm | ||
Conductor Material Bare Copper | ||
Core Strands 1/0.8 mm | ||
- COO (Country of Origin):
- IT
HDTV Video Cables
Video cable for HDTV digital video connections.
Compact, easy to install.
Excellent protection against interference and electromagnetic interference.
Compact, easy to install.
Excellent protection against interference and electromagnetic interference.
