Analog Devices EVAL-CN0290-SDPZ, PLL Frequency Synthesizer Reference Design for CN0290
- RS Stock No.:
- 832-9558
- Mfr. Part No.:
- EVAL-CN0290-SDPZ
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 832-9558
- Mfr. Part No.:
- EVAL-CN0290-SDPZ
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Clock/Timer Function | PLL Frequency Synthesizer | |
| Kit Classification | Reference Design | |
| Featured Device | CN0290 | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Clock/Timer Function PLL Frequency Synthesizer | ||
Kit Classification Reference Design | ||
Featured Device CN0290 | ||

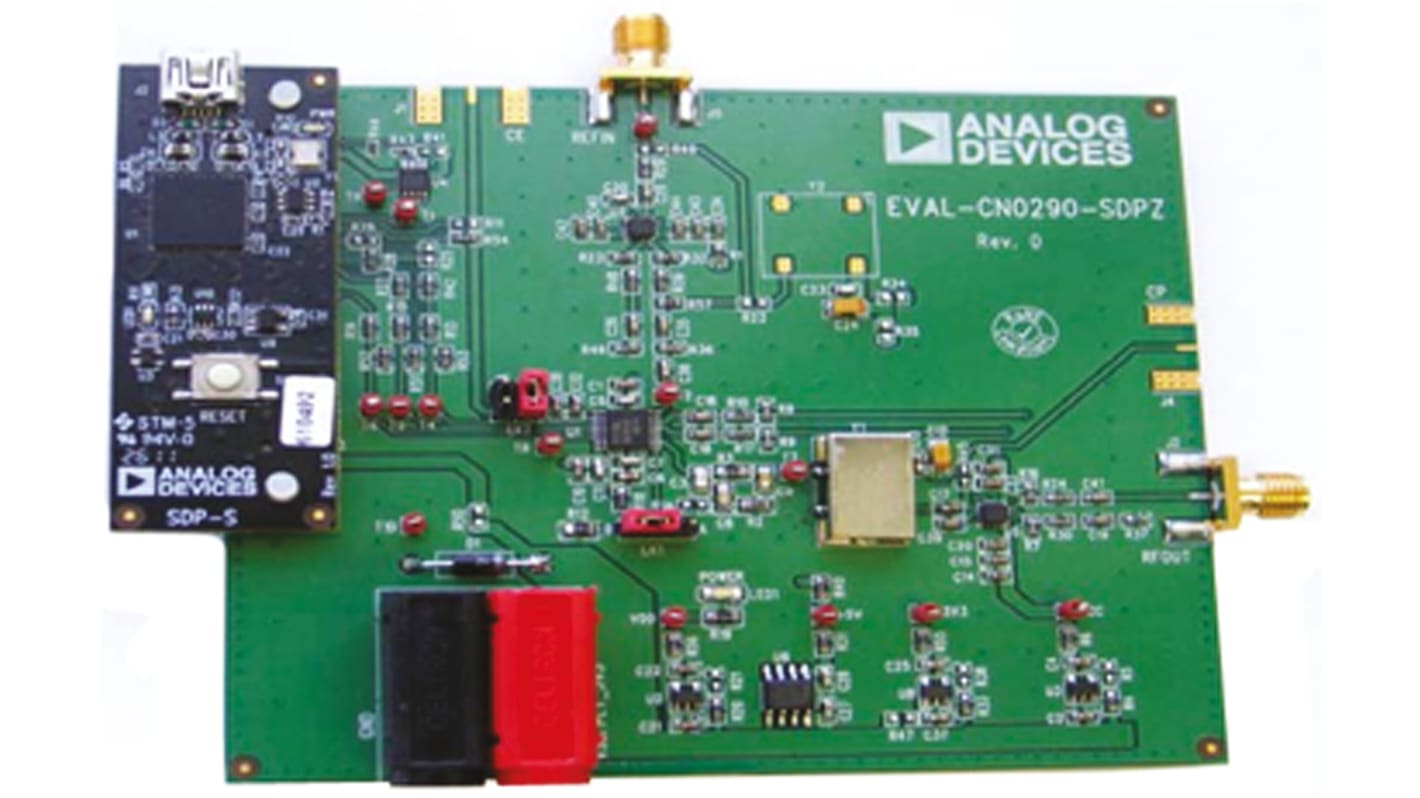

Evaluation Board for Circuit CN0290
The EVAL-CN0290-SDPZ, from Analog Devices, is an evaluation board for the CN0290 circuit. The EVAL-CN0290-SDPZ is designed to extend the minimum reference and minimum output frequency of a phase locked loop (PLL). The board is programmable using the ADF4106 Integer-N software. it comes with a USB cable to connect to a PC USB port. The EVAL-CN0290-SDPZ requires 5.5V power supplies and a standard PC running Windows® XP, Windows Vista (32-bit), or Windows 7 with a USB port.
The CN0290 circuit extends the low frequency range of a high performance phase locked loop (PLL).
The CN0290 circuit extends the low frequency range of a high performance phase locked loop (PLL).
The EVAL-CN0290-SDPZ contains:
- ADF4106: synthesizer
- ADCLK905: clock buffer
- ADCKL925: clock buffer
- Ultralow noise LDOs
- 100MHz VCXO
- ADF4106: synthesizer
- ADCLK905: clock buffer
- ADCKL925: clock buffer
- Ultralow noise LDOs
- 100MHz VCXO
Phase Locked Loop ICs
