Hank Zinc plated & clear Passivated Steel Rivet Bush, M2
- RS Stock No.:
- 505-369
- Brand:
- Hank
Available to back order for despatch 24/07/2024
Added
Price 1 Bag of 100
£32.80
(exc. VAT)
£39.36
(inc. VAT)
| Bag(s) | Per Bag | Per unit* |
| 1 + | £32.80 | £0.328 |
| *price indicative | ||
- RS Stock No.:
- 505-369
- Brand:
- Hank
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

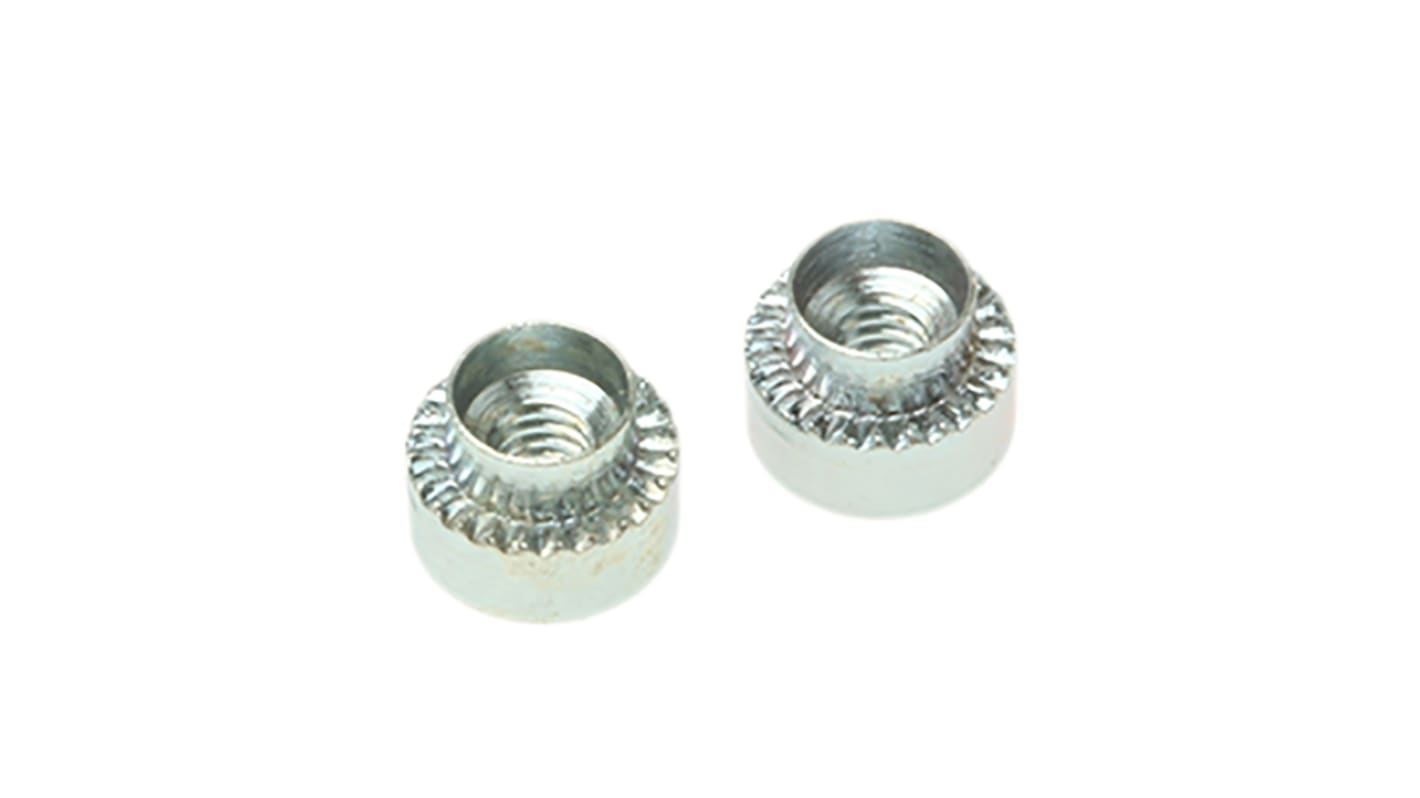

Hank® Rivet Bushes
Provides a permanent deep tapped hole in thin sheet metals or plastics
Zinc plated, clear passivated steel
Hammer in, or simple press fastening
Zinc plated, clear passivated steel
Hammer in, or simple press fastening
Note
Dimension A is the fixing hole size, Dimension B is the outside diameter, Dimension C is the depth.
Clinchnuts & Thread Inserts
Specifications
Attribute | Value |
|---|---|
| Thread Size | M2 |
| Fixing Hole Diameter | 3.5mm |
| Body Outside Diameter | 5mm |
| Body Depth | 2.2mm |
| Material | Steel |
| Finish | Zinc plated & clear Passivated |
| Thickness of Material Maximum | 1mm |
| Thickness of Material Minimum | 0.9mm |
