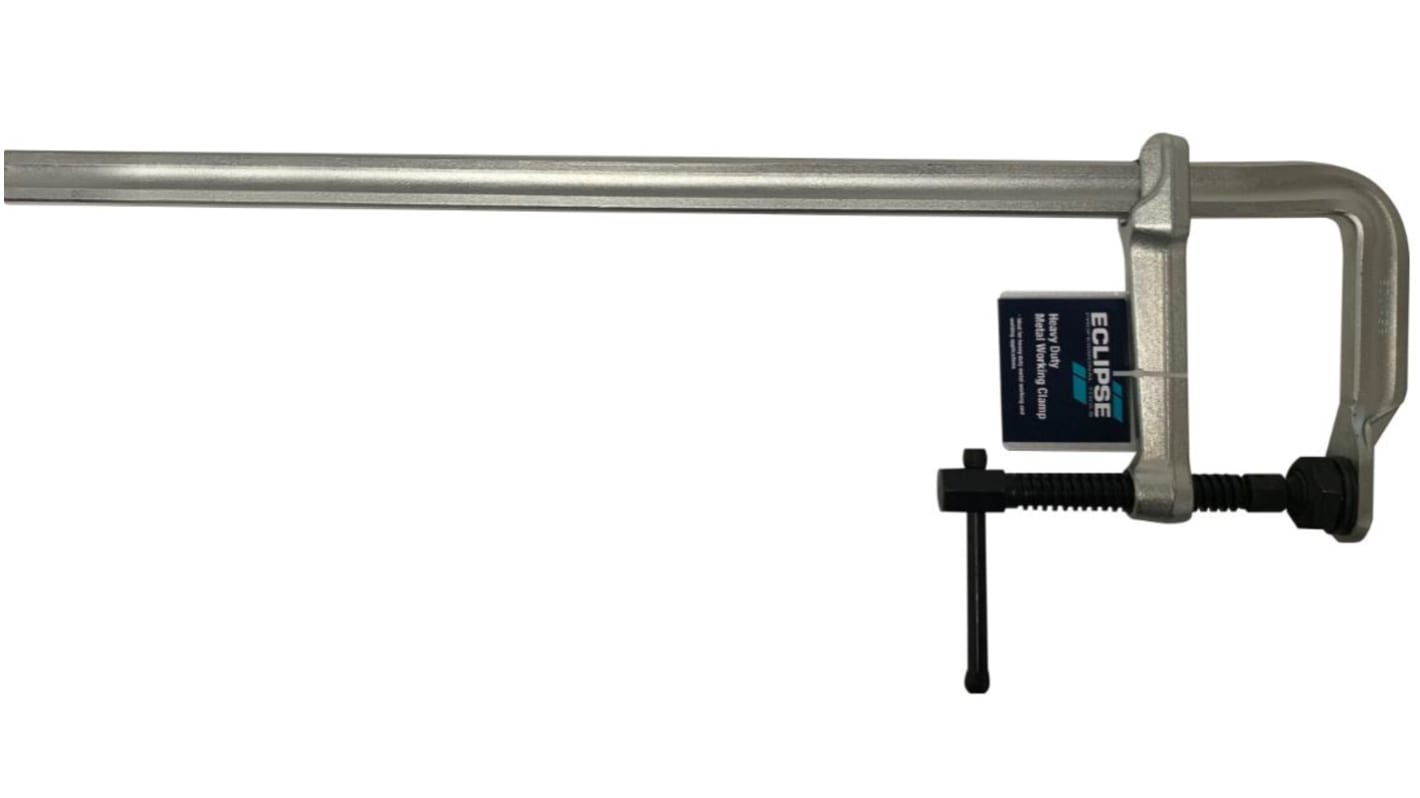

Eclipse 300 mm x 140 mm Heavy Duty Metal Working Clamp
- RS Stock No.:
- 226-5998
- Mfr. Part No.:
- EC-GS12
- Brand:
- Eclipse
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 226-5998
- Mfr. Part No.:
- EC-GS12
- Brand:
- Eclipse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eclipse | |
| Sub Type | Heavy Duty Metal Working | |
| Product Type | Clamp | |
| Jaw Opening | 300mm | |
| Jaw Depth | 140mm | |
| Finish | Zinc Plated | |
| Clamping Force | 750kg | |
| Material | Forged Steel | |
| Standards/Approvals | No | |
| Series | EC-GS12 | |
| Length | 542mm | |
| Select all | ||
|---|---|---|
Brand Eclipse | ||
Sub Type Heavy Duty Metal Working | ||
Product Type Clamp | ||
Jaw Opening 300mm | ||
Jaw Depth 140mm | ||
Finish Zinc Plated | ||
Clamping Force 750kg | ||
Material Forged Steel | ||
Standards/Approvals No | ||
Series EC-GS12 | ||
Length 542mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The Eclipse heavy duty metal working clamp. Made from high quality steel bar (30mm wide x 15mm thick). Heat treated Circular pressure clamping plate with a full ball type support can be tilted 35° to withstand heavy duty working and clamp awkward shaped work pieces.
Hex design screw end for reinforcing clamping
Range available with 10", 12", 16", 20" & 24" clamping capabilities and 140mm throat depth
Ideal for heavy duty metal working and welding applications
