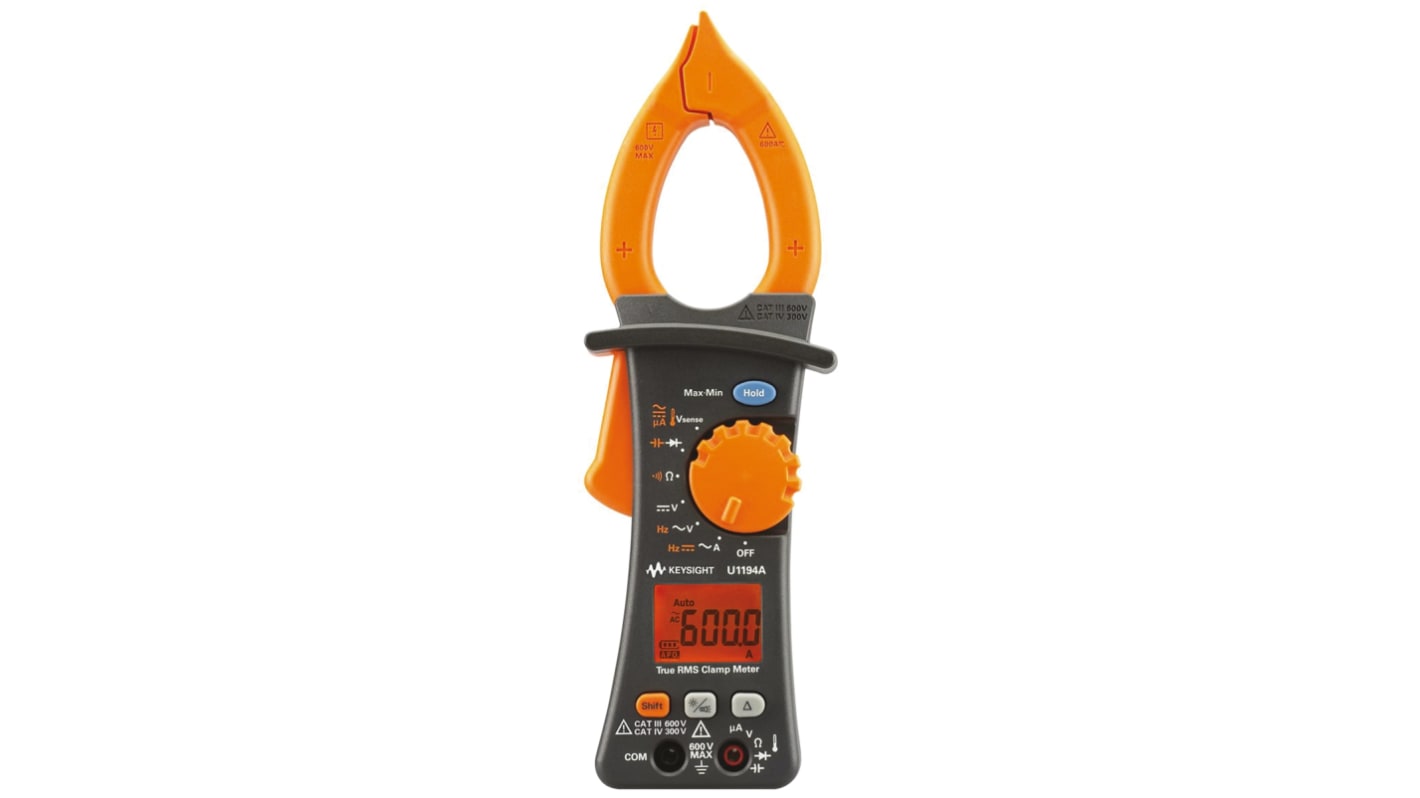

Keysight Technologies U1194A Clamp Meter, 600A dc, Max Current 600A ac CAT III 600 V, CAT IV 300 V

View all Clamp Meters
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Keysight Technologies U1192A Clamp Meter, Max Current 400A ac CAT III 600 V, CAT IV 300 V
RS Stock No.
746-7113

Each

£236.00

(exc. VAT)

£283.20

(inc. VAT)

Calibration Options:

presentation
Keysight Technologies U1194A Clamp Meter, 600A dc, Max Current 600A ac CAT III 600 V, CAT IV 300 V With UKAS Calibration
Calibration Type:
UKAS
RS Stock No.
747-6861

Each

£450.00

(exc. VAT)

£540.00

(inc. VAT)

presentation
Keysight Technologies U1194A Clamp Meter, 600A dc, Max Current 600A ac CAT III 600 V, CAT IV 300 V With RS Calibration
Calibration Type:
RSCAL
RS Stock No.
747-6870

Each

£429.50

(exc. VAT)

£515.40

(inc. VAT)

RS Stock No.:
746-7110
Mfr. Part No.:
U1194A
Brand:
Keysight Technologies
Find similar products by selecting one or more attributes.
Select all

Brand

Keysight Technologies

Absolute Maximum AC Current Measurement

600A ac

Absolute Maximum DC Current Measurement

600A dc

Absolute Maximum AC Voltage Measurement

600V ac

Absolute Maximum DC Voltage Measurement

600V dc

Absolute Maximum Resistance Measurement

60kΩ

Model Number

U1194A

AC Current Measurement Resolution

10nA

DC Current Measurement Resolution

10nA

Best DC Current Accuracy

±(1% rdg + 5dgts)

Clamp Meter Type

AC/DC Clamp Meter

Best AC Current Accuracy

±(1% rdg + 5dgts)

Best AC Voltage Accuracy

±(1.2% rdg + 5dgts)

Best DC Voltage Accuracy

±(0.5% rdg + 3dgts)

Jaw Capacity Busbars

35mm

True RMS

Yes

Functions Measured

AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature

Height

38.6mm

AC Voltage Measurement Resolution

10mV

Battery Life

200 (Backlight Off) h, 40 (Backlight On) h

Maximum Conductor Size

35mm

Temperature Measurement Resolution

0.1°C

Absolute Maximum Temperature Measurement

+1200°C

Minimum Operating Temperature

-10°C

Best Temperature Measurement Accuracy

±1% + 2 °C

Dimensions

225 x 77.1 x 38.6mm

Width

77.1mm

Weight

348g

Power Source

Battery

Display Type

LCD

DC Voltage Measurement Resolution

10mV

Resistance Measurement Resolution

100mΩ

Best Resistance Measurement Accuracy

±0.8% + 3 Digits

Safety Category

CAT III 600 V, CAT IV 300 V

Battery Type

AAA

Safety Category Voltage

300 V, 600 V

Safety Category Level

CAT IV, CAT III

Maximum Operating Temperature

+50°C

Non-Contact Voltage Detector

Yes

Length

225mm

Keysight U1194A Clampmeter True-rms


Keysight U1190 Series clampmeters are built to perform in the environments that users work in. Current measurement is up to an impressive 600A. These instruments are ergonomically designed to fit comfortably in the palm of the hand and allow selection of measurement functions with a simple thumb press.

Unique wire separator to separate wires from a bundle
Vsense to perform non-contact voltage detection
Built-in LED flashlight to illuminate test area
Visual (backlight alert) and audible continuity indication in noisy environments
Current measurement up to 600A
Digital multimeter (DMM) with resistance, capacitance, DCV, ACV, DCA, ACA, DCμA and ACμA measurement capabilities
Continuity and diode test measurements
Operating temperature from -10 to 50 °C, 0 to 80% RH
Temperature: K-type: -40 to 1,200 °C
CAT III 600V / CAT IV 300V safety rating
Battery type 2 x 1.5 V AAA Alkaline battery
Display Liquid crystal display (LCD)
Auto power OFF

Supplied with

Quick Start Guide, Certificate of calibration, Test leads with 4-mm tips, K-type thermocouple, 1.5 V AAA Alkaline battery, Soft carrying case

Keysight Technologies Clamp Meter, 60 to 600V AC/DC Voltage Measuring Range, Battery-Powered - U1190 Series - U1194A


Hold fast to measure the AC/DC current and voltage levels of your devices using this clamp meter from Keysight Technologies. Simply clip the jaw onto your circuits to get a read on them. An integrated rotary dial lets you get the ball rolling to select different measurements. Want to make sure you can see the test area clearly? Turn on the LED flashlight to throw some light on the situation. Thanks to the built-in wire separator, you'll be able to reach a single cable from a bundle without going through the stress of separating it yourself.

Features & Benefits


• Data hold button for convenient recording of readings
• Backlit LCD screen for easy viewing of results in dimly lit areas
• Wide operating temperature range between -10°C and +50°C for use in harsh environments
• Maximum battery life of 200 hours for lasting use

Applications


• Electrical engineering
• HVAC systems
• Power stations

What other parameters can I measure with this clamp meter?


In addition to current and voltage, you can also use this versatile clamp meter to measure parameters such as capacitance, continuity, frequency, resistance and temperature.
