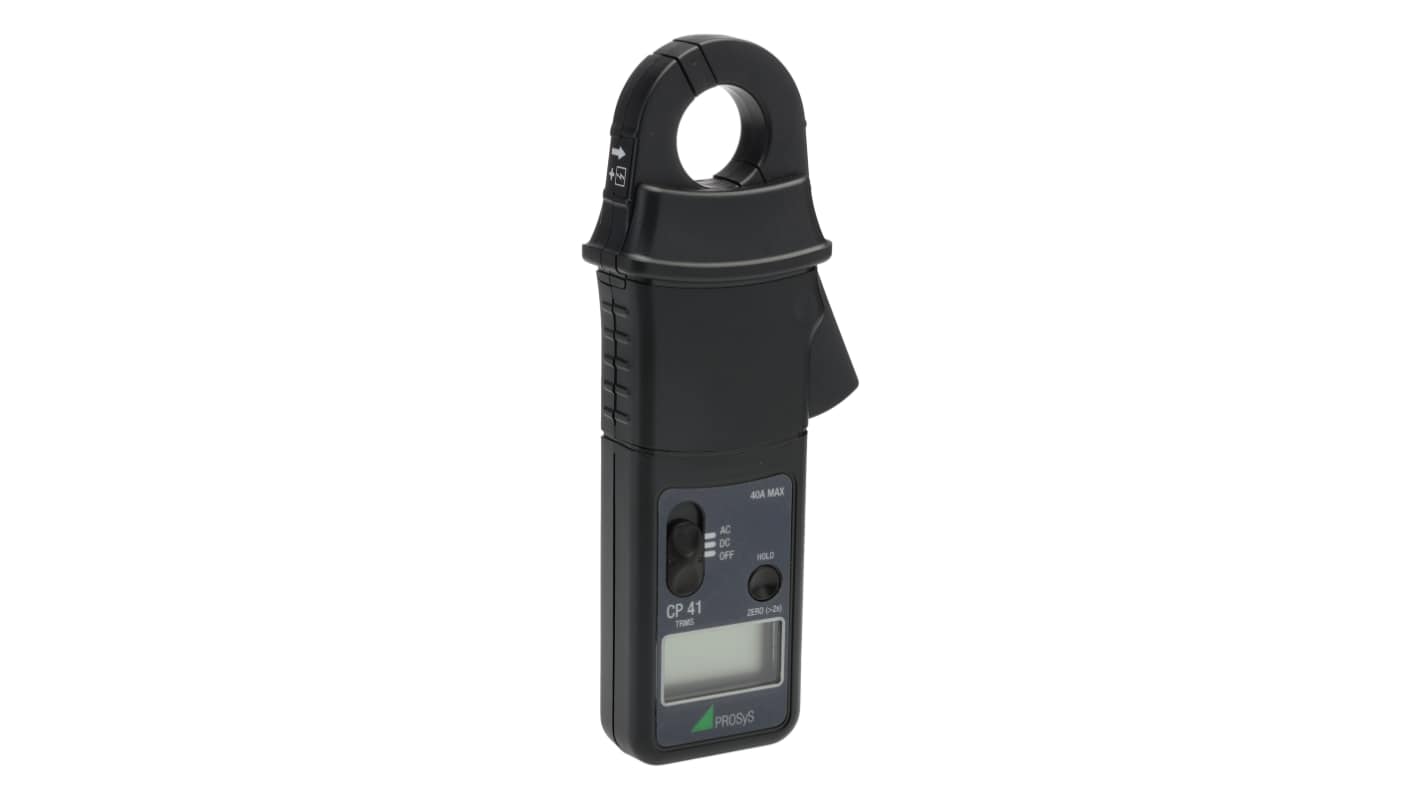

GMC-I Prosys CP41 Clamp Meter, 40A dc, Max Current 40A ac CAT III 300V With UKAS Calibration
- RS Stock No.:
- 705-7117
- Mfr. Part No.:
- CP 41
- Brand:
- GMC-I Prosys
Subtotal (1 unit)*
£507.00
(exc. VAT)
£608.40
(inc. VAT)
FREE delivery for orders over £50.00
- 10 unit(s) ready to ship
Units | Per unit |
|---|---|
| 1 + | £507.00 |
*price indicative
- RS Stock No.:
- 705-7117
- Mfr. Part No.:
- CP 41
- Brand:
- GMC-I Prosys
Select all | Attribute | Value |
|---|---|---|
| Brand | GMC-I Prosys | |
| Absolute Maximum AC Current Measurement | 40A ac | |
| Absolute Maximum DC Current Measurement | 40A dc | |
| Model Number | CP41 | |
| Calibrated | UKAS | |
| AC Current Measurement Resolution | 1mA | |
| DC Current Measurement Resolution | 1mA | |
| Best DC Current Accuracy | ±1% + 5 Digits | |
| Clamp Meter Type | AC/DC Clamp Meter | |
| Best AC Current Accuracy | ±1% +5 digits | |
| Jaw Capacity Busbars | 25mm | |
| True RMS | Yes | |
| Functions Measured | AC Current, DC Current | |
| Weight | 235g | |
| Height | 194mm | |
| Minimum Operating Temperature | 0°C | |
| Battery Life | 15 h | |
| Safety Category Level | CAT III | |
| Display Type | LCD | |
| Maximum Operating Temperature | +50°C | |
| Battery Type | 9V | |
| Safety Category Voltage | 300V | |
| Width | 74mm | |
| Power Source | Battery | |
| Length | 25mm | |
| Dimensions | 25 x 74 x 194mm | |
| Maximum Conductor Size | 25mm | |
| Safety Category | CAT III 300V | |
| Select all | ||
|---|---|---|
Brand GMC-I Prosys | ||
Absolute Maximum AC Current Measurement 40A ac | ||
Absolute Maximum DC Current Measurement 40A dc | ||
Model Number CP41 | ||
Calibrated UKAS | ||
AC Current Measurement Resolution 1mA | ||
DC Current Measurement Resolution 1mA | ||
Best DC Current Accuracy ±1% + 5 Digits | ||
Clamp Meter Type AC/DC Clamp Meter | ||
Best AC Current Accuracy ±1% +5 digits | ||
Jaw Capacity Busbars 25mm | ||
True RMS Yes | ||
Functions Measured AC Current, DC Current | ||
Weight 235g | ||
Height 194mm | ||
Minimum Operating Temperature 0°C | ||
Battery Life 15 h | ||
Safety Category Level CAT III | ||
Display Type LCD | ||
Maximum Operating Temperature +50°C | ||
Battery Type 9V | ||
Safety Category Voltage 300V | ||
Width 74mm | ||
Power Source Battery | ||
Length 25mm | ||
Dimensions 25 x 74 x 194mm | ||
Maximum Conductor Size 25mm | ||
Safety Category CAT III 300V | ||
- COO (Country of Origin):
- GB
CP41 and CP410
AC & DC Current Measurement
True RMS measurements with auto range
High noise rejection ideal for testing AC power distribution control gear and AC/DC inverter drive systems
High external field rejection
High accuracy over full range
Simple push button for data hold and auto zero
Low battery indication on LCD display
Auto power off conserves battery life
EN61010 safety rating CAT III, 300V
Supplied with
