RS PRO IR Thermometer, Phase Rotation Indicator Kit Clamp Meter, 1kA dc, Max Current 1kA ac CAT III 1000 V, CAT IV 600 V

View all Clamp Meters
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO ICM139R Clamp Meter, 1000A dc, Max Current 1000A ac CAT III 1000 V, CAT IV 600 V
RS Stock No.
123-3227

Each

£253.07

(exc. VAT)

£303.68

(inc. VAT)

RS Stock No.:
144-6604
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Absolute Maximum AC Current Measurement

1kA ac

Absolute Maximum DC Current Measurement

1kA dc

Absolute Maximum DC Voltage Measurement

1000V dc

Absolute Maximum Resistance Measurement

400Ω

Model Number

IR Thermometer, Phase Rotation Indicator Kit

AC Current Measurement Resolution

0.1A

DC Current Measurement Resolution

0.1A

Best DC Current Accuracy

±1 % + 3 digit

Clamp Meter Type

AC/DC Clamp Meter

Best AC Current Accuracy

±1 %

Best AC Voltage Accuracy

±1 %

Jaw Capacity Busbars

53 (Dia.)mm

Functions Measured

AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Frequency, Resistance

True RMS

Yes

Best DC Voltage Accuracy

±0.7 %

DC Voltage Measurement Resolution

100mV

Dimensions

90 x 51 x 275mm

Resistance Measurement Resolution

100mΩ

Maximum Operating Temperature

+50°C

Display Type

LCD

Best Resistance Measurement Accuracy

±1 %

Safety Category

CAT III 1000 V, CAT IV 600 V

Battery Type

9V, Alkaline, IEC 6F22, NEDA 1604

Safety Category Voltage

600 V, 1000 V

Safety Category Level

CAT III, CAT IV

Weight

420 (with Holster)g

Battery Life

100 (Alkaline) h

Maximum Conductor Size

51 (Dia.)mm

AC Voltage Measurement Resolution

100mV

Minimum Operating Temperature

0°C

Height

275mm

Power Source

Battery

Width

51mm

Length

90mm

COO (Country of Origin):
TW

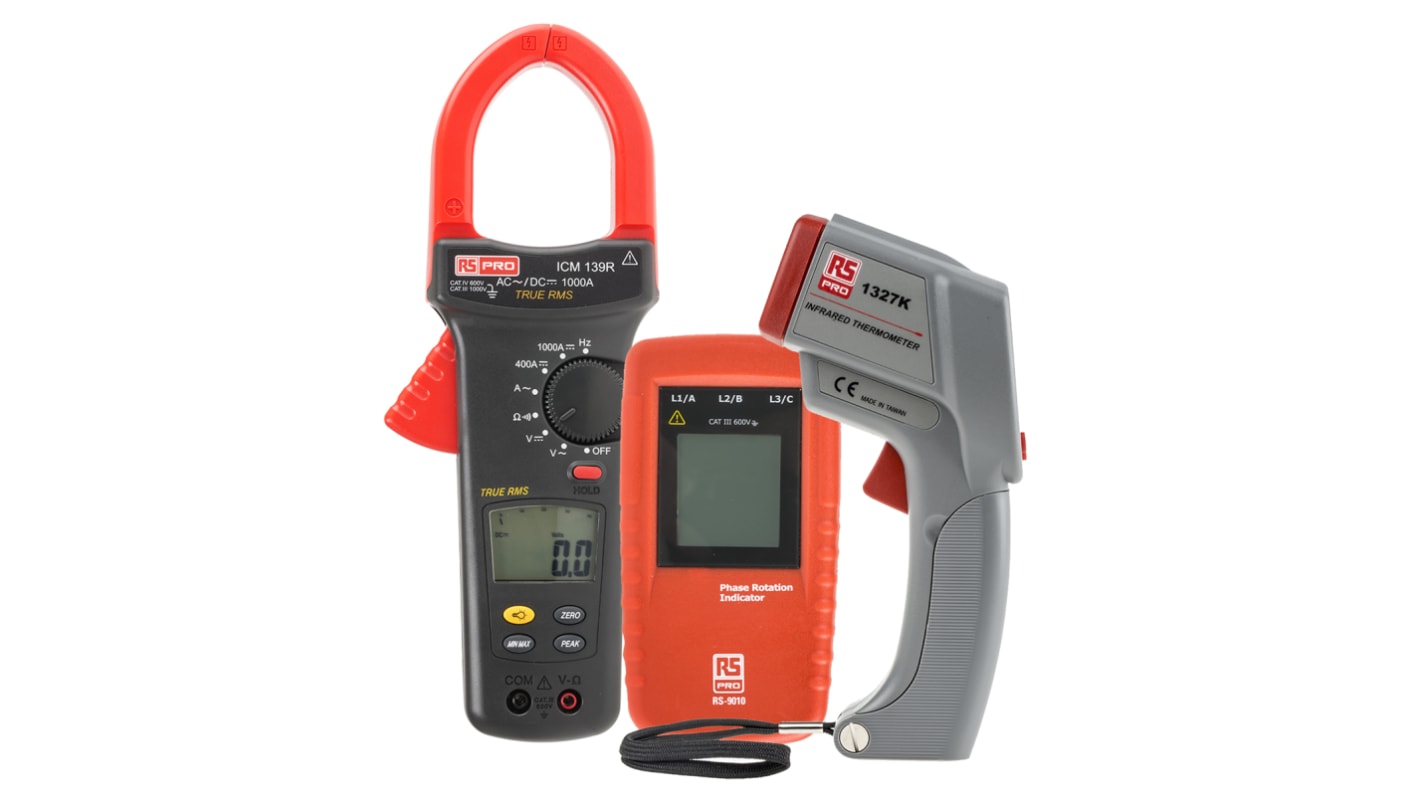

RS Pro ICM139 Clampmeter, RS1327K IR Thermometer and RS9010 Phase Rotation Indicator


Save money when you buy the ICM139 Clampmeter, RS1327K IR Thermometer and the RS9010 Phase Rotation Indicator together in this great value bundle.

RS Pro ICM139R Clampmeter 1233227


RS Pro ICM139R offers high specification performance in a rugged, low-cost unit.

Features and Benefits


4000 Count backlit digital display with analogue bargraph

True RMS reading on ac mode

Nickel Steel alloy jaw mechanism

1000 A AC-DC current measurement

1000 V ac/dc voltage measurement

Resistance and continuity beeper <30 Ω

Display hold and Min Max Function

10 ms peak Hold on ACA and ACV

51 mm diameter conductor jaw capacity

Complies with EN61010 CAT IV 600 V / CAT III 1000 V

RS Pro Remote Temperature Measurement (Non-Contact) Infrared/K Thermometer 1232217


RS Pro 1327K is a pocket-sized, easy-to-use pistol grip IR thermometer. It enables temperature measurement by Infrared non-contact or by using a plug-in type-K thermocouple probe.

The Infrared mode does not rely on physical contact with the object which is to have its temperature taken, but measures the radiated infrared energy emanating from the object. The thermocouple connector accepts a standard liquid, air or surface thermocouple probe, as required to suit the particular application. The Liquid Crystal Display has a backlight function which can assist measurements made in dark places. Other features include reading auto-hold, auto power-off, maximum and minimum readings, alarm levels and adjustable emissivity.

Features and Benefits


IR mode measuring range -35 °C to +500 °C

Type K measuring range -150 °C to +1350 °C"

Data memory (50 measurements) and read function from LCD display

Selectable C° / F° display

Sighting by Laser marker <1 mW (Class 2)

Note: Probe not supplied

RS Pro RS9010 Phase Rotation Indicator LCD 1231933


RS Pro RS9010 is a great value hand held instrument designed to detect the rotary field of 3 phase systems.

Features and Benefits


Nominal Voltage: 40 V to 690 V ac

Frequency Range: 15 Hz to 400 Hz

Current Pickup: 1 mA

Nominal test current (per phase) 1 mA

Electrical safety IEC61010/EN61010, IEC61557-7/EN61557-7

Protection level CAT III 600 V to ground

Protection to IP40

Operating temperature 0°C to 40°C

3 Phase indication

Indication of the phase rotation direction

Clear LCD display


Clampmeter Kits
