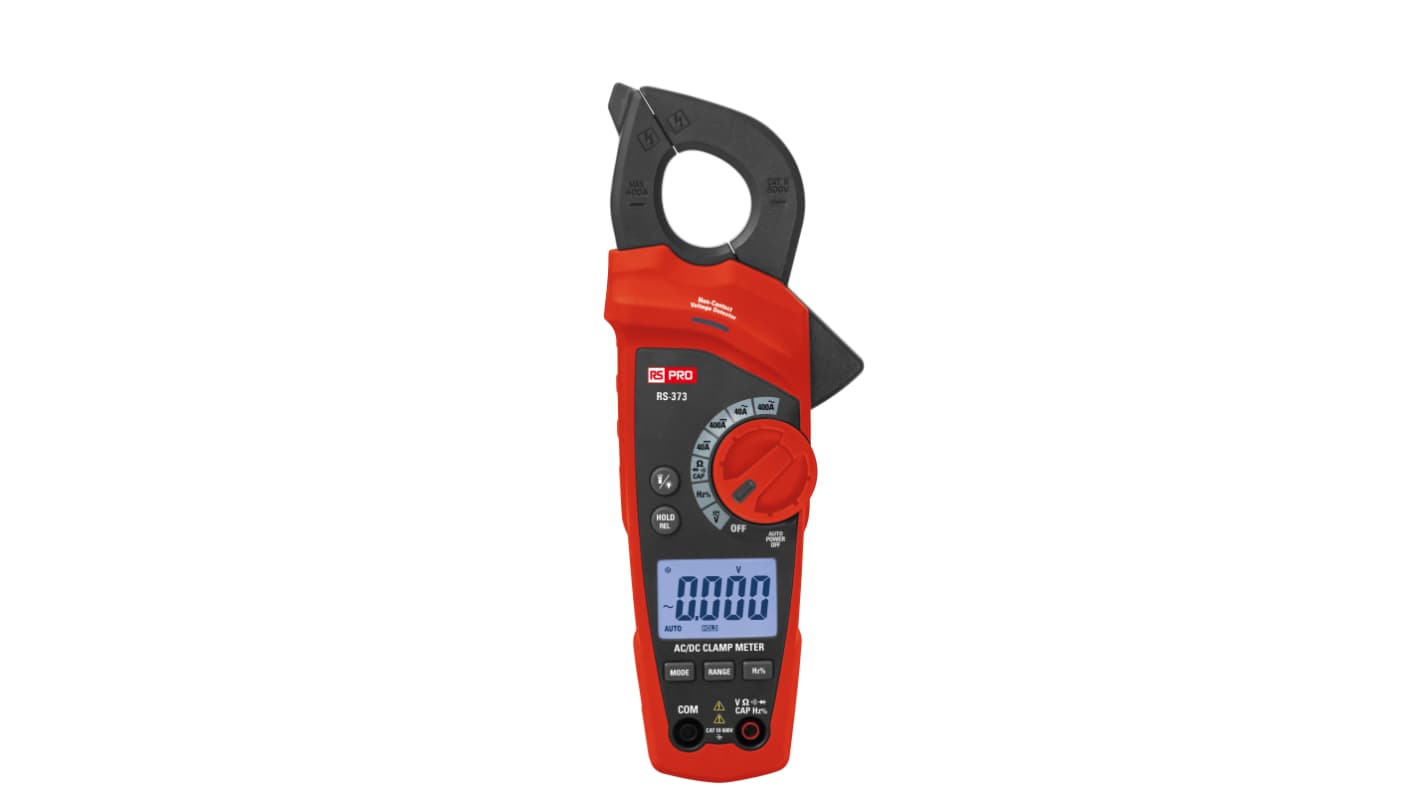

RS PRO Clamp Meter, 400A dc, Max Current 400A ac CAT III 600V
- RS Stock No.:
- 360-187
- Brand:
- RS PRO
Subtotal (1 unit)*
£63.77
(exc. VAT)
£76.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 45 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £63.77 |
*price indicative
- RS Stock No.:
- 360-187
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Absolute Maximum AC Current Measurement | 400A ac | |
| Absolute Maximum DC Current Measurement | 400A dc | |
| Clamp Meter Type | AC/DC Clamp Meter | |
| Jaw Capacity Busbars | 30mm | |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance | |
| Power Source | Battery, Mains | |
| Length | 40mm | |
| Safety Category | CAT III 600V | |
| Display Type | LCD | |
| Maximum Operating Temperature | 40°C | |
| Dimensions | 197 x 70 x 40mm | |
| Safety Category Voltage | 600V | |
| Minimum Operating Temperature | 5°C | |
| Width | 70mm | |
| Height | 197mm | |
| Safety Category Level | CAT III | |
| Weight | 183g | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Absolute Maximum AC Current Measurement 400A ac | ||
Absolute Maximum DC Current Measurement 400A dc | ||
Clamp Meter Type AC/DC Clamp Meter | ||
Jaw Capacity Busbars 30mm | ||
Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance | ||
Power Source Battery, Mains | ||
Length 40mm | ||
Safety Category CAT III 600V | ||
Display Type LCD | ||
Maximum Operating Temperature 40°C | ||
Dimensions 197 x 70 x 40mm | ||
Safety Category Voltage 600V | ||
Minimum Operating Temperature 5°C | ||
Width 70mm | ||
Height 197mm | ||
Safety Category Level CAT III | ||
Weight 183g | ||
- COO (Country of Origin):
- CN
RS PRO AC/DC Clamp Meter, 30mm Jaw Capacity
The RS PRO AC/DC Clamp Meter is a versatile tool designed for measuring AC/DC voltage, current, frequency, duty cycle, resistance, and more. It features a non-contact AC voltage detector and a built-in flashlight, making it ideal for various electrical testing applications. This clamp meter ensures reliable performance with proper use and care.
Features and Benefits
Current measurement: Measures both AC and DC for comprehensive testing
Max. Resolution 10mA: Provides precise readings
LCD display counts 4000: Ensures clear visibility of measurements
Display with backlight: Facilitates use in low-light conditions
Data Hold: Allows retention of measurement data for convenience
Zero Function: Enables easy calibration and accuracy
Auto Power Off: Conserves battery life when not in use
Low battery indication: Alerts when battery replacement is needed
1.2in (30mm) Jaw opening: Accommodates larger conductors
Max. Resolution 10mA: Provides precise readings
LCD display counts 4000: Ensures clear visibility of measurements
Display with backlight: Facilitates use in low-light conditions
Data Hold: Allows retention of measurement data for convenience
Zero Function: Enables easy calibration and accuracy
Auto Power Off: Conserves battery life when not in use
Low battery indication: Alerts when battery replacement is needed
1.2in (30mm) Jaw opening: Accommodates larger conductors
Applications
Electrical maintenance
HVAC systems
Industrial equipment testing
Automotive diagnostics
HVAC systems
Industrial equipment testing
Automotive diagnostics
Additional Information
Safety Category: CAT III 600 V
Power Source: Battery
Power Source: Battery
Mains
Dimensions: 197.0 x 70.0 x 40.0 mm
Dimensions: 197.0 x 70.0 x 40.0 mm
