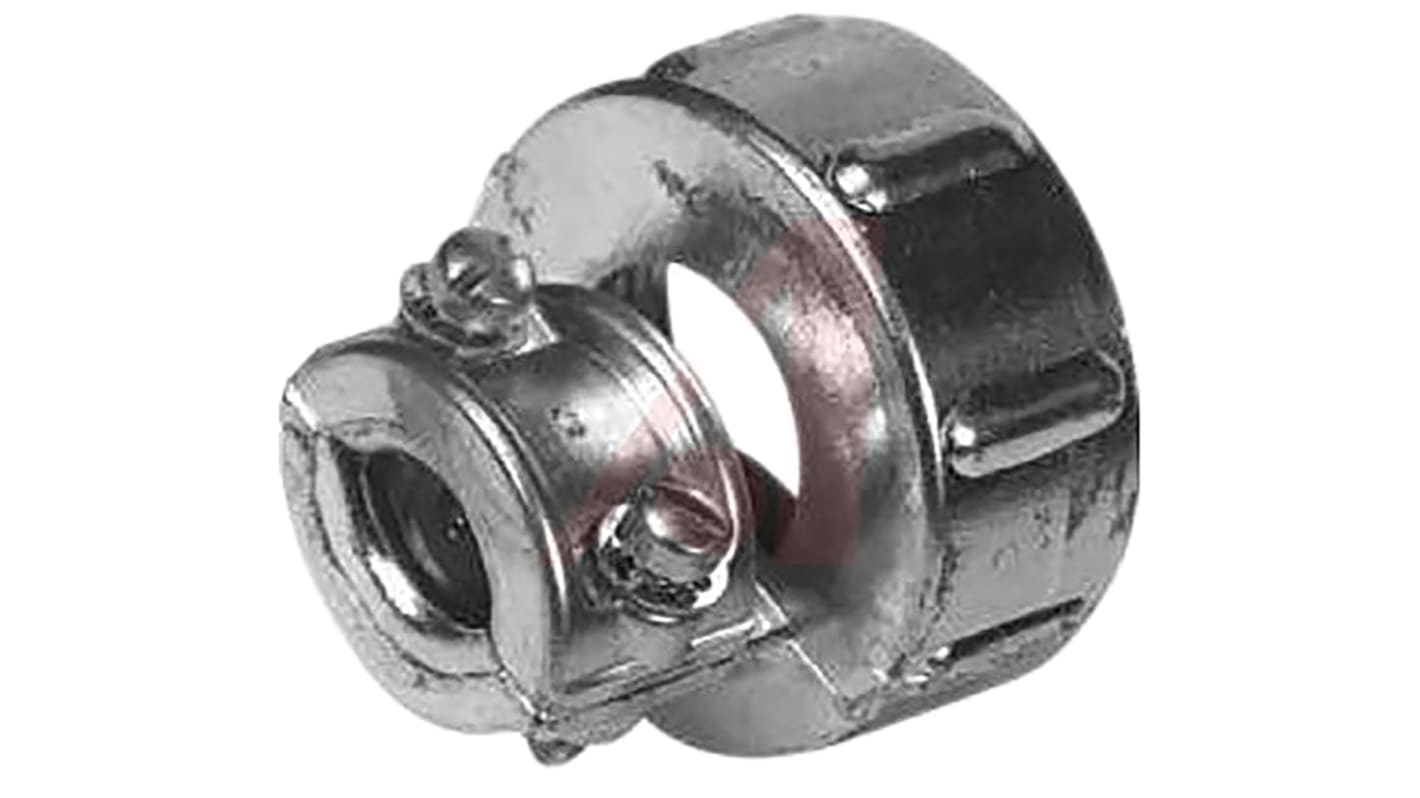

Amphenol, 97Size 16, 16S Straight Cable Clamp, For Use With Jacketed Cable, Wires Protected by Tubing

  • RS Stock No. 873-1991
  • Mfr. Part No. 97-3057-8(621)
  • Brand Amphenol
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Amphenol 97 Series Cable Clamps MS3057

Amphenol 97 series cable clamps for jacket surrounded cable or wires protected by tubing.

Amphenol - 97 Series

Amphenol's 97 Connector series provide the interconnection solution for low cost, general duty applications. The connectors are widely used in a range of applications such as factory automation, robotics, machine tooling, welding equipment and medical equipment. Shell components are fabricated from high grade aluminium alloy to provide strength andl protection. The series offers a wide range of shell styles. contact patterns and accessory options.

Low cost, general duty applications
Solder or crimp termination
Available in a range of shell styles and insert patterns
Shell components are fabricated from high grade aluminium alloy
Wide selection of connector finishes - cadmium or non-cadmium (environmentally friendly zinc alloy)
Available accessories for both individual wire seal and jacketed cable
Thread coupling
Hard dielectric inserts

Approvals

UL recognized and CSA recognized

Specifications
Attribute Value
For Use With Jacketed Cable, Wires Protected by Tubing
Shell Size 16, 16S
Body Orientation Straight
Thread Size 7/8 in - 20
Length 28.58mm
Series 97
2 In stock - FREE next working day delivery available
Price Each
£ 8.31
(exc. VAT)
£ 9.97
(inc. VAT)
Units
Per unit
1 +
£8.31
