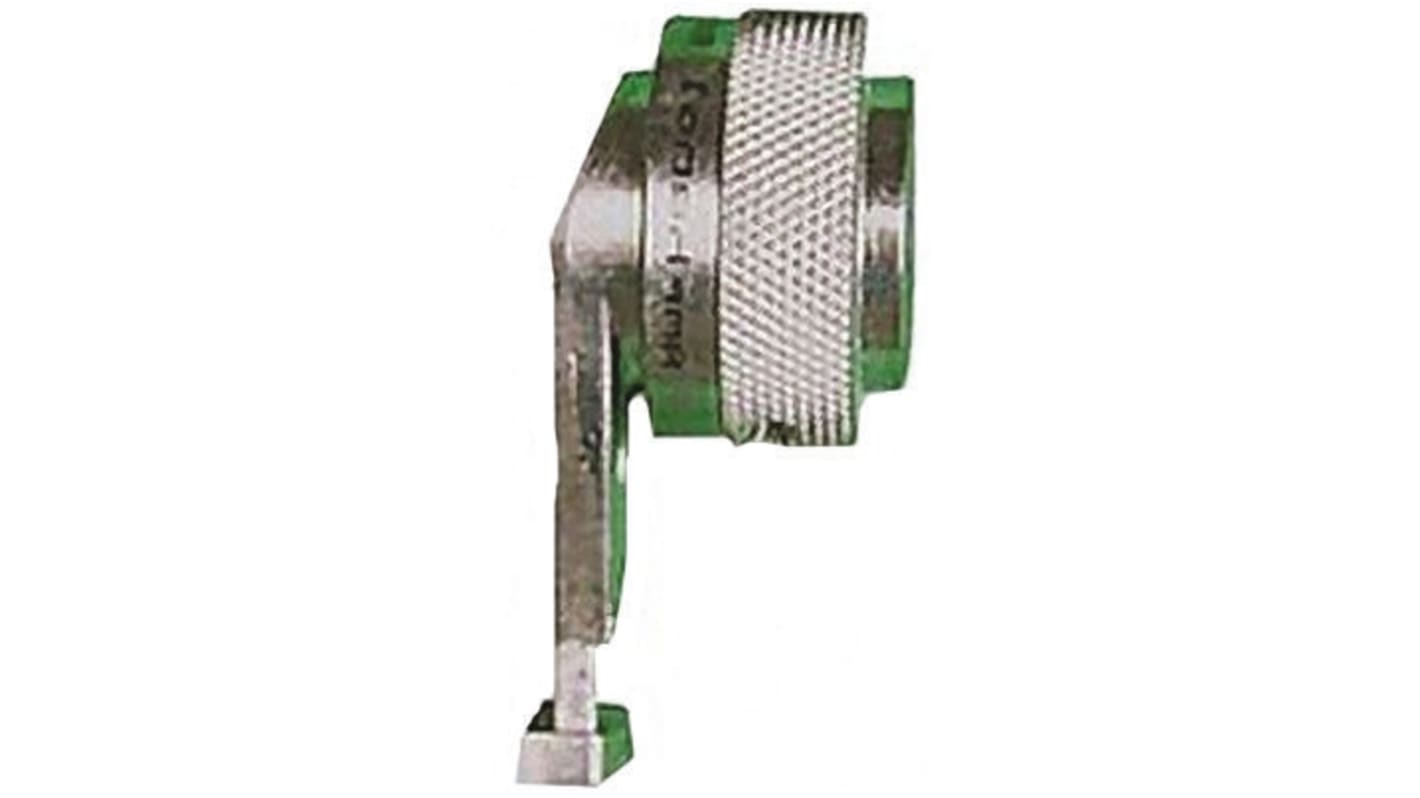

Amphenol, BQ1Size 13 Right Angle Backshell, For Use With MIL-C 38999 Connector Series III, MIL-C 38999 Connector Series

  • RS Stock No. 689-8812
  • Mfr. Part No. BQ1ARL12999XY
  • Brand Amphenol
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

Mil-C 38999 BQ1 Series– Quick Clamp Backshell

From Amphenol, this Strain Relief Clamp is for use with Mil-C 38999 Series Connector III and Connector IV. The clamp keeps the cable tidy after termination and is ideal for use when environmental protection is not a concern and weight saving a major consideration.

● Aluminium Alloy, Zinc Cobalt plated
● Straight and 90 degree available
● Cost effective
● Weight save
● Rohs compliant

MIL-C-38999 Accessories

Specifications
Attribute Value
For Use With MIL-C 38999 Connector Series III, MIL-C 38999 Connector Series IV
Shell Size 13
Body Orientation Right Angle
Housing Material Aluminium Alloy, Steel
Length 25.15mm
Series BQ1
Available to back order for despatch 05/01/2021
Price Each
£ 21.14
(exc. VAT)
£ 25.37
(inc. VAT)
Units
Per unit
1 - 9
£21.14
10 - 24
£20.07
25 +
£19.03
