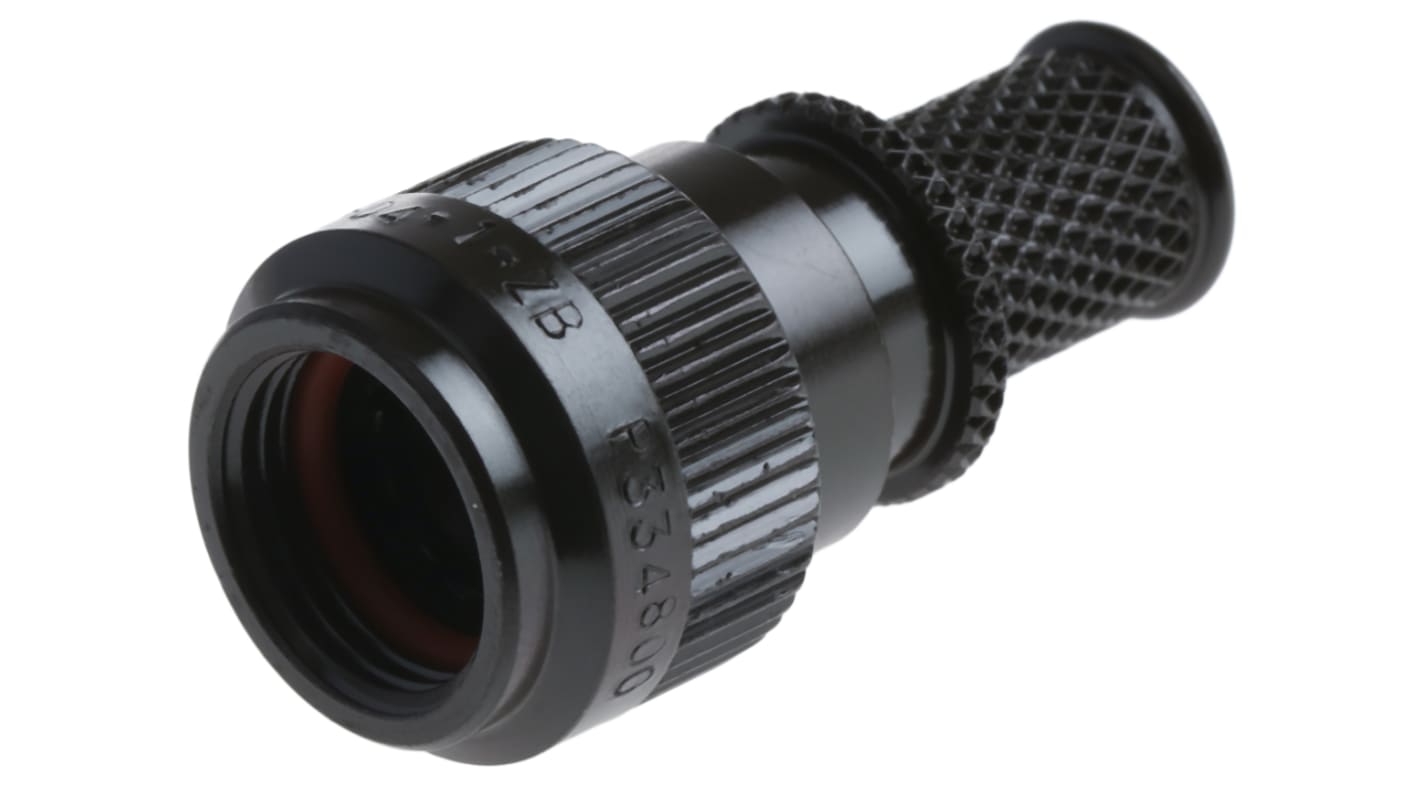

Polamco 91 Series, Size 9 Straight Backshell, For Use With MIL-D 38999 Professional Threaded Connector

  • RS Stock No. 510-8367
  • Mfr. Part No. 91SH1-09-04-1-ZB
  • Brand Polamco
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

91 Series Spin Coupling Backshells, Polamco

Dual purpose spin coupling backshells may be used in conjunction with heatshrink boots or spring clips (for example, stock no. 241-1519) to terminate braided cable jacketing. The threaded coupling end rotates separately from the body so that cable is not twisted upon removal of backshell from the connector body. The mating interface of these backshells features anti-rotation teeth and a sealing 'O' ring.

Note

Series 1 fits all 62GB, AB05 and MIL-C-26482(US) solder connectors,Series 2 fits the commercial threaded (MIL-C-5015) connectors,Series 3 fits the industrial bayonet (MIL-C-5015) connectors,Series 4 fits professional threaded (MILD38999) connectors

Specifications
Attribute Value
For Use With MIL-D 38999 Professional Threaded Connector
Shell Size 9
Body Orientation Straight
Housing Material Aluminium Alloy
Spring Clip Size 4
Thread Size M12 x 1
Length 30mm
Series 91
163 In stock for FREE next working day delivery
Price Each
£ 12.96
(exc. VAT)
£ 15.55
(inc. VAT)
Units
Per unit
1 - 4
£12.96
5 - 24
£11.66
25 - 49
£11.08
50 - 99
£10.53
100 +
£10.00
