Schneider Electric ComPact Trip Unit for use with Compact NSX 100/160/250 circuit breakers

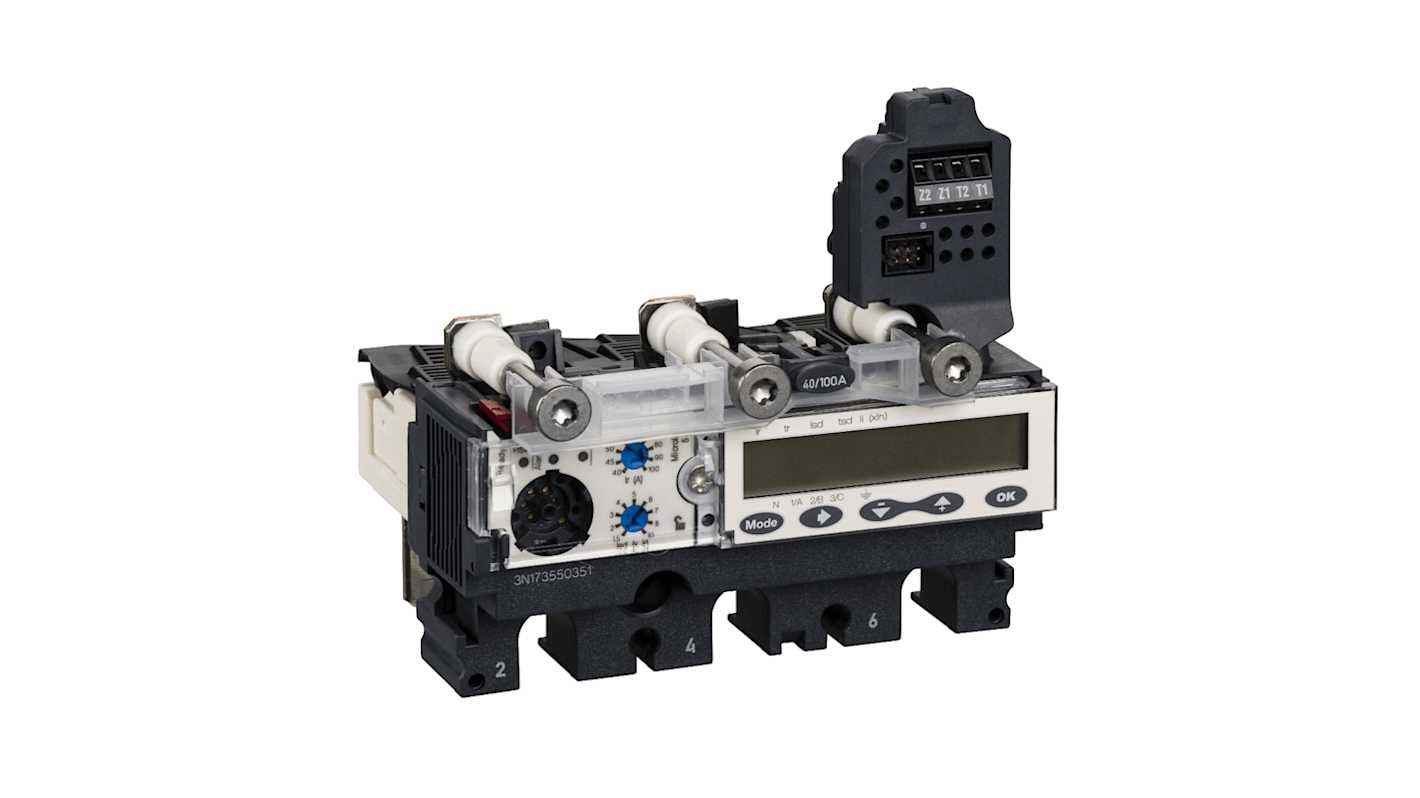

This Schneider Electric Micrologic 5.2 E (Energy) is a 3 poles 3d electronic trip unit used on Compact NSX 100/160/250 circuit breakers. This 100A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits.

Trip unit rated current 100 A at 40 °C
Rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
