100Ω RS PRO Surface Mount Chip Balun
- RS Stock No.:
- 884-2247
- Brand:
- RS PRO
Discontinued product
- RS Stock No.:
- 884-2247
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

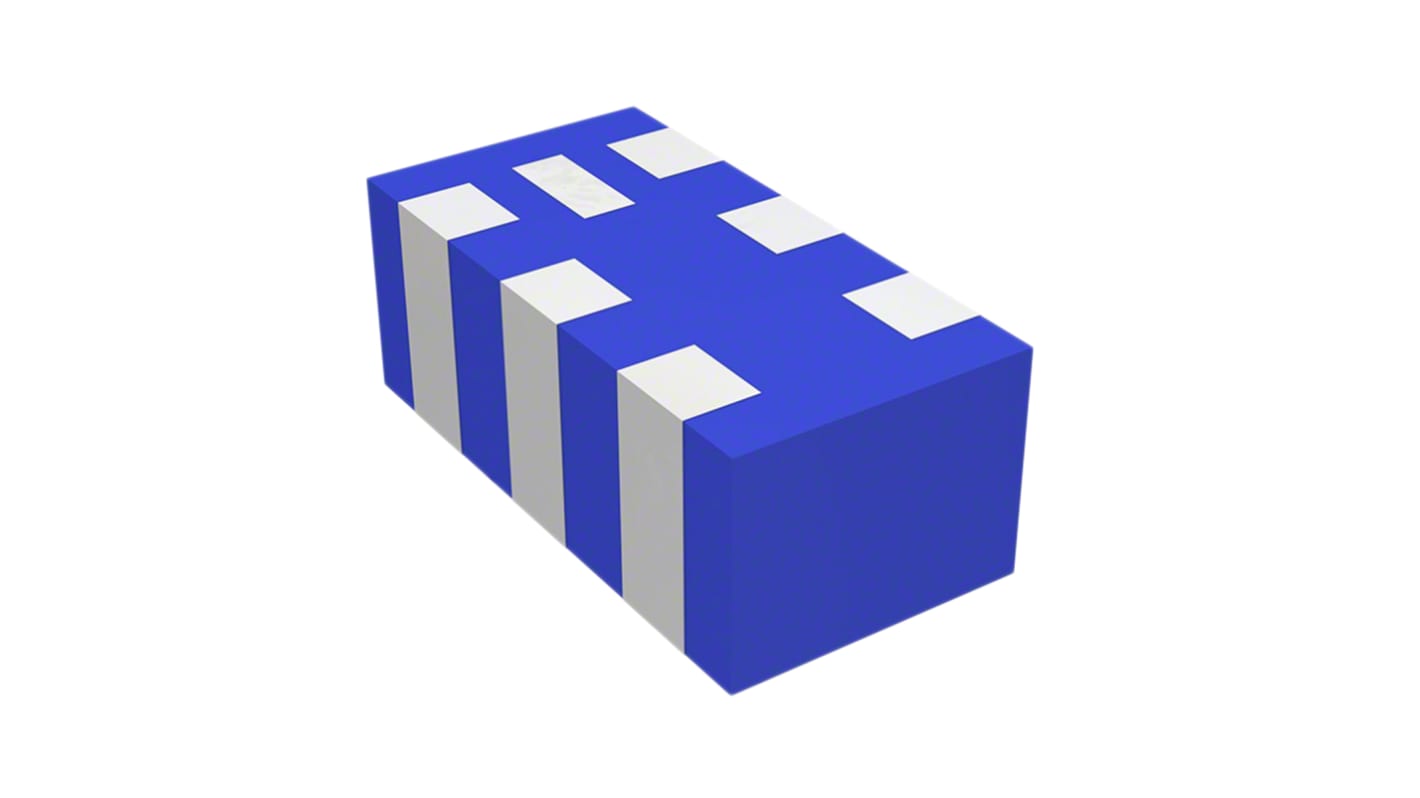

RS Multilayer Chip Baluns, RFBLN Series, 2012 (0805)
RS Pro range offers RFBLN Series, 2012 (0805) Multilayer Chip Baluns with a
miniature footprint: 2.0 x 1.2 x 0.9 mm³.
2 different working band devices Integrated into one package; GSM 850/ GSM 900/ DCS1800/ PCS1900 / TD SCDMA Bands B34 Band Working Frequency
miniature footprint: 2.0 x 1.2 x 0.9 mm³.
2 different working band devices Integrated into one package; GSM 850/ GSM 900/ DCS1800/ PCS1900 / TD SCDMA Bands B34 Band Working Frequency
Features and Benefits
Low Insertion Loss
Low in band Amplitude and Phase imbalance enable high performance wireless system operation
Low Temperature Co-fired Ceramic components
Second harmonic suppression
ISM band suppression
Low in band Amplitude and Phase imbalance enable high performance wireless system operation
Low Temperature Co-fired Ceramic components
Second harmonic suppression
ISM band suppression
Applications:
GSM 850/ GSM 900/ DCS1800/ PCS1900 /TD2025 Band RF and Unbalance to balance conversion
Specifications
Attribute | Value |
|---|---|
| Unbalance Impedance | 50Ω |
| Balance Impedance | 100Ω |
| Maximum Insertion Loss | 1dB |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Dimensions | 2 x 1.25 x 0.95mm |
| Height | 0.95mm |
| Length | 2mm |
| Width | 1.25mm |
| Maximum Frequency | 2.45GHz |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
