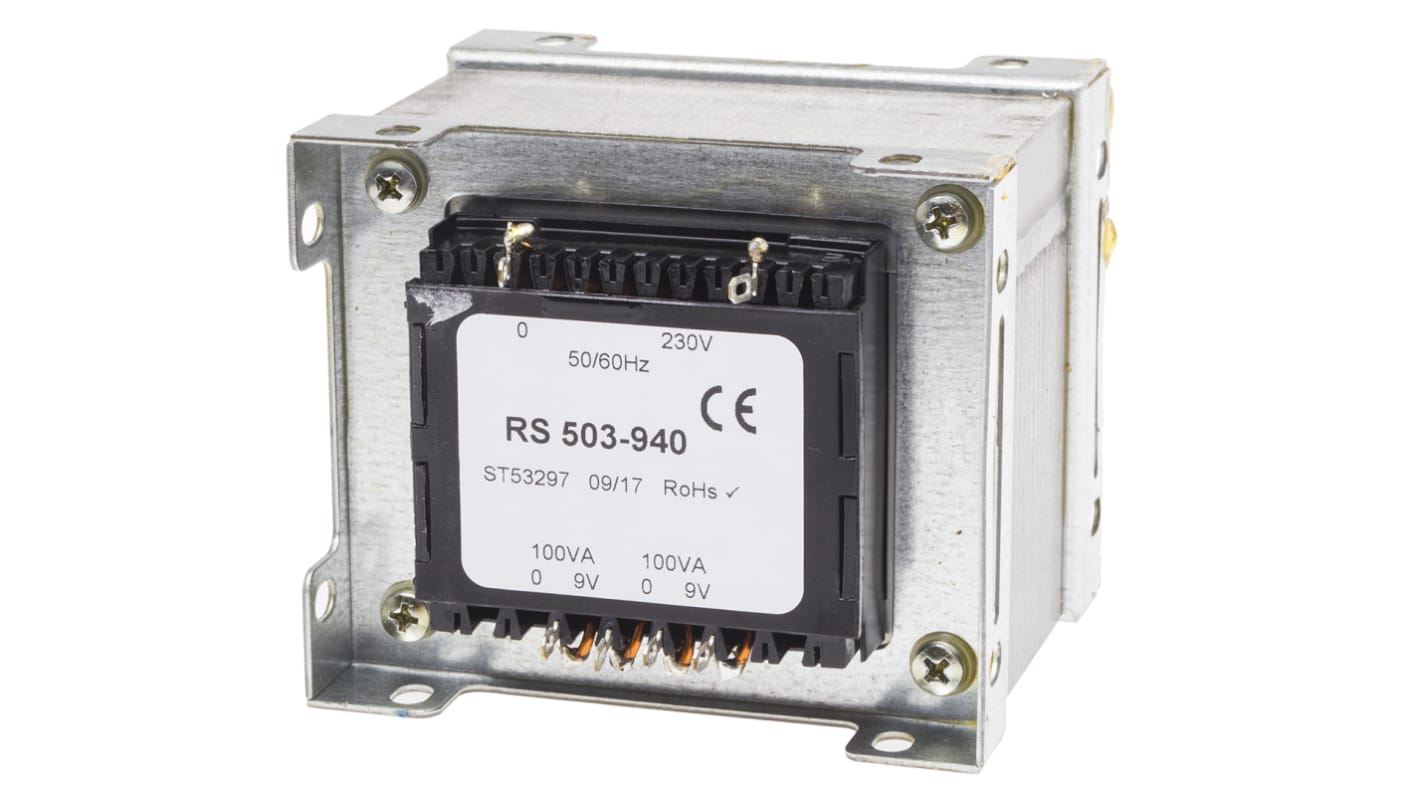

RS PRO 200VA 2 Output Chassis Mounting Transformer, 9V ac

RS PRO
Technical Reference
RS Pro Datasheet
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PL
Product Details

Chassis Mount Frame 75VA to 200VA

The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.

Optional terminal shrouds for 75VA and 100VA(503-928)

Approvals

8888

Standards

BS3535; EN 60 742

Laminated Frame 230Vac Primary 75VA to 200VA (Multi Tapped)

Chassis mounting frame construction low voltage mains transformers with a single 230Vac 50/60Hz primary winding.

Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Multi-hole frame fixing
Solder tag terminations
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742

Specifications
Attribute Value
Primary Voltage Rating 230V ac
Secondary Voltage Rating 9V ac
Power Rating 200VA
Number of Outputs 2
Mounting Type Chassis
Length 100mm
Width 92mm
Depth 82mm
Dimensions 100 x 92 x 82mm
Fixing Hole Diameter 5.5 x 8.5mm
Weight 2.8kg
Minimum Operating Frequency 50Hz
Maximum Operating Frequency 60Hz
8 In stock for FREE next working day delivery
Price Each
£ 37.35
(exc. VAT)
£ 44.82
(inc. VAT)
Units
Per unit
1 - 24
£37.35
25 +
£31.99
