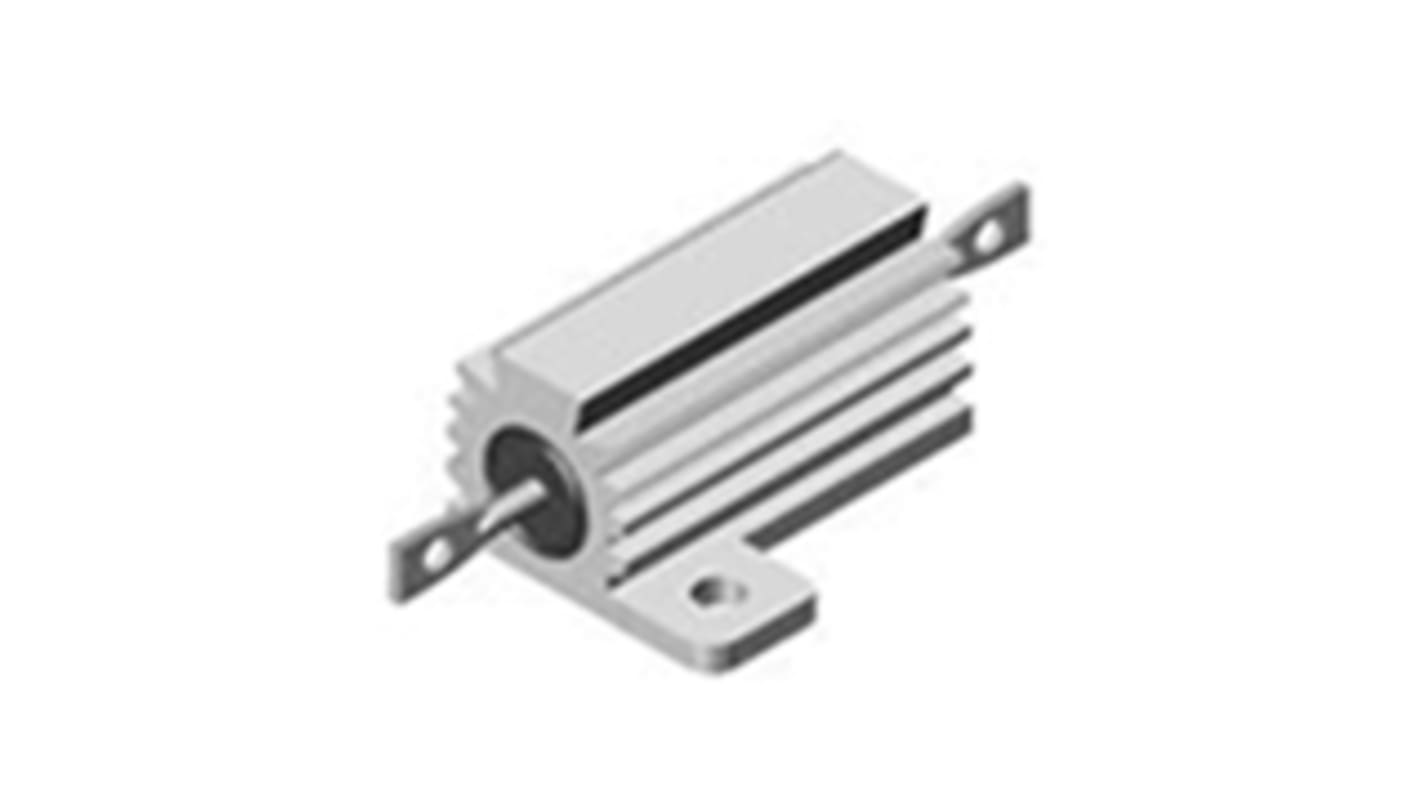

Vishay, 3Ω 50W Wire Wound Panel Mount Resistor RH503R000JS03 ±5%
- RS Stock No.:
- 846-0021
- Mfr. Part No.:
- RH503R000JS03
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 10 units)*
£94.47
(exc. VAT)
£113.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 10 | £9.447 | £94.47 |
| 20 - 40 | £9.205 | £92.05 |
| 50 + | £8.975 | £89.75 |
*price indicative
- RS Stock No.:
- 846-0021
- Mfr. Part No.:
- RH503R000JS03
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Resistance | 3Ω | |
| Power Rating | 50W | |
| Series | RH | |
| Tolerance | ±5% | |
| Technology | Wire Wound | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +250°C | |
| Minimum Temperature Coefficient | -50ppm/°C | |
| Maximum Temperature Coefficient | +50ppm/°C | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Resistance 3Ω | ||
Power Rating 50W | ||
Series RH | ||
Tolerance ±5% | ||
Technology Wire Wound | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +250°C | ||
Minimum Temperature Coefficient -50ppm/°C | ||
Maximum Temperature Coefficient +50ppm/°C | ||
- COO (Country of Origin):
- CZ
50 Watt RH050 Series ±1%
The Vishay RH050 series wirewound chassis mount resistor has a complete welded and moulded construction for total environmental protection in aluminium housing. These resistors mount directly onto a chassis to utilise heat-sink effect. This range of wirewound resistors offers high stability at conventional power ratings and flat marking surface for easy identification.
Features and Benefits
Mounts on chassis to utilize heat-sink effect
Moulded construction for total environmental protection
High Stability <0.05% Year
Resistance Tolerance 1%
Moulded construction for total environmental protection
High Stability <0.05% Year
Resistance Tolerance 1%
Note
Power rating is based on resistor mounted on a 300x300x1.5mm aluminium panel; unmounted rating is 20W @ 25°C. See manufacturer's data for more information regarding power ratings.
