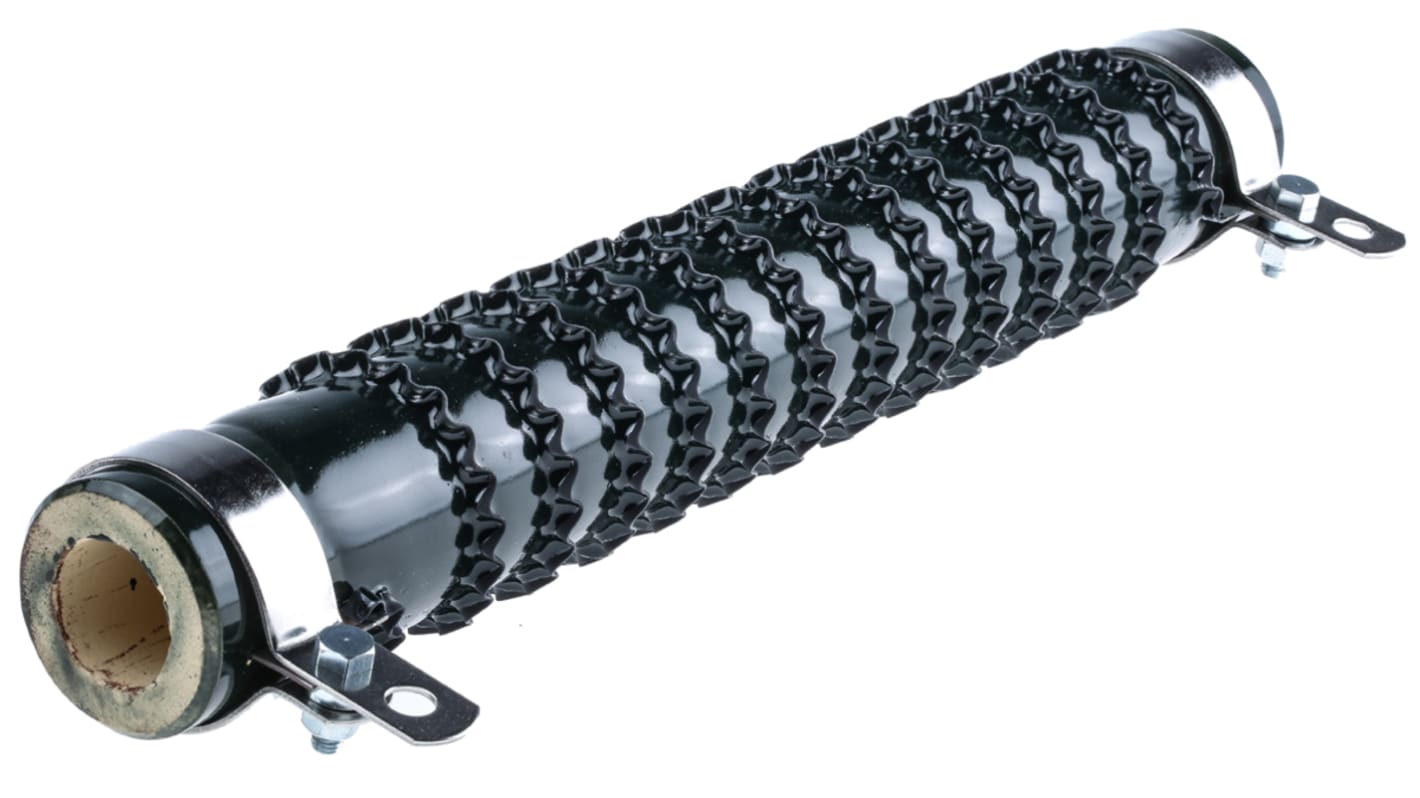

Vishay, 470mΩ 1kW Wire Wound Chassis Mount Resistor RSO50373AR470KB01 ±10%
- RS Stock No.:
- 788-7860
- Mfr. Part No.:
- RSO50373AR470KB01
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£561.67
(exc. VAT)
£674.00
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 4 left, ready to ship
- Final 30 unit(s) shipping from 23 October 2025
Units | Per unit |
|---|---|
| 1 - 1 | £561.67 |
| 2 + | £550.44 |
*price indicative
- RS Stock No.:
- 788-7860
- Mfr. Part No.:
- RSO50373AR470KB01
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Resistance | 470mΩ | |
| Power Rating | 1kW | |
| Series | RSO50 | |
| Package/Case | Tubular | |
| Tolerance | ±10% | |
| Technology | Wire Wound | |
| Termination Style | Screw | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +450°C | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Resistance 470mΩ | ||
Power Rating 1kW | ||
Series RSO50 | ||
Package/Case Tubular | ||
Tolerance ±10% | ||
Technology Wire Wound | ||
Termination Style Screw | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +450°C | ||
200 Watt → 1000 Watt RSO Series
These resistors feature a very high power rating due to the corrugated tape wound over the core
Enamel sealed to provide insulation and secure the turns in position
Excellent resistance to heat, shock and electrical overload
Mounting brackets supplied separately
Enamel sealed to provide insulation and secure the turns in position
Excellent resistance to heat, shock and electrical overload
Mounting brackets supplied separately
