- RS Stock No.:
- 490-4827
- Mfr. Part No.:
- RUG-Z 10mOHM/0.1%/1PPM/DEGC
- Brand:
- PCN

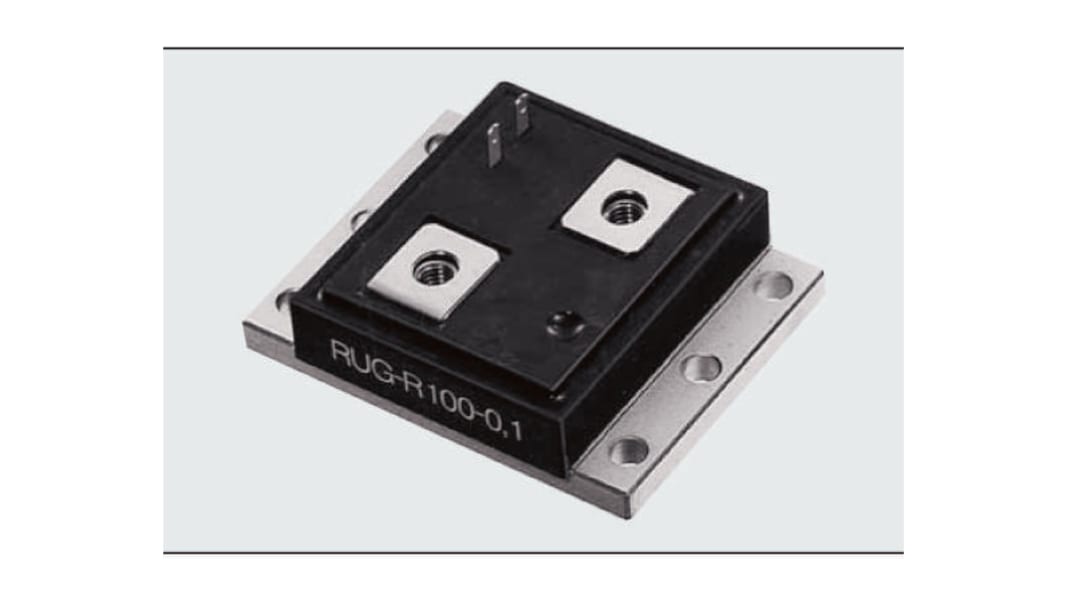

Image representative of range
View all Chassis Mount Resistors
13 In stock for delivery within 5 working days
Price Each
£2,869.35
(exc. VAT)
£3,443.22
(inc. VAT)
Units | Per unit |
1 + | £2,869.35 |
- RS Stock No.:
- 490-4827
- Mfr. Part No.:
- RUG-Z 10mOHM/0.1%/1PPM/DEGC
- Brand:
- PCN
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
Product Details
ISA-PLAN precision shunt resistor, RUG-Z Series
Metal-plated high precision current-detection resistor with heat dissipation function (rear surface metal plate)
Outstanding temperature characteristics even at high electrical load of 250 W
Outstanding temperature characteristics even at high electrical load of 250 W

Specifications
Attribute | Value |
---|---|
Resistance | 10mΩ |
Power Rating | 250W |
Series | RUG-Z |
Package/Case | Planar |
Tolerance | ±0.1% |
Technology | Metal Foil |
Minimum Operating Temperature | -55°C |
Maximum Operating Temperature | +170°C |
Minimum Temperature Coefficient | -1ppm/°C |
Maximum Temperature Coefficient | +1ppm/°C |
