Arcol, 50Ω 50W Wire Wound Chassis Mount Resistor HS50E3 50R F M145 ±1%
- RS Stock No.:
- 195-4130
- Mfr. Part No.:
- HS50E3 50R F M145
- Brand:
- Arcol
Bulk discount available
Subtotal (1 bag of 30 units)*
£205.56
(exc. VAT)
£246.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 90 unit(s) shipping from 27 October 2025
- Plus 999,999,900 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 30 - 30 | £6.852 | £205.56 |
| 60 - 60 | £6.235 | £187.05 |
| 90 - 120 | £5.653 | £169.59 |
| 150 + | £4.865 | £145.95 |
*price indicative
- RS Stock No.:
- 195-4130
- Mfr. Part No.:
- HS50E3 50R F M145
- Brand:
- Arcol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol | |
| Resistance | 50Ω | |
| Power Rating | 50W | |
| Series | HS50 | |
| Package/Case | Aluminium Housed | |
| Tolerance | ±1% | |
| Technology | Wire Wound | |
| Termination Style | Clamp | |
| Minimum Temperature Coefficient | -100ppm/°C | |
| Maximum Temperature Coefficient | +100ppm/°C | |
| Dimensions | 49.1 x 28 x 14.8mm | |
| Overall Width | 28mm | |
| Overall Height | 14.8mm | |
| Overall Length | 49.1mm | |
Select all | ||
|---|---|---|
Brand Arcol | ||
Resistance 50Ω | ||
Power Rating 50W | ||
Series HS50 | ||
Package/Case Aluminium Housed | ||
Tolerance ±1% | ||
Technology Wire Wound | ||
Termination Style Clamp | ||
Minimum Temperature Coefficient -100ppm/°C | ||
Maximum Temperature Coefficient +100ppm/°C | ||
Dimensions 49.1 x 28 x 14.8mm | ||
Overall Width 28mm | ||
Overall Height 14.8mm | ||
Overall Length 49.1mm | ||
- COO (Country of Origin):
- GB

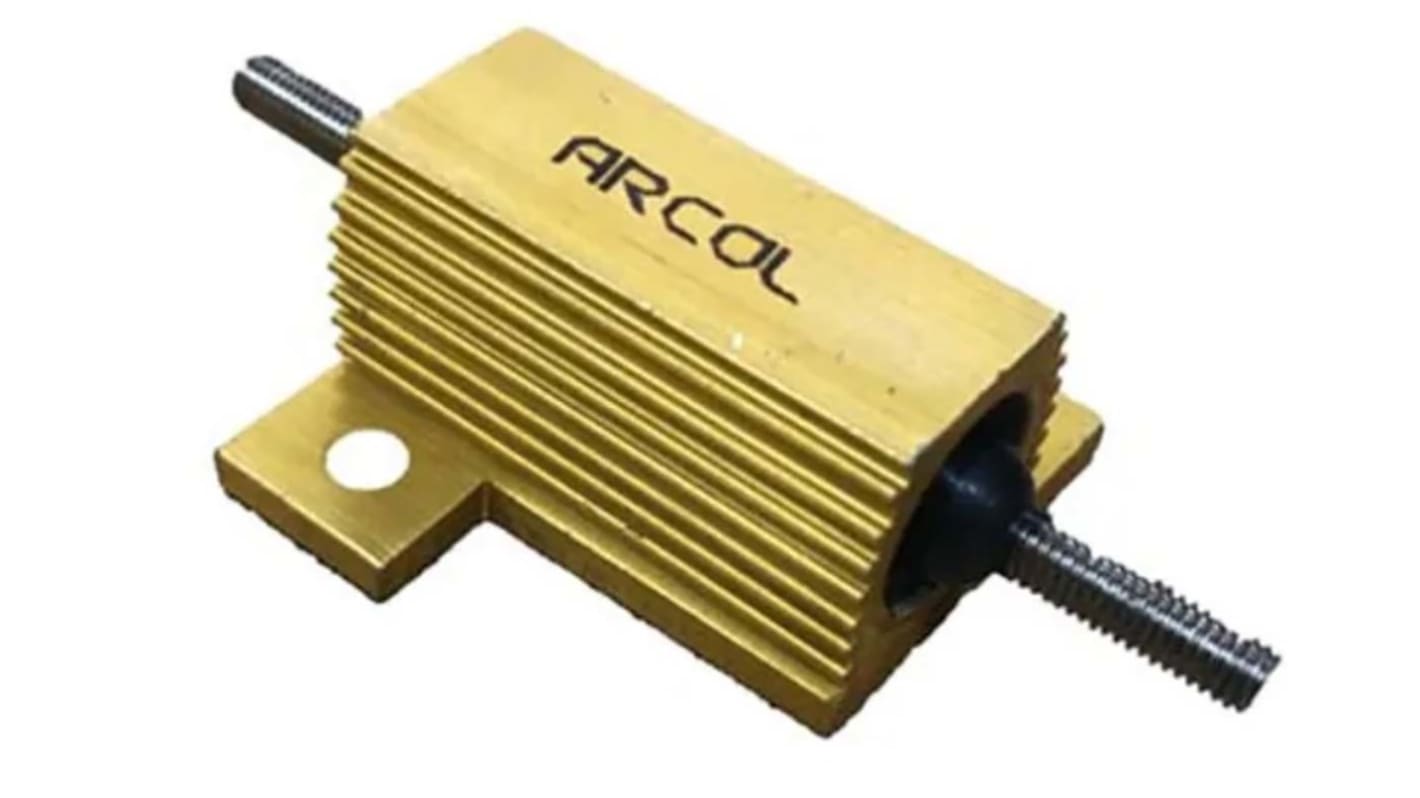

50 watt aluminium housed power resistor. Designed for direct heatsink mounting with thermal compound to achieve maximum performance.
High Power to volume
Wound to maximise High Pulse Capability
Values from R005 to 100K
Wound to maximise High Pulse Capability
Values from R005 to 100K
