RS PRO, 27Ω 600W Wire Wound Chassis Mount Resistor ±5%
- RS Stock No.:
- 185-2351
- Brand:
- RS PRO
Save 28% when you buy 40 units
Subtotal (1 unit)*
£88.77
(exc. VAT)
£106.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship
- Plus 20 unit(s) shipping from 04 March 2026
- Plus 999,999,961 unit(s) shipping from 10 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £88.77 |
5 - 9 | £82.55 |
10 - 19 | £76.33 |
20 - 39 | £70.12 |
40 + | £63.04 |
*price indicative
- RS Stock No.:
- 185-2351
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Resistance | 27Ω | |
Power Rating | 600W | |
Series | R600 | |
Package/Case | Aluminium Housed | |
Tolerance | ±5% | |
Technology | Wire Wound | |
Termination Style | Wire Lead | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +250°C | |
Minimum Temperature Coefficient | -200ppm/°C | |
Maximum Temperature Coefficient | +200ppm/°C | |
Dimensions | 335 x 60 x 30mm | |
Overall Width | 60mm | |
Overall Height | 30mm | |
Overall Length | 335mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Resistance 27Ω | ||
Power Rating 600W | ||
Series R600 | ||
Package/Case Aluminium Housed | ||
Tolerance ±5% | ||
Technology Wire Wound | ||
Termination Style Wire Lead | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +250°C | ||
Minimum Temperature Coefficient -200ppm/°C | ||
Maximum Temperature Coefficient +200ppm/°C | ||
Dimensions 335 x 60 x 30mm | ||
Overall Width 60mm | ||
Overall Height 30mm | ||
Overall Length 335mm | ||
- COO (Country of Origin):
- IN

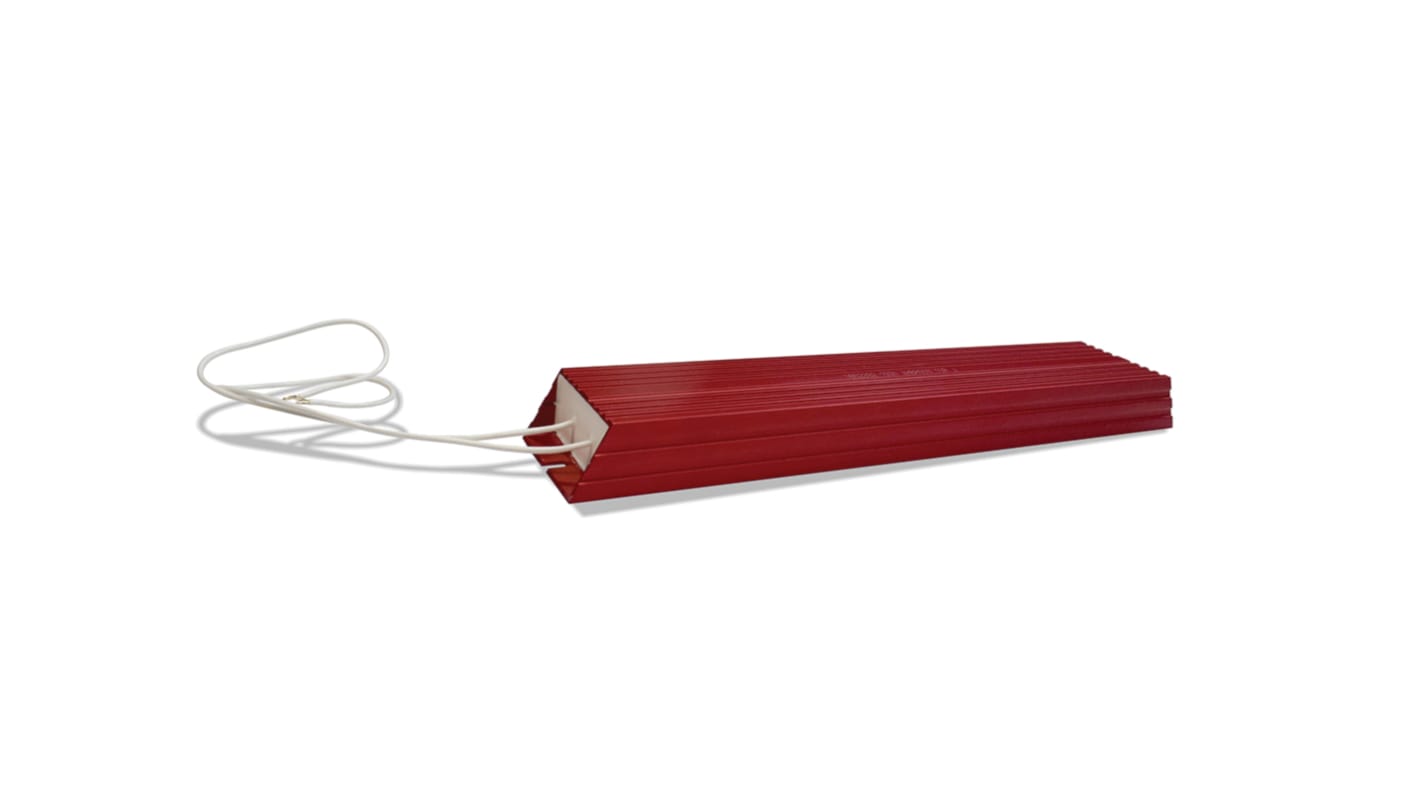

RS PRO Braking Resistor
The RS PRO R600 series aluminium housed metal-clad braking resistor has a resistance of 27ohm and power rating value of 600W. Its dimensions are 335mm x 60mm x 30mm (L x W x H). This metal encased braking resistor is designed for direct heat sink attachment.
Features and Benefits
• High power density
• Heat sink mountable for increased power dissipation
• Operating temperature ranges between -25°C and 250°C
• Temperature coefficient ranges between -200ppm/°C and 200ppm/°C
• Tolerance: ±5%
• Dielectric strength: 1500VAC-rms for 1 minute
• Humidity: 40°C, 90% Rh, 240 hours
• Minimum insulation resistance: 20Mohm
• Heat sink mountable for increased power dissipation
• Operating temperature ranges between -25°C and 250°C
• Temperature coefficient ranges between -200ppm/°C and 200ppm/°C
• Tolerance: ±5%
• Dielectric strength: 1500VAC-rms for 1 minute
• Humidity: 40°C, 90% Rh, 240 hours
• Minimum insulation resistance: 20Mohm
Certifications
• UL approved (cables)
