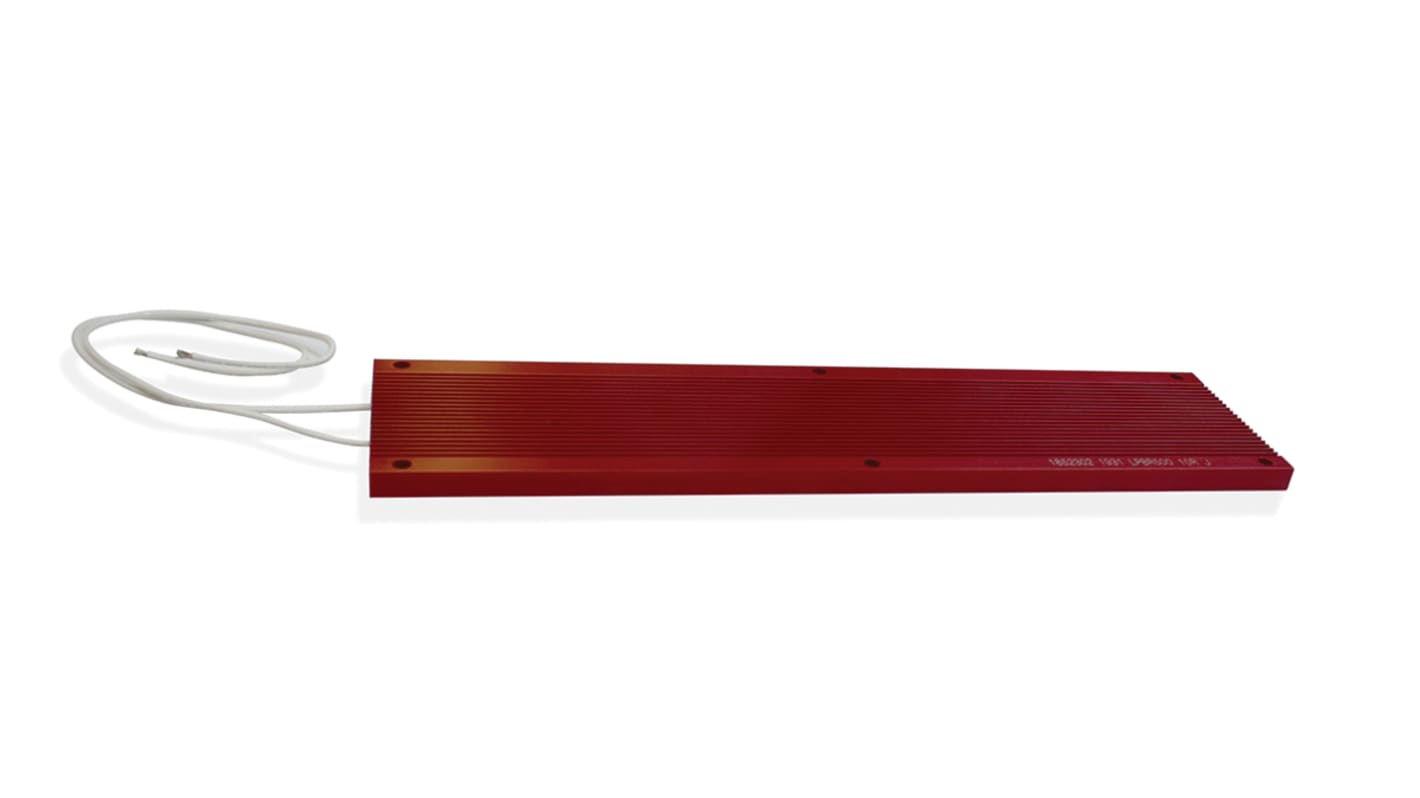

RS PRO, 4Ω 250W Aluminium Braking Resistor ±5%
- RS Stock No.:
- 185-2283
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 185-2283
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Resistance | 4Ω | |
| Power Rating | 250W | |
| Package/Case | Aluminium Housed | |
| Tolerance | ±5% | |
| Technology | Aluminium | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +250°C | |
| Minimum Temperature Coefficient | -100ppm/°C | |
| Maximum Temperature Coefficient | +100ppm/°C | |
| Dimensions | 180 x 80 x 10mm | |
| Overall Length | 180mm | |
| Overall Width | 80mm | |
| Overall Height | 10mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Resistance 4Ω | ||
Power Rating 250W | ||
Package/Case Aluminium Housed | ||
Tolerance ±5% | ||
Technology Aluminium | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +250°C | ||
Minimum Temperature Coefficient -100ppm/°C | ||
Maximum Temperature Coefficient +100ppm/°C | ||
Dimensions 180 x 80 x 10mm | ||
Overall Length 180mm | ||
Overall Width 80mm | ||
Overall Height 10mm | ||
- COO (Country of Origin):
- IN
This range of high Quality, Aluminium housed Power Resistors designed for direct heat sink attachment
High Power density
Low Profile
Heat Sink mountable for increased power dissipation
High Power density
Low Profile
Heat Sink mountable for increased power dissipation
