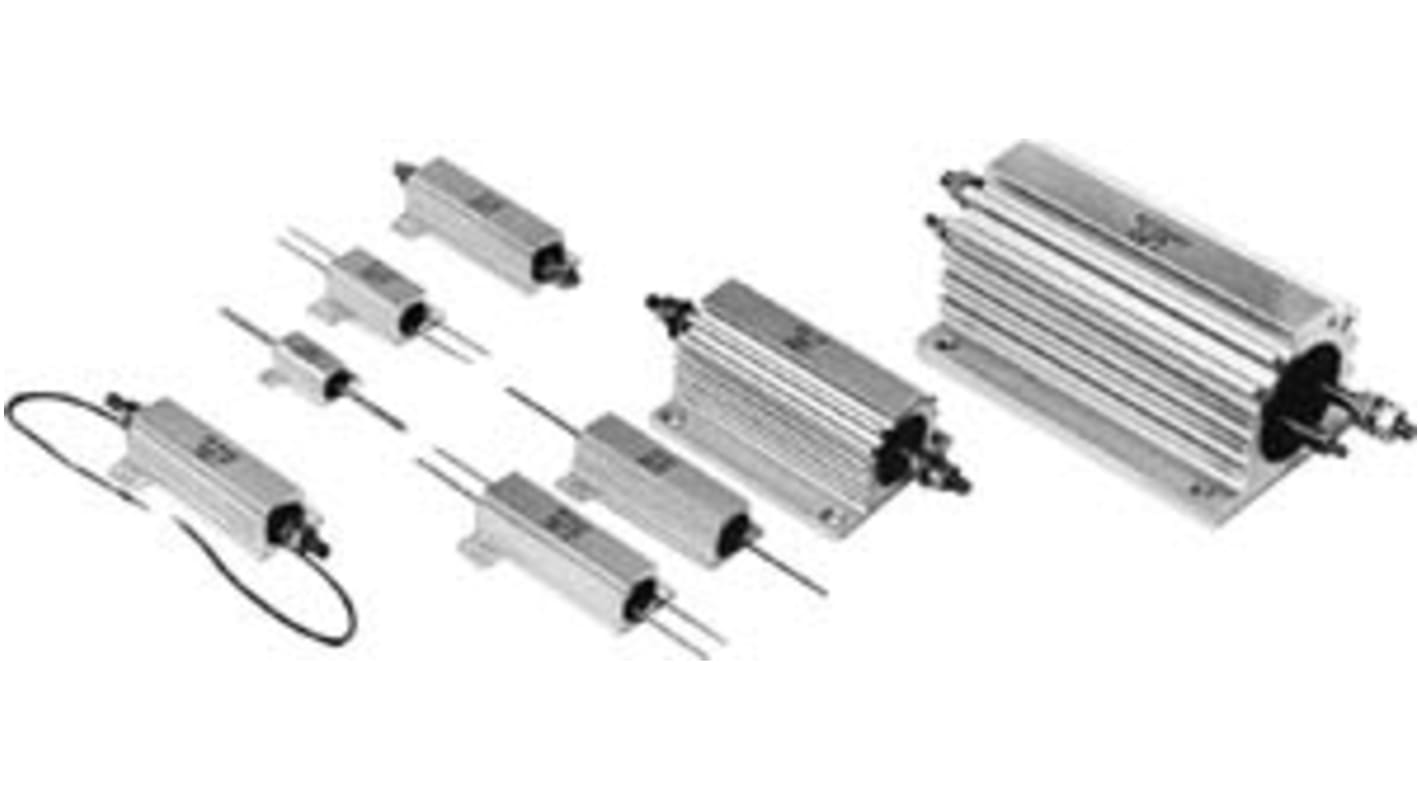

PCN, 10mΩ 10W Wire Wound Chassis Mount Resistor RHF50ML R010 B ±0.1%
- RS Stock No.:
- 161-5866
- Mfr. Part No.:
- RHF50ML R010 B
- Brand:
- PCN
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 161-5866
- Mfr. Part No.:
- RHF50ML R010 B
- Brand:
- PCN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | PCN | |
Resistance | 10mΩ | |
Power Rating | 10W | |
Series | RHF | |
Package/Case | Aluminium Housed | |
Tolerance | ±0.1% | |
Technology | Wire Wound | |
Termination Style | Axial | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +125°C | |
Minimum Temperature Coefficient | -50ppm/°C | |
Maximum Temperature Coefficient | +50ppm/°C | |
Dimensions | 49.2 x 29.2 x 16mm | |
Overall Length | 49.2mm | |
Overall Width | 29.2mm | |
Overall Height | 16mm | |
Select all | ||
---|---|---|
Brand PCN | ||
Resistance 10mΩ | ||
Power Rating 10W | ||
Series RHF | ||
Package/Case Aluminium Housed | ||
Tolerance ±0.1% | ||
Technology Wire Wound | ||
Termination Style Axial | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
Minimum Temperature Coefficient -50ppm/°C | ||
Maximum Temperature Coefficient +50ppm/°C | ||
Dimensions 49.2 x 29.2 x 16mm | ||
Overall Length 49.2mm | ||
Overall Width 29.2mm | ||
Overall Height 16mm | ||
- COO (Country of Origin):
- JP
Ideal For Current Sensing Application.
Small Size, high power and ultra precise resistors.
Ultra precise resistors in low resistance value are available.
Low temperature coefficient.
Strongly resistant to moisture, Solvent, Dielectric strength, and
Insulation.
Small Size, high power and ultra precise resistors.
Ultra precise resistors in low resistance value are available.
Low temperature coefficient.
Strongly resistant to moisture, Solvent, Dielectric strength, and
Insulation.
