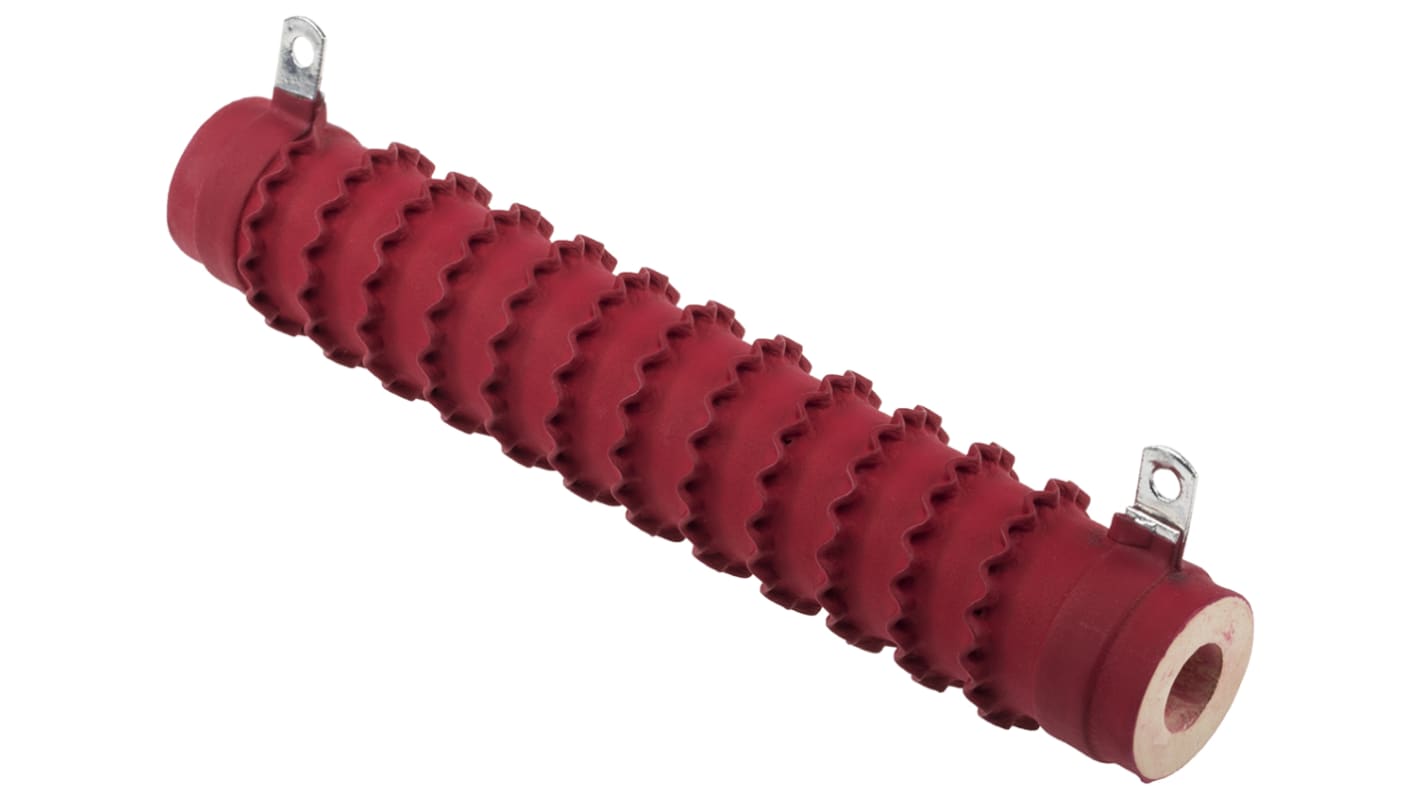

RS PRO, 1Ω 200W Wire Wound Chassis Mount Resistor ±10%
- RS Stock No.:
- 146-8316
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£26.34
(exc. VAT)
£31.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 24 unit(s) shipping from 02 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £26.34 |
5 - 9 | £24.50 |
10 - 24 | £22.65 |
25 - 49 | £20.81 |
50 + | £18.70 |
*price indicative
- RS Stock No.:
- 146-8316
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Resistance | 1Ω | |
Power Rating | 200W | |
Series | RSSC | |
Package/Case | Tubular | |
Tolerance | ±10% | |
Technology | Wire Wound | |
Termination Style | Solder Lug | |
Minimum Temperature Coefficient | -400ppm/°C | |
Maximum Temperature Coefficient | +400ppm/°C | |
Dimensions | 25.5 (Dia.) x 170mm | |
Overall Diameter | 25.5mm | |
Overall Length | 170mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Resistance 1Ω | ||
Power Rating 200W | ||
Series RSSC | ||
Package/Case Tubular | ||
Tolerance ±10% | ||
Technology Wire Wound | ||
Termination Style Solder Lug | ||
Minimum Temperature Coefficient -400ppm/°C | ||
Maximum Temperature Coefficient +400ppm/°C | ||
Dimensions 25.5 (Dia.) x 170mm | ||
Overall Diameter 25.5mm | ||
Overall Length 170mm | ||
- COO (Country of Origin):
- MX
The RS PRO Tubular wire wound resistors of RSSC series is a fixed resistors that are ideal for applications requiring wattage ratings from 72 to 1000 watts. The RSSC resistors are spot welded producing stronger mechanical and electrical connections for rugged applications.
Lead free vitreous enamel
Very large models (700 watts and up) are supplied in Silicone Ceramic
Tubular ceramic
Very large models (700 watts and up) are supplied in Silicone Ceramic
Tubular ceramic
