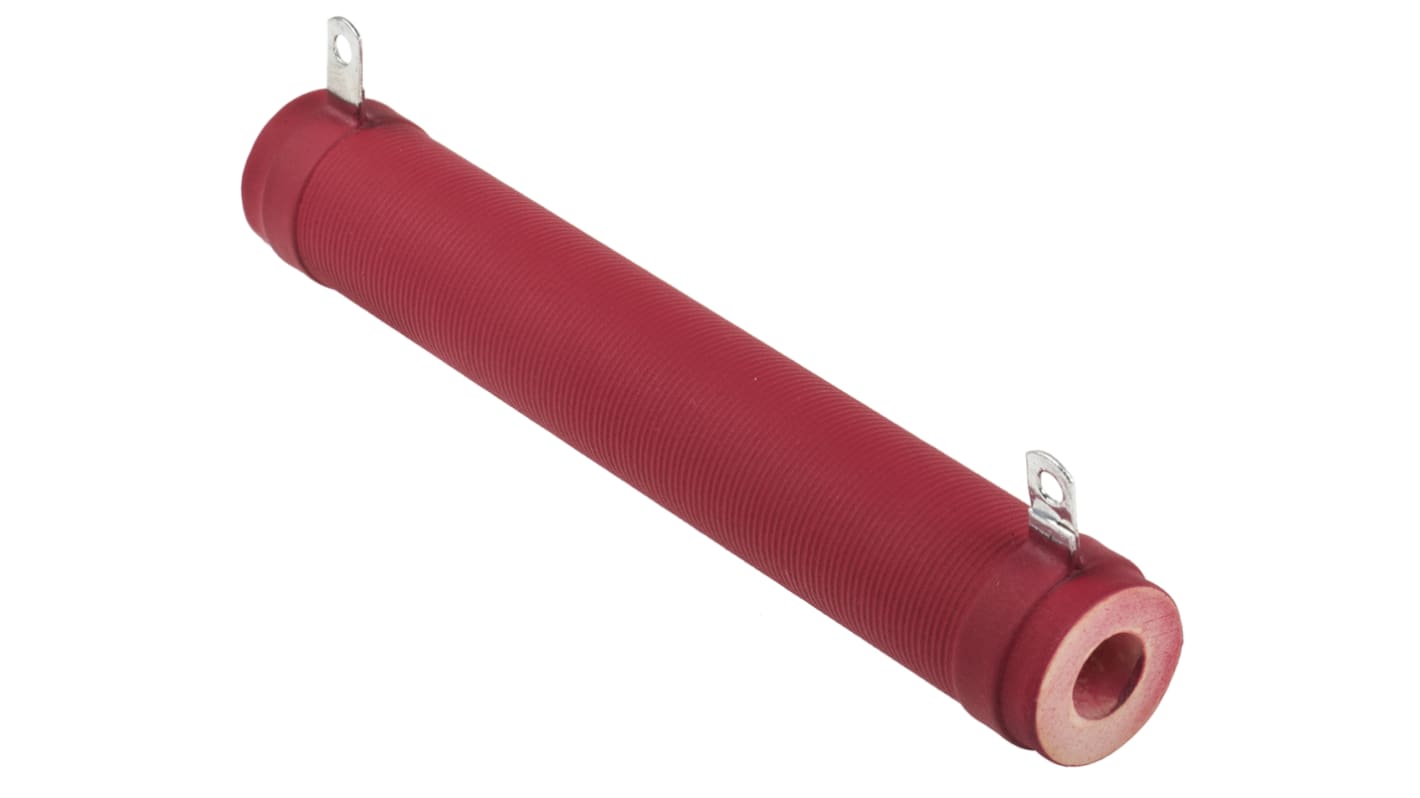

RS PRO, 100Ω 160W Wire Wound Chassis Mount Resistor ±5%
- RS Stock No.:
- 146-8311
- Brand:
- RS PRO
Save 10% when you buy 50 units
Subtotal (1 unit)*
£24.68
(exc. VAT)
£29.62
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 10 unit(s) shipping from 26 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £24.68 |
5 - 9 | £24.01 |
10 - 24 | £23.38 |
25 - 49 | £22.77 |
50 + | £22.21 |
*price indicative
- RS Stock No.:
- 146-8311
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Resistance | 100Ω | |
Power Rating | 160W | |
Series | RSSC | |
Package/Case | Tubular | |
Tolerance | ±5% | |
Technology | Wire Wound | |
Termination Style | Solder Lug | |
Minimum Temperature Coefficient | -260ppm/°C | |
Maximum Temperature Coefficient | +260ppm/°C | |
Dimensions | 25.5 (Dia.) x 170mm | |
Overall Diameter | 25.5mm | |
Overall Length | 170mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Resistance 100Ω | ||
Power Rating 160W | ||
Series RSSC | ||
Package/Case Tubular | ||
Tolerance ±5% | ||
Technology Wire Wound | ||
Termination Style Solder Lug | ||
Minimum Temperature Coefficient -260ppm/°C | ||
Maximum Temperature Coefficient +260ppm/°C | ||
Dimensions 25.5 (Dia.) x 170mm | ||
Overall Diameter 25.5mm | ||
Overall Length 170mm | ||
- COO (Country of Origin):
- MX
The RS PRO Tubular wire wound resistors of RSSC series is a fixed resistors that are ideal for applications requiring wattage ratings from 72 to 1000 watts. The RSSC resistors are spot welded producing stronger mechanical and electrical connections for rugged applications.
Lead free vitreous enamel
Very large models (700 watts and up) are supplied in Silicone Ceramic
Tubular ceramic
Very large models (700 watts and up) are supplied in Silicone Ceramic
Tubular ceramic
