Jumo Logoscreen 500CF, 3 Input Channels, Chart Recorder Measures Current, Temperature, Voltage
- RS Stock No.:
- 325-996
- Mfr. Part No.:
- 706510/14-23/020,261
- Brand:
- Jumo
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 325-996
- Mfr. Part No.:
- 706510/14-23/020,261
- Brand:
- Jumo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Jumo | |
| Number of Inputs | 3 | |
| Parameter Measured | Current, Temperature, Voltage | |
| Model Number p | Logoscreen 500CF | |
| Select all | ||
|---|---|---|
Brand Jumo | ||
Number of Inputs 3 | ||
Parameter Measured Current, Temperature, Voltage | ||
Model Number p Logoscreen 500CF | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE

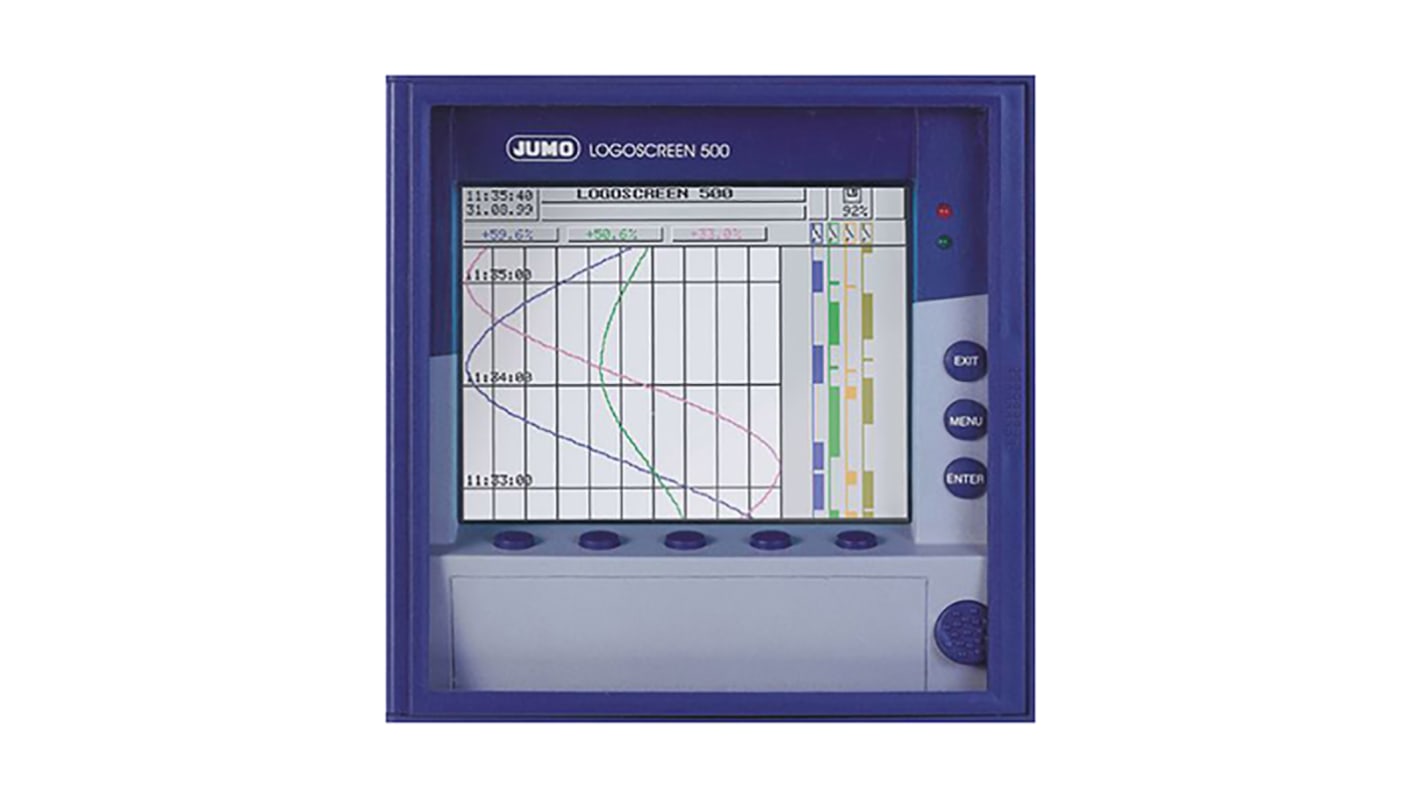

Logo Screen 500 cf recorders
Paperless recorders for the acquisition, display and electronic storage of measurements.
5-inch colour screen.
3 or 6 measurement inputs, galvanically separated from one another and freely programmable for inputs, thermocouples, resistance probes, current or voltage.
Data backup on compact Flash® industrial grade card, in Flash memory (350,000 points).
Recorder configuration using the keypad or PC Setup software (available separately).
Operating software to display the data on a PC.
Data can be exported to other software (Excel type) for processing.
5-inch colour screen.
3 or 6 measurement inputs, galvanically separated from one another and freely programmable for inputs, thermocouples, resistance probes, current or voltage.
Data backup on compact Flash® industrial grade card, in Flash memory (350,000 points).
Recorder configuration using the keypad or PC Setup software (available separately).
Operating software to display the data on a PC.
Data can be exported to other software (Excel type) for processing.
