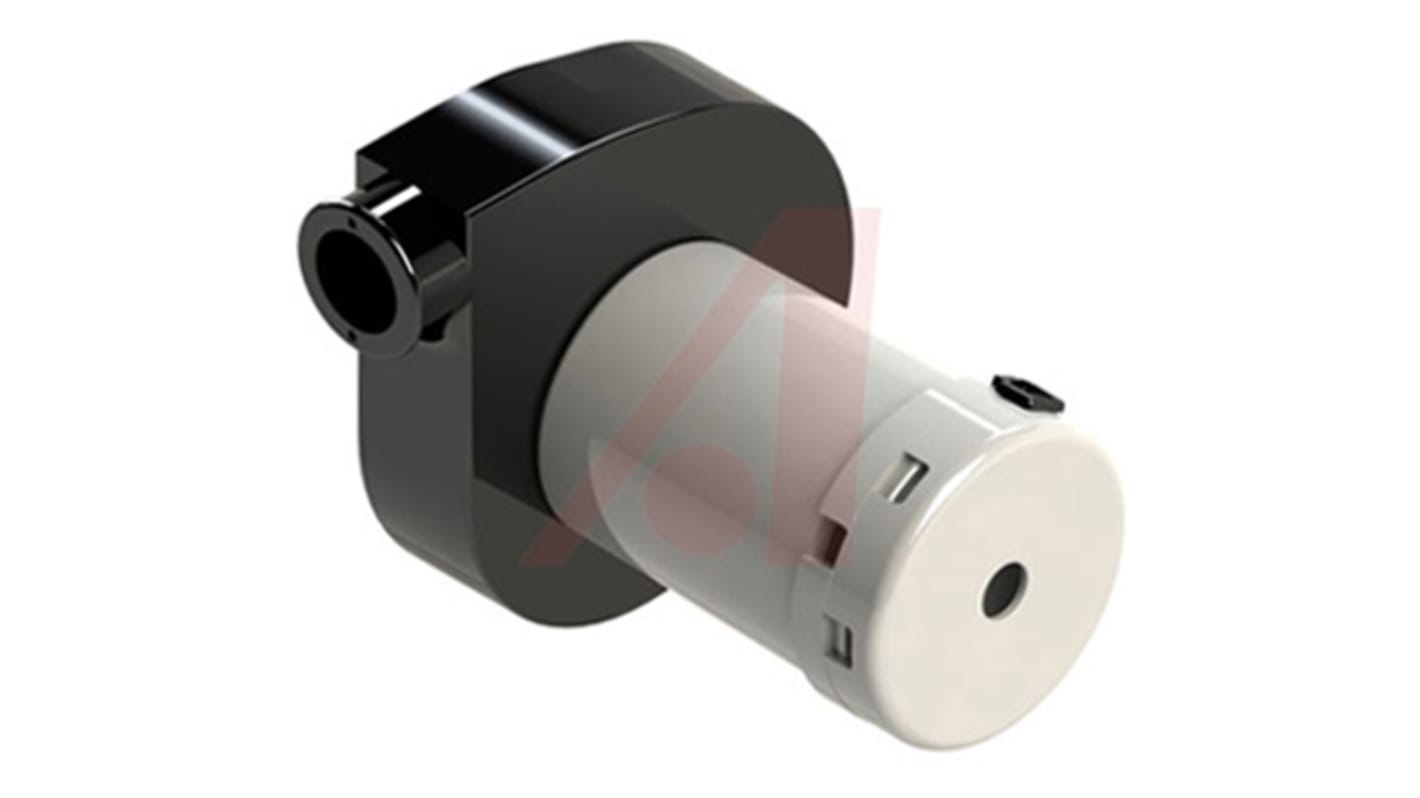

Ametek Microjammer 3.0" Series Centrifugal Fan, 24 V dc, 45.07m³/h, DC Operation, 77.7 x 74.7 x 88.1mm
- RS Stock No.:
- 892-3620
- Mfr. Part No.:
- 150908-50
- Brand:
- Ametek
2 In stock - FREE next working day delivery available
Added
Price Each
£438.28
(exc. VAT)
£525.94
(inc. VAT)
| Units | Per unit |
| 1 + | £438.28 |
- RS Stock No.:
- 892-3620
- Mfr. Part No.:
- 150908-50
- Brand:
- Ametek
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Ametek Brushless Blower
The Ametek 24VDC brushless low voltage blower provides quiet, maintenance-free, and oil-free operations. This blower with a robust plastic casing and easy-to-access mounting holes, make a sturdy and versatile option that boasts a long performance life. Air and other gases are drawn into the blower via the inlet ports on the impeller blades.
Features and Benefits
Compact design
Operating temperature ranges between 0°C and 45°C
Speed control switch
Static pressure of 14.63in/H2O
45.07m³/h airflow
Operating temperature ranges between 0°C and 45°C
Speed control switch
Static pressure of 14.63in/H2O
45.07m³/h airflow
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24 V dc |
| Blower Type | Blower |
| AC or DC Operation | DC |
| Air Flow | 45.07m³/h |
| Series | Microjammer 3.0" |
| Height | 74.7mm |
| Width | 77.7mm |
| Depth | 88.1mm |
| Dimensions | 77.7 x 74.7 x 88.1mm |
| Commutation Type | Brushless |
| Static Pressure | 14.63in/H2O |
| Outlet Diameter | 21.6mm |
| Termination Type | Lead Wire |
| Inlet Diameter | 20.3mm |
