Ametek Nautilair 7.6" Series Centrifugal Fan, 240 V ac, 270.99m³/h, ac Operation, 204.22 x 189.5 x 138.4mm
- RS Stock No.:
- 892-3601
- Mfr. Part No.:
- 150521-00
- Brand:
- Ametek
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 892-3601
- Mfr. Part No.:
- 150521-00
- Brand:
- Ametek
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ametek | |
| Supply Voltage | 240 V ac | |
| Blower Type | Blower | |
| AC or DC Operation | ac | |
| Air Flow | 270.99m³/h | |
| Series | Nautilair 7.6" | |
| Height | 189.5mm | |
| Width | 204.22mm | |
| Depth | 138.4mm | |
| Dimensions | 204.22 x 189.5 x 138.4mm | |
| Static Pressure | 21.3in/H2O | |
| Maximum Current | 2A | |
| Commutation Type | Brushless | |
| Special Features | Built With Non-Sparking Materials, Speed Control | |
| Sensor Type | Tach Output | |
| Termination Type | Header | |
| Outlet Diameter | 0 | |
| Inlet Diameter | 50.17mm | |
| Mounting Hole Diameter | 5.8mm | |
Select all | ||
|---|---|---|
Brand Ametek | ||
Supply Voltage 240 V ac | ||
Blower Type Blower | ||
AC or DC Operation ac | ||
Air Flow 270.99m³/h | ||
Series Nautilair 7.6" | ||
Height 189.5mm | ||
Width 204.22mm | ||
Depth 138.4mm | ||
Dimensions 204.22 x 189.5 x 138.4mm | ||
Static Pressure 21.3in/H2O | ||
Maximum Current 2A | ||
Commutation Type Brushless | ||
Special Features Built With Non-Sparking Materials, Speed Control | ||
Sensor Type Tach Output | ||
Termination Type Header | ||
Outlet Diameter 0 | ||
Inlet Diameter 50.17mm | ||
Mounting Hole Diameter 5.8mm | ||
- COO (Country of Origin):
- US

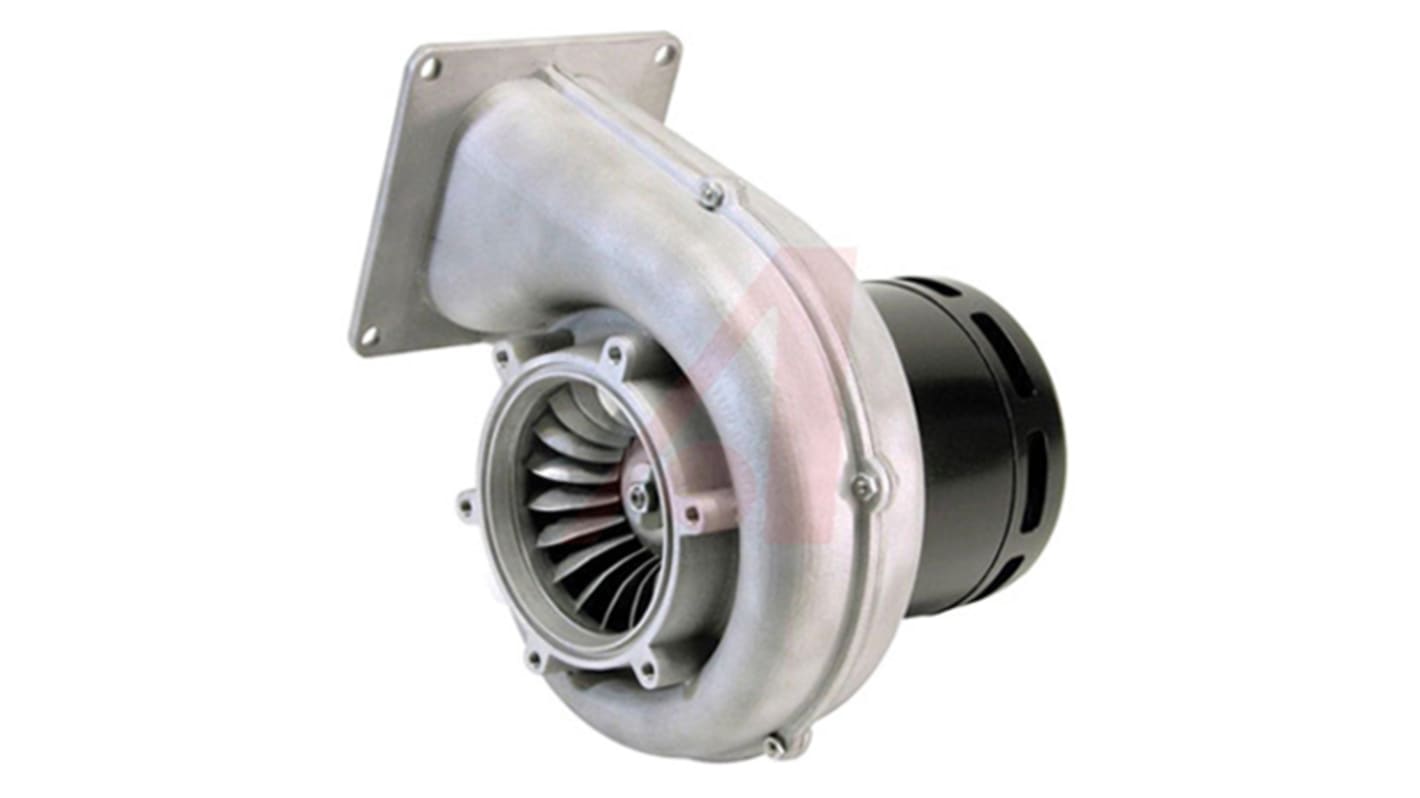

Ametek Nautilair Variable Speed BLDC Blower
Ametek Nautilair Variable Speed BLDC Blower with hall effect sensor feedback. Nautilair variable speed blowers provide quiet, maintenance free, oil free operations. Air and other gases are drawn into the blower via the side inlet port on the impeller blades. With a robust aluminium casing and easy-to-access mounting holes, Ametek blowers are sturdy and versatile, and boast a long performance life.
