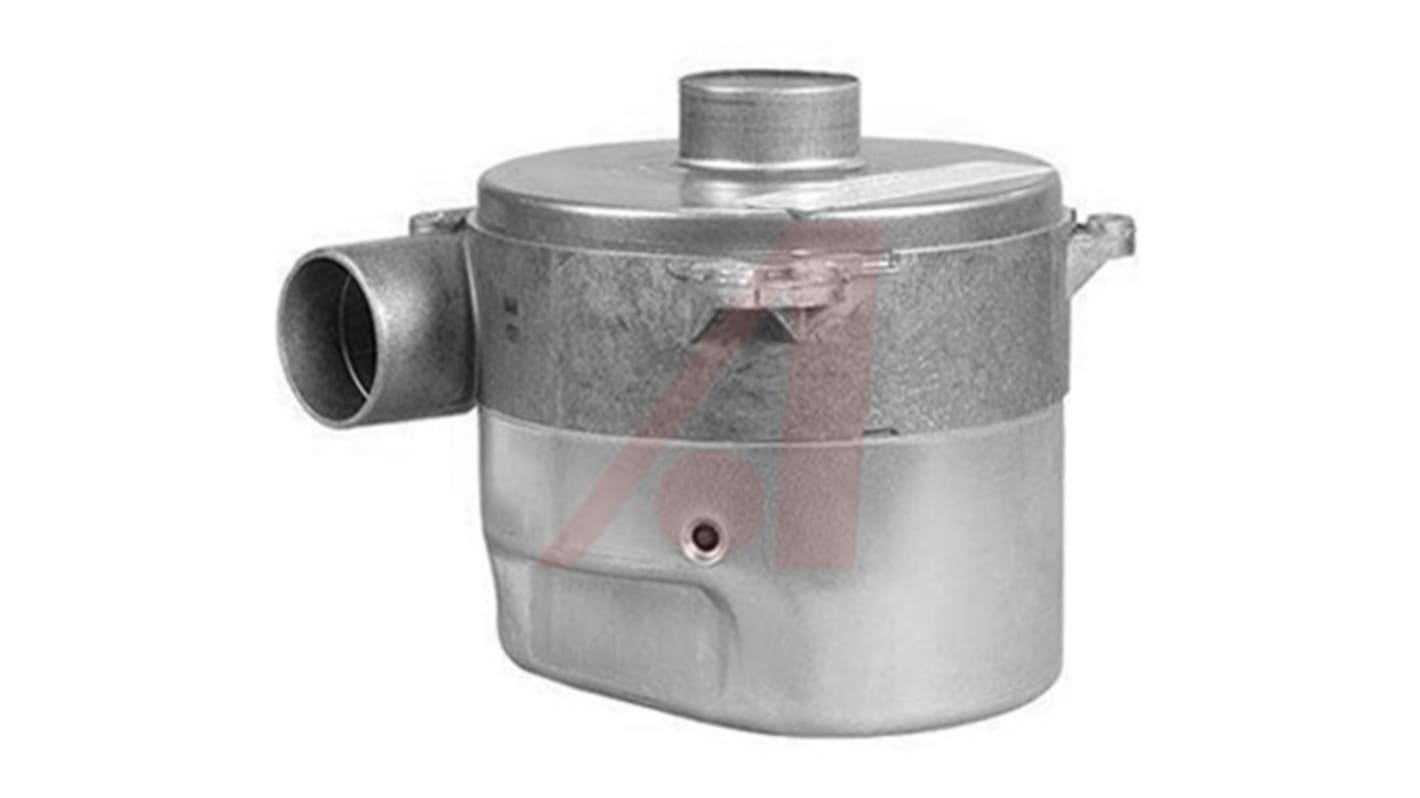

Ametek Windjammer - Bypass 5.7" Series Centrifugal Fan, 24 V dc, 107.04m³/h, DC Operation, 149.4 x 149.4 x 187.5mm
- RS Stock No.:
- 892-3572
- Mfr. Part No.:
- 150402-50
- Brand:
- Ametek
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 892-3572
- Mfr. Part No.:
- 150402-50
- Brand:
- Ametek
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ametek | |
| Supply Voltage | 24 V dc | |
| Blower Type | Blower | |
| AC or DC Operation | DC | |
| Air Flow | 107.04m³/h | |
| Series | Windjammer - Bypass 5.7" | |
| Height | 149.4mm | |
| Width | 149.4mm | |
| Depth | 187.5mm | |
| Dimensions | 149.4 x 149.4 x 187.5mm | |
| Commutation Type | Brushless | |
| Static Pressure | 75in/H2O | |
| Mounting Hole Diameter | 4.3mm | |
| Inlet Diameter | 44.5mm | |
| Outlet Diameter | 44.5mm | |
| Sensor Type | Tach Output | |
| Termination Type | Lead Wire | |
| Special Features | Speed Control | |
Select all | ||
|---|---|---|
Brand Ametek | ||
Supply Voltage 24 V dc | ||
Blower Type Blower | ||
AC or DC Operation DC | ||
Air Flow 107.04m³/h | ||
Series Windjammer - Bypass 5.7" | ||
Height 149.4mm | ||
Width 149.4mm | ||
Depth 187.5mm | ||
Dimensions 149.4 x 149.4 x 187.5mm | ||
Commutation Type Brushless | ||
Static Pressure 75in/H2O | ||
Mounting Hole Diameter 4.3mm | ||
Inlet Diameter 44.5mm | ||
Outlet Diameter 44.5mm | ||
Sensor Type Tach Output | ||
Termination Type Lead Wire | ||
Special Features Speed Control | ||
- COO (Country of Origin):
- US
Ametek Windjammer Bypass BLDC Blower
Ametek Windjammer Bypass BLDC blowers provide quiet, maintenance free, oil free operations. Air and other gases are drawn into the blower via the side inlet port on the impeller blades. With a robust aluminium casing and easy-to-access mounting holes, Ametek blowers are sturdy and versatile, and boast a long performance life.
Adjustable air performance
Thermal protection
Locked rotor protection
Separation of cooling air and working air in bypass configuration
Compact size
Thermal protection
Locked rotor protection
Separation of cooling air and working air in bypass configuration
Compact size
