Ametek Microjammer 3.3" Series Centrifugal Fan, 24 V dc, 12.74m³/h, DC Operation, 112.2 x 83.6 x 69.7mm
- RS Stock No.:
- 892-3500
- Mfr. Part No.:
- 119498-00
- Brand:
- Ametek
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 892-3500
- Mfr. Part No.:
- 119498-00
- Brand:
- Ametek
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ametek | |
| Supply Voltage | 24 V dc | |
| Blower Type | Blower | |
| AC or DC Operation | DC | |
| Air Flow | 12.74m³/h | |
| Series | Microjammer 3.3" | |
| Height | 83.6mm | |
| Width | 112.2mm | |
| Depth | 69.7mm | |
| Dimensions | 112.2 x 83.6 x 69.7mm | |
| Static Pressure | 24in/H2O | |
| Commutation Type | Brushless | |
| Termination Type | Lead Wire | |
| Outlet Diameter | 21.8mm | |
| Inlet Diameter | 12.7mm | |
Select all | ||
|---|---|---|
Brand Ametek | ||
Supply Voltage 24 V dc | ||
Blower Type Blower | ||
AC or DC Operation DC | ||
Air Flow 12.74m³/h | ||
Series Microjammer 3.3" | ||
Height 83.6mm | ||
Width 112.2mm | ||
Depth 69.7mm | ||
Dimensions 112.2 x 83.6 x 69.7mm | ||
Static Pressure 24in/H2O | ||
Commutation Type Brushless | ||
Termination Type Lead Wire | ||
Outlet Diameter 21.8mm | ||
Inlet Diameter 12.7mm | ||
Non Compliant
- COO (Country of Origin):
- US

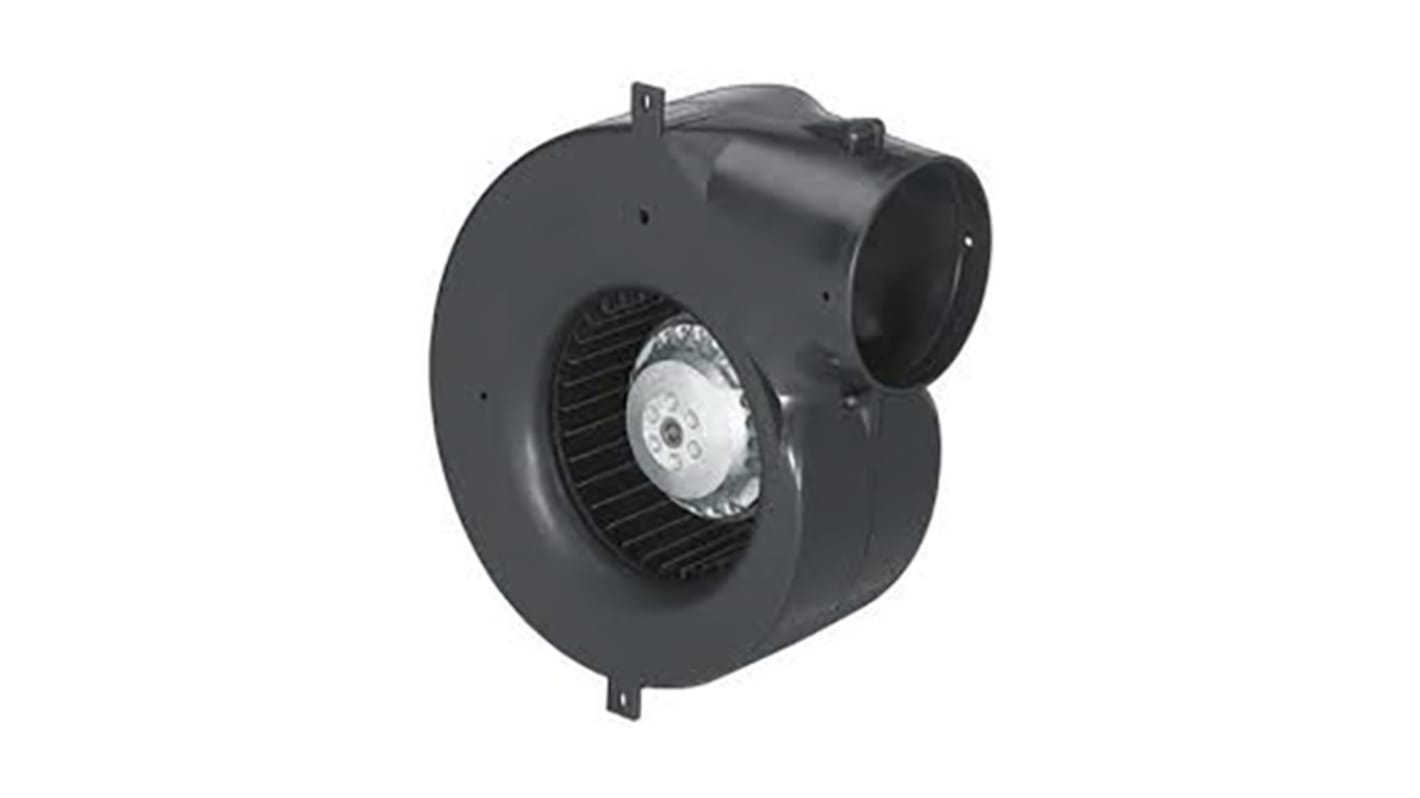

Ametek Brushless Low Voltage Blower
Professional range of Ametek Brushless Low Voltage Blower that provide quiet, maintenance free, oil free operations. Air and other gases are drawn into the blower via the inlet ports on the impeller blades. With a robust plastic casing and easy-to-access mounting holes, Ametek blowers are sturdy and versatile, and boast a long performance life.
