Ametek Windjammer - Bypass 5.7" Series Centrifugal Fan, 120 V ac, 238.76m³/h, ac Operation, 150 x 150 x 153.7mm
- RS Stock No.:
- 892-3399
- Mfr. Part No.:
- 119102-01
- Brand:
- Ametek
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 892-3399
- Mfr. Part No.:
- 119102-01
- Brand:
- Ametek
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ametek | |
| Supply Voltage | 120 V ac | |
| Blower Type | Blower | |
| AC or DC Operation | ac | |
| Air Flow | 238.76m³/h | |
| Series | Windjammer - Bypass 5.7" | |
| Height | 150mm | |
| Width | 150mm | |
| Depth | 153.7mm | |
| Dimensions | 150 x 150 x 153.7mm | |
| Commutation Type | Brushless | |
| Static Pressure | 38.83in/H2O | |
| Maximum Current | 10A | |
| Outlet Diameter | 44.45mm | |
| Special Features | Speed Control | |
| Termination Type | Header | |
| Priced to Clear | Yes | |
| Inlet Diameter | 44.45mm | |
| Mounting Hole Diameter | 4.3mm | |
Select all | ||
|---|---|---|
Brand Ametek | ||
Supply Voltage 120 V ac | ||
Blower Type Blower | ||
AC or DC Operation ac | ||
Air Flow 238.76m³/h | ||
Series Windjammer - Bypass 5.7" | ||
Height 150mm | ||
Width 150mm | ||
Depth 153.7mm | ||
Dimensions 150 x 150 x 153.7mm | ||
Commutation Type Brushless | ||
Static Pressure 38.83in/H2O | ||
Maximum Current 10A | ||
Outlet Diameter 44.45mm | ||
Special Features Speed Control | ||
Termination Type Header | ||
Priced to Clear Yes | ||
Inlet Diameter 44.45mm | ||
Mounting Hole Diameter 4.3mm | ||
- COO (Country of Origin):
- US

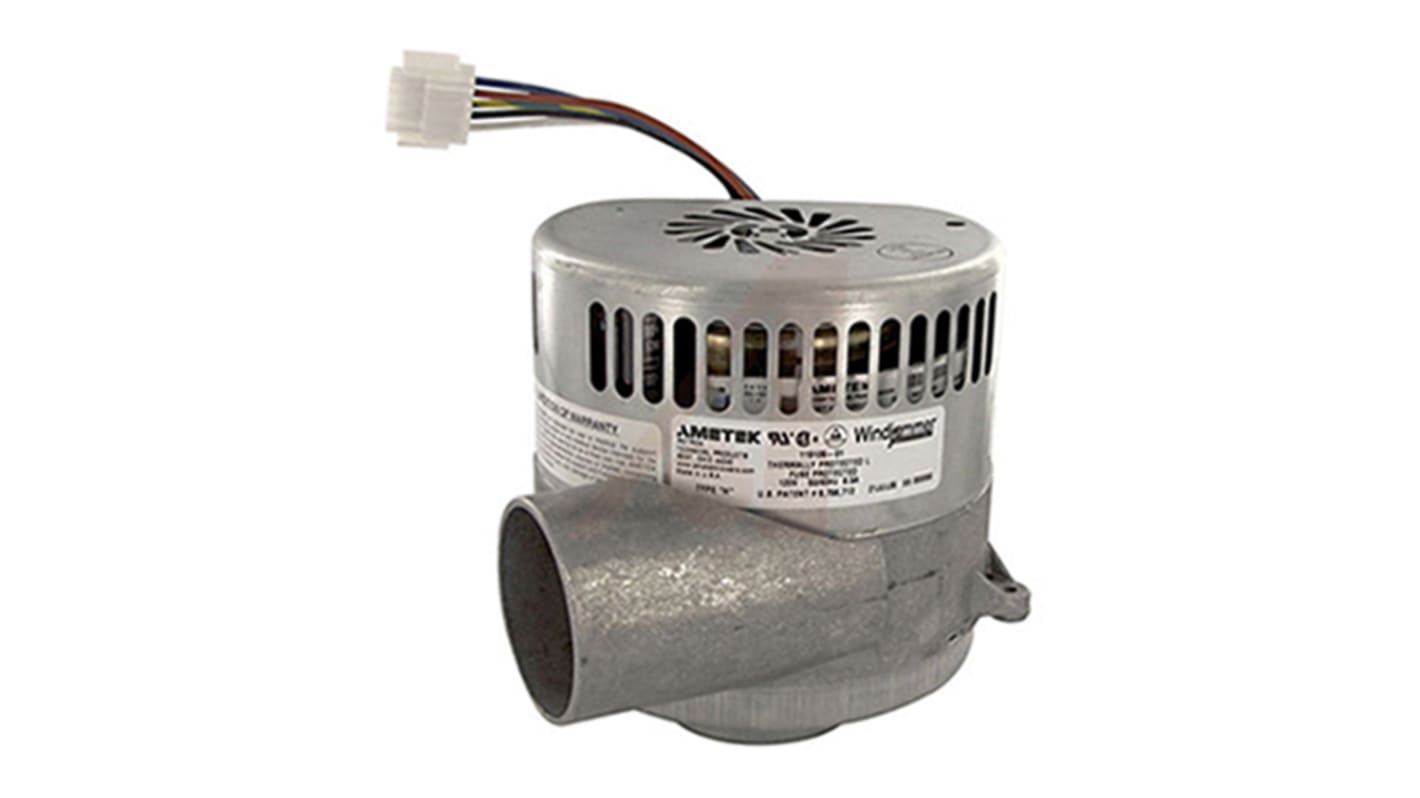

Ametek IntelliGen Bypass BLDC Blower
Ametek IntelliGen bypass brushless blower with high flow fan system. The IntelliGen blowers fan system can be used for either vacuum or pressure. The backward curved centrifugal impellers of the working air provide high efficiency operation. With a robust plastic casing and easy-to-access mounting holes, Ametek blowers are sturdy and versatile, and boast a long performance life.
Adjustable air performance
Thermal protection
Locked rotor protection
Separation of cooling air and working air in bypass configuration
Compact size
Long life
Low noise to power ratio
Thermal protection
Locked rotor protection
Separation of cooling air and working air in bypass configuration
Compact size
Long life
Low noise to power ratio
