Ametek Minispiral Series Regenerative SPA Centrifugal Fan, 110 V ac, 115 V ac, 5.8m³/h, AC Operation, 104.4 x 105.66 x

View all Centrifugal Fans
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
892-2078
Mfr. Part No.:
SE2B21 (081901)
Brand:
Ametek
Find similar products by selecting one or more attributes.
Select all

Brand

Ametek

Supply Voltage

110 V ac, 115 V ac

Blower Type

Regenerative SPA

AC or DC Operation

AC

Air Flow

5.8m³/h

Series

Minispiral

Height

105.66mm

Width

104.4mm

Depth

45.72mm

Dimensions

104.4 x 105.66 x 45.72mm

Fan Speed

2850 rpm, 3400rpm

Bearing Type

Ball

Maximum Current

140 mA, 170mA

Termination Type

Terminal

Special Features

Glass Filled Molded Phenolic Blower Hosing Cover and Impeller, Maximum Quiet Operation

Mounting Hole Diameter

5.38mm

Outlet Diameter

19.05mm

Inlet Diameter

19.05mm

Horizontal Hole Spacing

88.9mm

COO (Country of Origin):
US

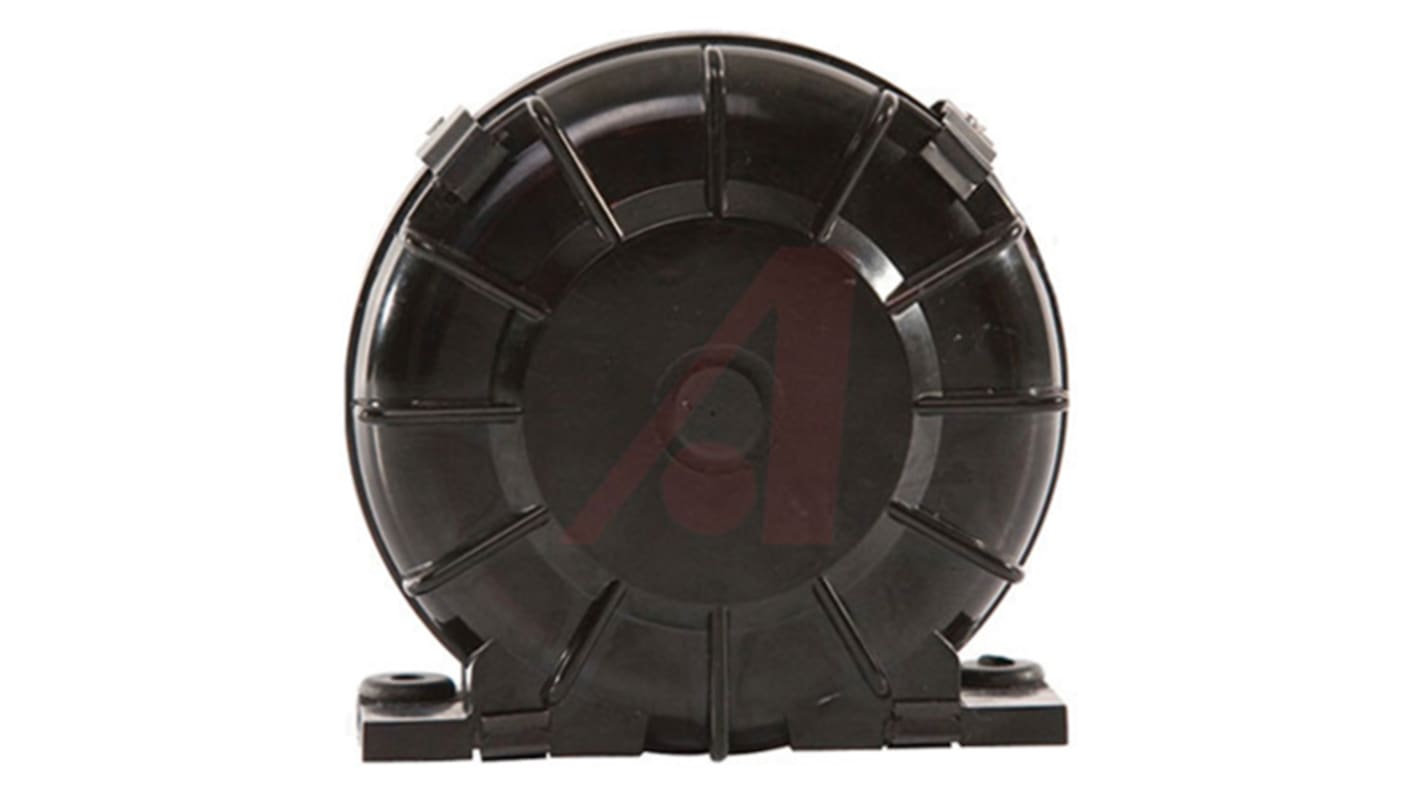

Ametek Minispiral Regenerative Blower


Professional range of Ametek industrial regenerative blowers that provide quiet, maintenance free, oil free operations. Air and other gases are drawn into the blower via the inlet ports on the impeller blades.

Small and lightweight construction
30,000 hour bearing life
