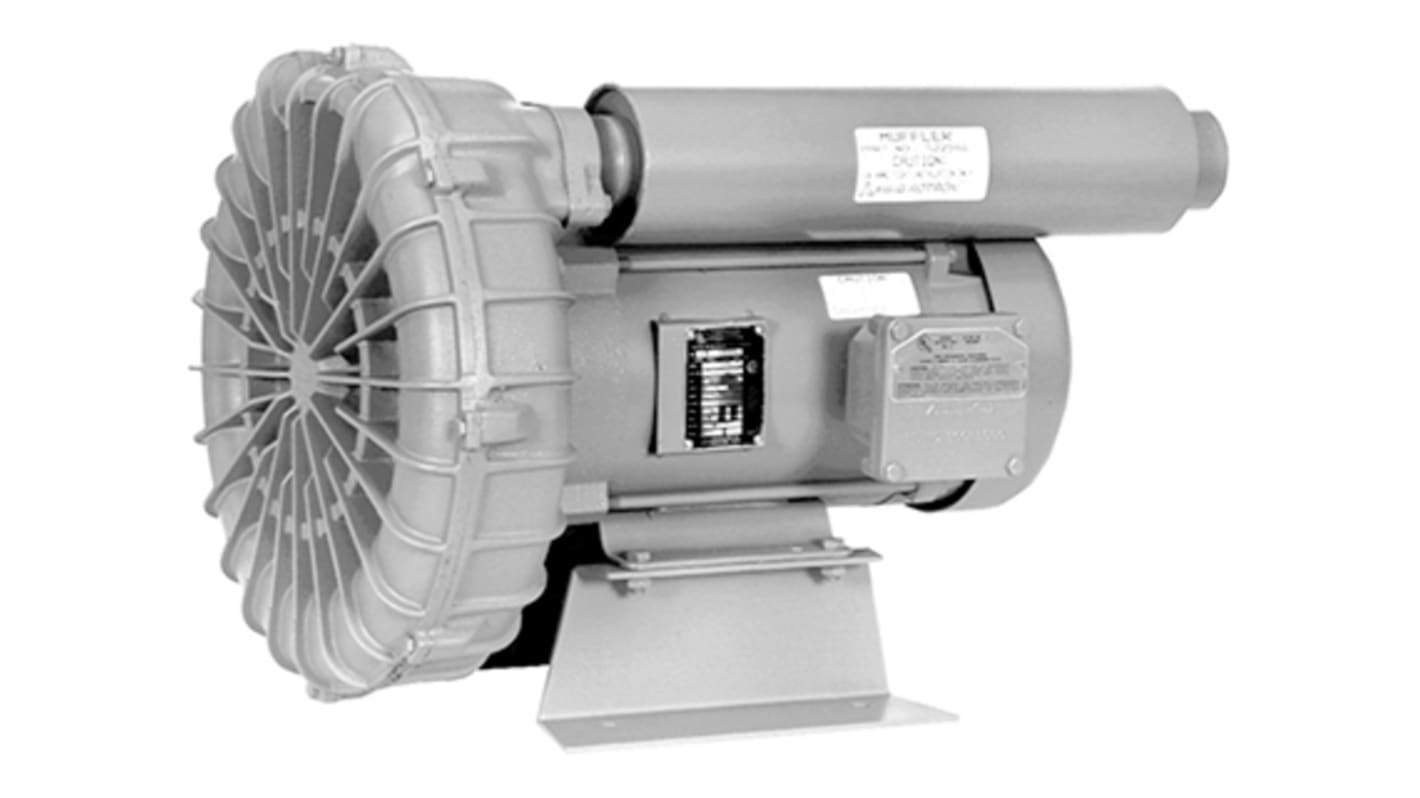

Ametek EN6 Series Regenerative Centrifugal Fan, 230 V ac, 350.49m³/h, AC Operation, 416.1 x 529.2 x 423.9mm
- RS Stock No.:
- 892-1905
- Mfr. Part No.:
- EN6F5L (038361)
- Brand:
- Ametek
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 892-1905
- Mfr. Part No.:
- EN6F5L (038361)
- Brand:
- Ametek
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ametek | |
| Supply Voltage | 230 V ac | |
| Blower Type | Regenerative | |
| AC or DC Operation | AC | |
| Air Flow | 350.49m³/h | |
| Series | EN6 | |
| Height | 529.2mm | |
| Width | 416.1mm | |
| Depth | 423.9mm | |
| Dimensions | 416.1 x 529.2 x 423.9mm | |
| Bearing Type | Ball | |
| Maximum Current | 23A | |
| Horizontal Hole Spacing | 177.8 mm, 203.2mm | |
| Inlet Diameter | 50.8mm | |
| Special Features | Quiet Operation within OSHA Standards | |
| Termination Type | Terminal | |
| Mounting Hole Diameter | 14.3mm | |
| Outlet Diameter | 50.8mm | |
Select all | ||
|---|---|---|
Brand Ametek | ||
Supply Voltage 230 V ac | ||
Blower Type Regenerative | ||
AC or DC Operation AC | ||
Air Flow 350.49m³/h | ||
Series EN6 | ||
Height 529.2mm | ||
Width 416.1mm | ||
Depth 423.9mm | ||
Dimensions 416.1 x 529.2 x 423.9mm | ||
Bearing Type Ball | ||
Maximum Current 23A | ||
Horizontal Hole Spacing 177.8 mm, 203.2mm | ||
Inlet Diameter 50.8mm | ||
Special Features Quiet Operation within OSHA Standards | ||
Termination Type Terminal | ||
Mounting Hole Diameter 14.3mm | ||
Outlet Diameter 50.8mm | ||
- COO (Country of Origin):
- US
Ametek Environmental Regenerative Blower
Professional range of Ametek industrial regenerative blowers that provide quiet, maintenance free, oil free operations. Air and other gases are drawn into the blower via the inlet ports on the impeller blades.
Heavy duty cast aluminium
Spark resistant housing
Teflon® lip seal
Spark resistant housing
Teflon® lip seal
