Ametek DR833 Series Regenerative Centrifugal Fan, 575 V ac, 307.09m³/h, AC Operation, 485.9 x 609.6 x 492.3mm
- RS Stock No.:
- 892-1863
- Mfr. Part No.:
- DR833AY86M/081701
- Brand:
- Ametek
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 892-1863
- Mfr. Part No.:
- DR833AY86M/081701
- Brand:
- Ametek
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ametek | |
| Supply Voltage | 575 V ac | |
| Blower Type | Regenerative | |
| AC or DC Operation | AC | |
| Air Flow | 307.09m³/h | |
| Series | DR833 | |
| Height | 609.6mm | |
| Width | 485.9mm | |
| Depth | 492.3mm | |
| Dimensions | 485.9 x 609.6 x 492.3mm | |
| Bearing Type | Ball | |
| Direction of Curve | Forward | |
| Maximum Current | 7.7A | |
| Termination Type | Terminal | |
| Mounting Hole Diameter | 15mm | |
| Inlet Diameter | 50.8mm | |
| Outlet Diameter | 50.8mm | |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings | |
| Horizontal Hole Spacing | 300 mm, 448.01mm | |
Select all | ||
|---|---|---|
Brand Ametek | ||
Supply Voltage 575 V ac | ||
Blower Type Regenerative | ||
AC or DC Operation AC | ||
Air Flow 307.09m³/h | ||
Series DR833 | ||
Height 609.6mm | ||
Width 485.9mm | ||
Depth 492.3mm | ||
Dimensions 485.9 x 609.6 x 492.3mm | ||
Bearing Type Ball | ||
Direction of Curve Forward | ||
Maximum Current 7.7A | ||
Termination Type Terminal | ||
Mounting Hole Diameter 15mm | ||
Inlet Diameter 50.8mm | ||
Outlet Diameter 50.8mm | ||
Special Features Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings | ||
Horizontal Hole Spacing 300 mm, 448.01mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- US

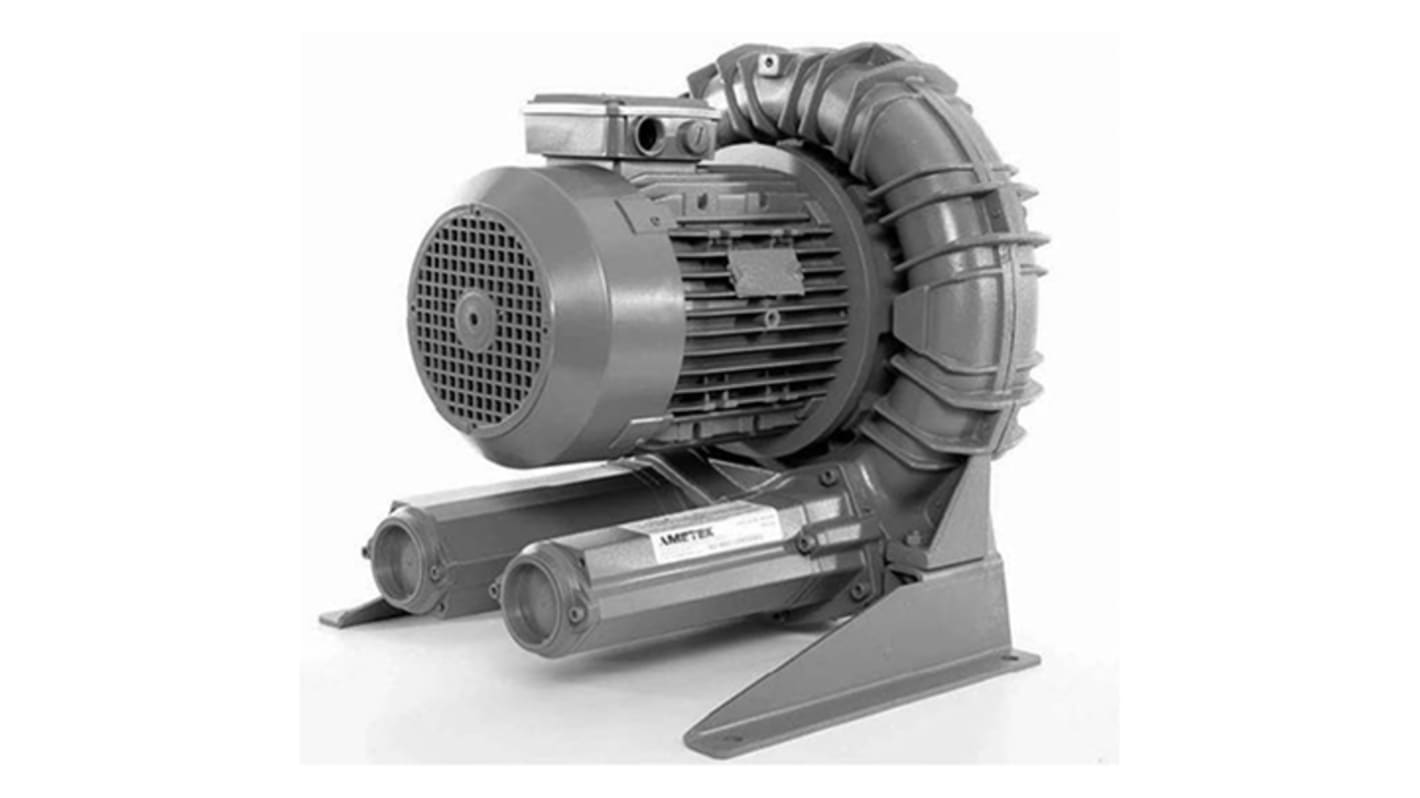

Ametek Industrial Regenerative Blower
Professional range of Ametek industrial regenerative blowers that provide quiet, maintenance free, oil free operations. Air and other gases are drawn into the blower via the inlet ports on the impeller blades.
Rugged Aluminiun housing
Carbon Steel Shaft
Removable cast iron flanges
Carbon Steel Shaft
Removable cast iron flanges
