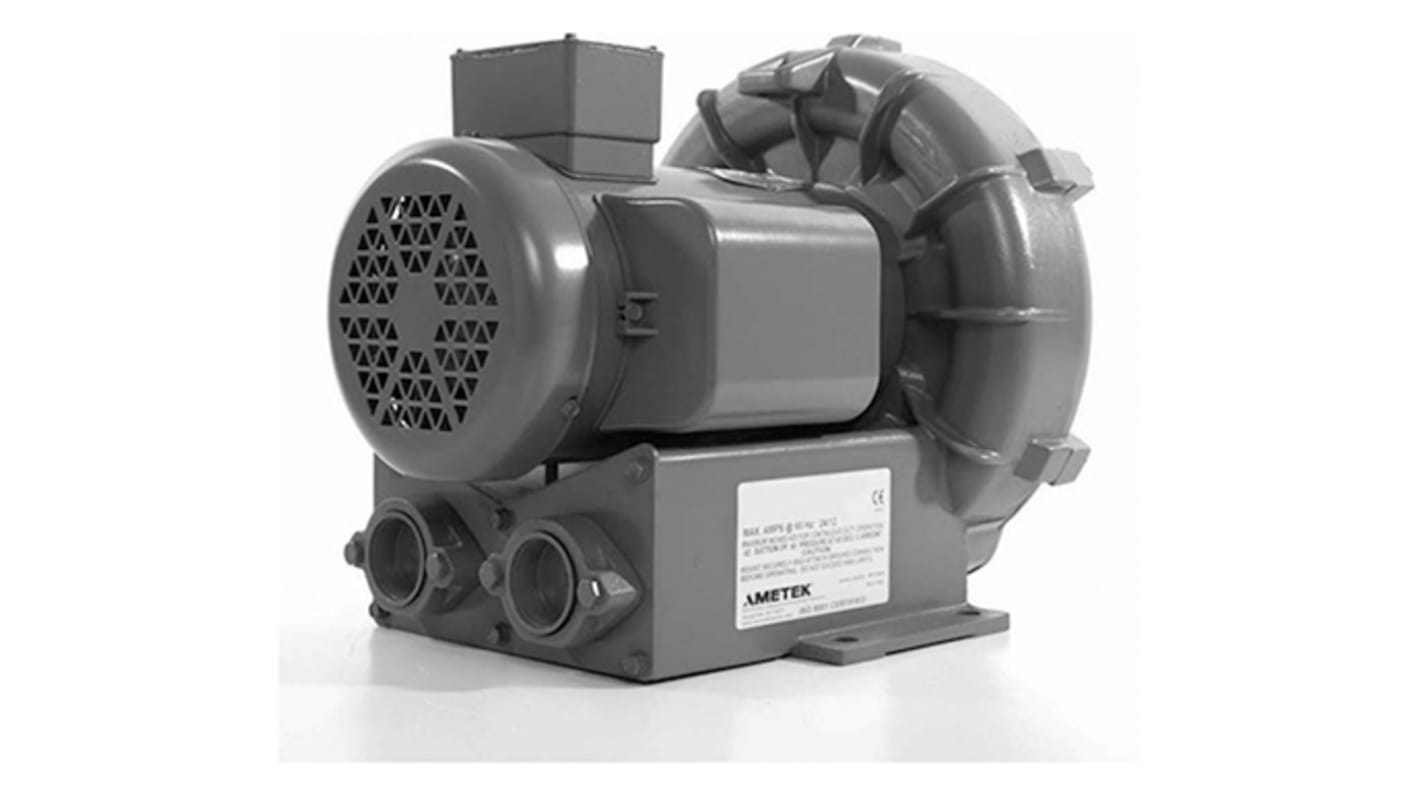

Ametek Regenerative Centrifugal Fan, 115 V ac, 230 V ac, AC Operation, 309.4 x 292.1 x 366mm
- RS Stock No.:
- 892-1725
- Mfr. Part No.:
- DR404AL58M/037407
- Brand:
- Ametek
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 892-1725
- Mfr. Part No.:
- DR404AL58M/037407
- Brand:
- Ametek
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ametek | |
| Supply Voltage | 115 V ac, 230 V ac | |
| Blower Type | Regenerative | |
| AC or DC Operation | AC | |
| Height | 309.4mm | |
| Width | 292.1mm | |
| Depth | 366mm | |
| Dimensions | 309.4 x 292.1 x 366mm | |
| Bearing Type | Ball | |
| Direction of Curve | Forward | |
| Maximum Current | 14.5 A, 7.25 A | |
| Outlet Diameter | 38.1mm | |
| Inlet Diameter | 38.1mm | |
| Termination Type | Terminal | |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings | |
| Mounting Hole Diameter | 11.9mm | |
| Horizontal Hole Spacing | 226.8 mm, 95.3 mm | |
Select all | ||
|---|---|---|
Brand Ametek | ||
Supply Voltage 115 V ac, 230 V ac | ||
Blower Type Regenerative | ||
AC or DC Operation AC | ||
Height 309.4mm | ||
Width 292.1mm | ||
Depth 366mm | ||
Dimensions 309.4 x 292.1 x 366mm | ||
Bearing Type Ball | ||
Direction of Curve Forward | ||
Maximum Current 14.5 A, 7.25 A | ||
Outlet Diameter 38.1mm | ||
Inlet Diameter 38.1mm | ||
Termination Type Terminal | ||
Special Features Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings | ||
Mounting Hole Diameter 11.9mm | ||
Horizontal Hole Spacing 226.8 mm, 95.3 mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- US
Ametek Industrial Regenerative Blower
Professional range of Ametek industrial regenerative blowers that provide quiet, maintenance free, oil free operations. Air and other gases are drawn into the blower via the inlet ports on the impeller blades.
Rugged Aluminiun housing
Carbon Steel Shaft
Removable cast iron flanges
Carbon Steel Shaft
Removable cast iron flanges
