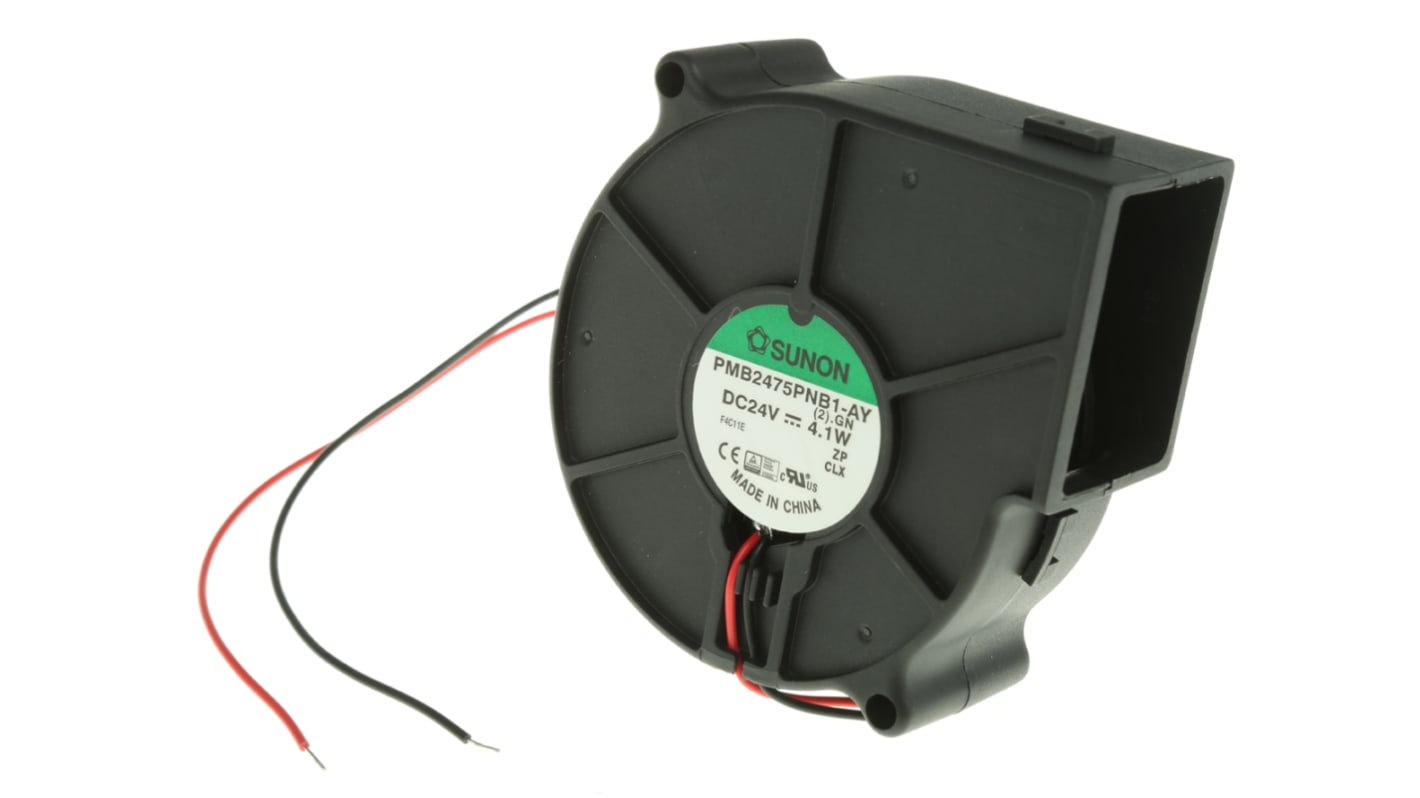

Sunon PMB Series Centrifugal Fan, 24 V dc, 13.6cfm, DC Operation, 75.7 x 75.7 x 30mm
- RS Stock No.:
- 126-408
- Mfr. Part No.:
- PMB2475PNB1-AY(2).GN
- Brand:
- Sunon
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£18.60
(exc. VAT)
£22.32
(inc. VAT)
- RS Stock No.:
- 126-408
- Mfr. Part No.:
- PMB2475PNB1-AY(2).GN
- Brand:
- Sunon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sunon | |
| Supply Voltage | 24 V dc | |
| Blower Type | Blower | |
| AC or DC Operation | DC | |
| Air Flow | 13.6cfm | |
| Series | PMB | |
| Height | 75.7mm | |
| Width | 75.7mm | |
| Depth | 30mm | |
| Dimensions | 75.7 x 75.7 x 30mm | |
| Fan Speed | 3400rpm | |
| Noise Level | 43.5dB(A) | |
| Bearing Type | Ball | |
| Mounting Hole Spacing | 61.8 x 48.2mm | |
| Static Pressure | 0.60in/H2O | |
| Commutation Type | Brushless | |
| Direction of Curve | Backward | |
| Maximum Current | 170mA | |
| Horizontal Hole Spacing | 61.8mm | |
| Vertical Hole Spacing | 48.2mm | |
| Termination Type | Lead Wire | |
| Mounting Hole Diameter | 4.5mm | |
Select all | ||
|---|---|---|
Brand Sunon | ||
Supply Voltage 24 V dc | ||
Blower Type Blower | ||
AC or DC Operation DC | ||
Air Flow 13.6cfm | ||
Series PMB | ||
Height 75.7mm | ||
Width 75.7mm | ||
Depth 30mm | ||
Dimensions 75.7 x 75.7 x 30mm | ||
Fan Speed 3400rpm | ||
Noise Level 43.5dB(A) | ||
Bearing Type Ball | ||
Mounting Hole Spacing 61.8 x 48.2mm | ||
Static Pressure 0.60in/H2O | ||
Commutation Type Brushless | ||
Direction of Curve Backward | ||
Maximum Current 170mA | ||
Horizontal Hole Spacing 61.8mm | ||
Vertical Hole Spacing 48.2mm | ||
Termination Type Lead Wire | ||
Mounting Hole Diameter 4.5mm | ||
- COO (Country of Origin):
- CN
Sunon AC and DC Blowers
Sunon blowers are high performance, long lifetime blowers suitable for all applications where high airflow is required and high static pressure needs to be overcome. With a robust plastic casing and easy-to-access mounting holes, Sunon blowers are sturdy and versatile, and boast a long performance life.
Approvals
UL, CE
