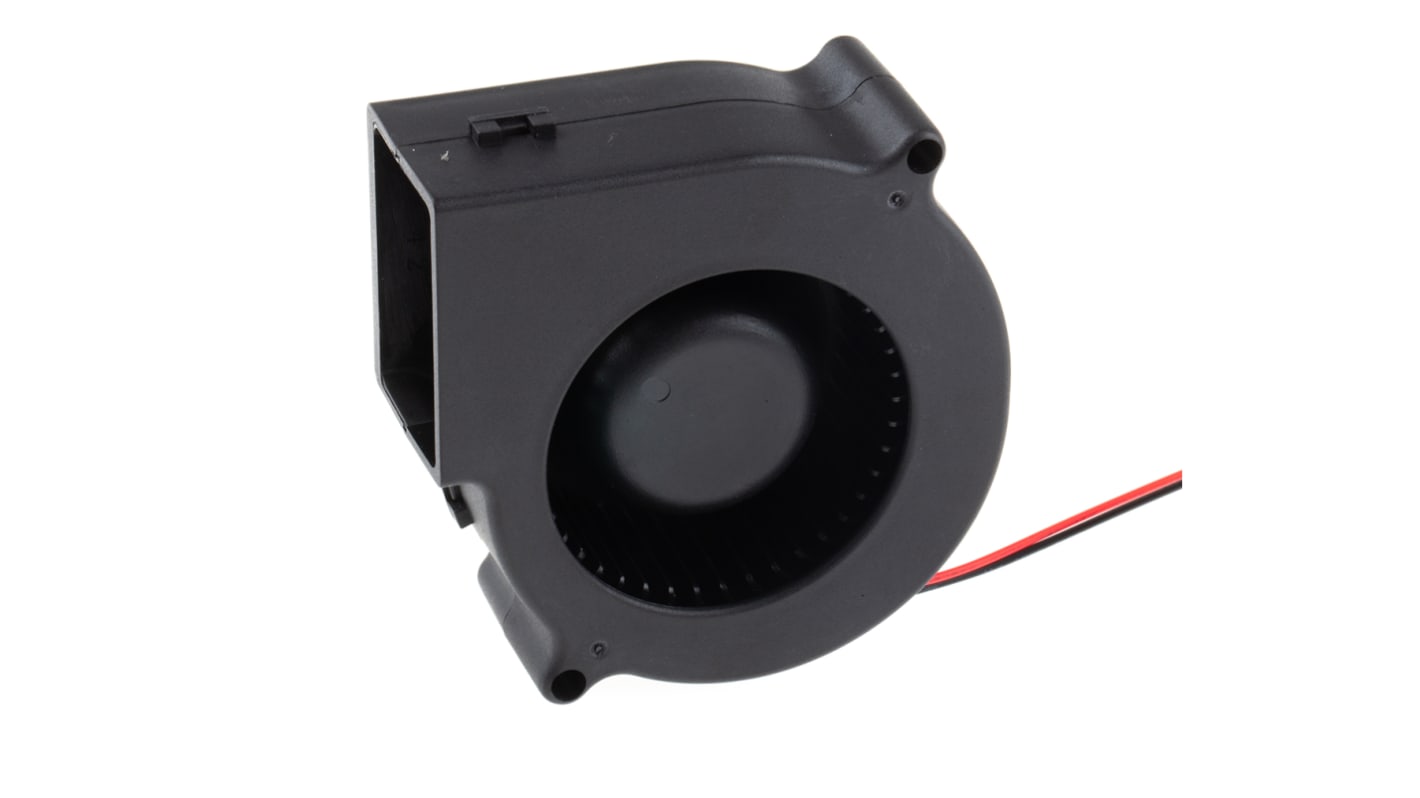

Sunon PMB Series Centrifugal Fan, 12 V dc, 7.5cfm, DC Operation, 75.7 x 75.7 x 30mm
- RS Stock No.:
- 126-177
- Mfr. Part No.:
- PMB1275PNB4-AY(2).GN
- Brand:
- Sunon
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 126-177
- Mfr. Part No.:
- PMB1275PNB4-AY(2).GN
- Brand:
- Sunon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sunon | |
| Supply Voltage | 12 V dc | |
| Blower Type | Blower | |
| AC or DC Operation | DC | |
| Air Flow | 7.5cfm | |
| Series | PMB | |
| Height | 75.7mm | |
| Width | 75.7mm | |
| Depth | 30mm | |
| Dimensions | 75.7 x 75.7 x 30mm | |
| Fan Speed | 1900rpm | |
| Noise Level | 28dB(A) | |
| Bearing Type | Ball | |
| Mounting Hole Spacing | 61.8 x 48.2mm | |
| Commutation Type | Brushless | |
| Static Pressure | 0.15in/H2O | |
| Maximum Current | 80mA | |
| Direction of Curve | Backward | |
| Horizontal Hole Spacing | 61.8mm | |
| Vertical Hole Spacing | 48.2mm | |
| Termination Type | Lead Wire | |
| Mounting Hole Diameter | 4.5mm | |
Select all | ||
|---|---|---|
Brand Sunon | ||
Supply Voltage 12 V dc | ||
Blower Type Blower | ||
AC or DC Operation DC | ||
Air Flow 7.5cfm | ||
Series PMB | ||
Height 75.7mm | ||
Width 75.7mm | ||
Depth 30mm | ||
Dimensions 75.7 x 75.7 x 30mm | ||
Fan Speed 1900rpm | ||
Noise Level 28dB(A) | ||
Bearing Type Ball | ||
Mounting Hole Spacing 61.8 x 48.2mm | ||
Commutation Type Brushless | ||
Static Pressure 0.15in/H2O | ||
Maximum Current 80mA | ||
Direction of Curve Backward | ||
Horizontal Hole Spacing 61.8mm | ||
Vertical Hole Spacing 48.2mm | ||
Termination Type Lead Wire | ||
Mounting Hole Diameter 4.5mm | ||
- COO (Country of Origin):
- CN
Sunon Blower
The Sunon blower has an airflow of 12.74m3/h and a supply voltage rating of 12VDC. It has a ball bearing and 2 wire power connection lead. The fan speed of 1900rpm provides axial air intake centrifugal air exhaust out of the outlet direction of airflow with a backwards-curved impeller. This is sturdy, versatile and boasts a long performance life. It is 75.7mm long, 75.7mm wide and 30mm deep.
Features and Benefits
Low acoustic noise level
Auto restart function
Brushless DC motor
Class E insulation
Enclosure and impeller material is thermoplastic
High-temperature endurance
Longer lifespan
Operating temperature ranging between -10°C and 70°C
Auto restart function
Brushless DC motor
Class E insulation
Enclosure and impeller material is thermoplastic
High-temperature endurance
Longer lifespan
Operating temperature ranging between -10°C and 70°C
Applications
Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Automobile
Railway
Electronic products
Certifications
CE certified
cRUus certified
UL94V-0 approved
cRUus certified
UL94V-0 approved
