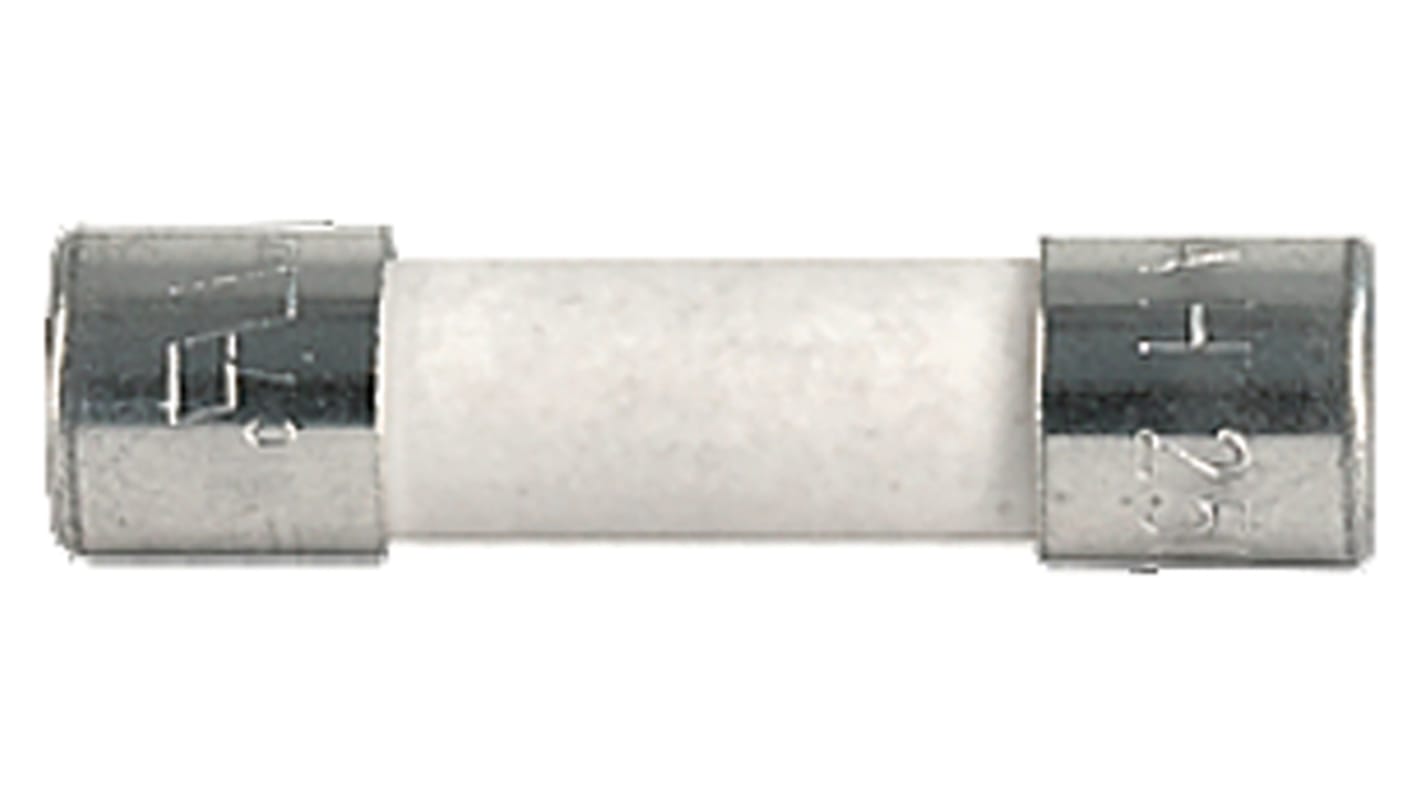

Schurter 630mA T Ceramic Cartridge Fuse, 5 x 20mm

View all Cartridge Fuses
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
866-3202
Mfr. Part No.:
0001.2502
Brand:
Schurter
Find similar products by selecting one or more attributes.
Select all

Brand

Schurter

Current Rating

630mA

Fuse Size

5 x 20mm

Fuse Speed

T

Voltage Rating

250 V ac, 300V dc

Body Material

Ceramic

UL Class

UL 248-14

Series

SPT 5X20

COO (Country of Origin):
CN

SPT Series


Professional range of Schurter fuses from the SPT series. The fuses are available in a variety of current ratings.

5 x 20 or 6.3 x 32mm options
Pigtail Type
Nickle Plated Copper Alloy endcaps
Ceramic
Cylindrical
Mounting Style - Holder/Clip


Very high breaking capacity
Good mechanical/vibration characteristics


Typical Applications include short-circuit protection of semiconductors such as thyristors, diodes and triacs.
Note that with values of greater than 6.3A the use of open type fuseholders is recommended, to reduce the risk of nuisance tripping at or near full rated current.
