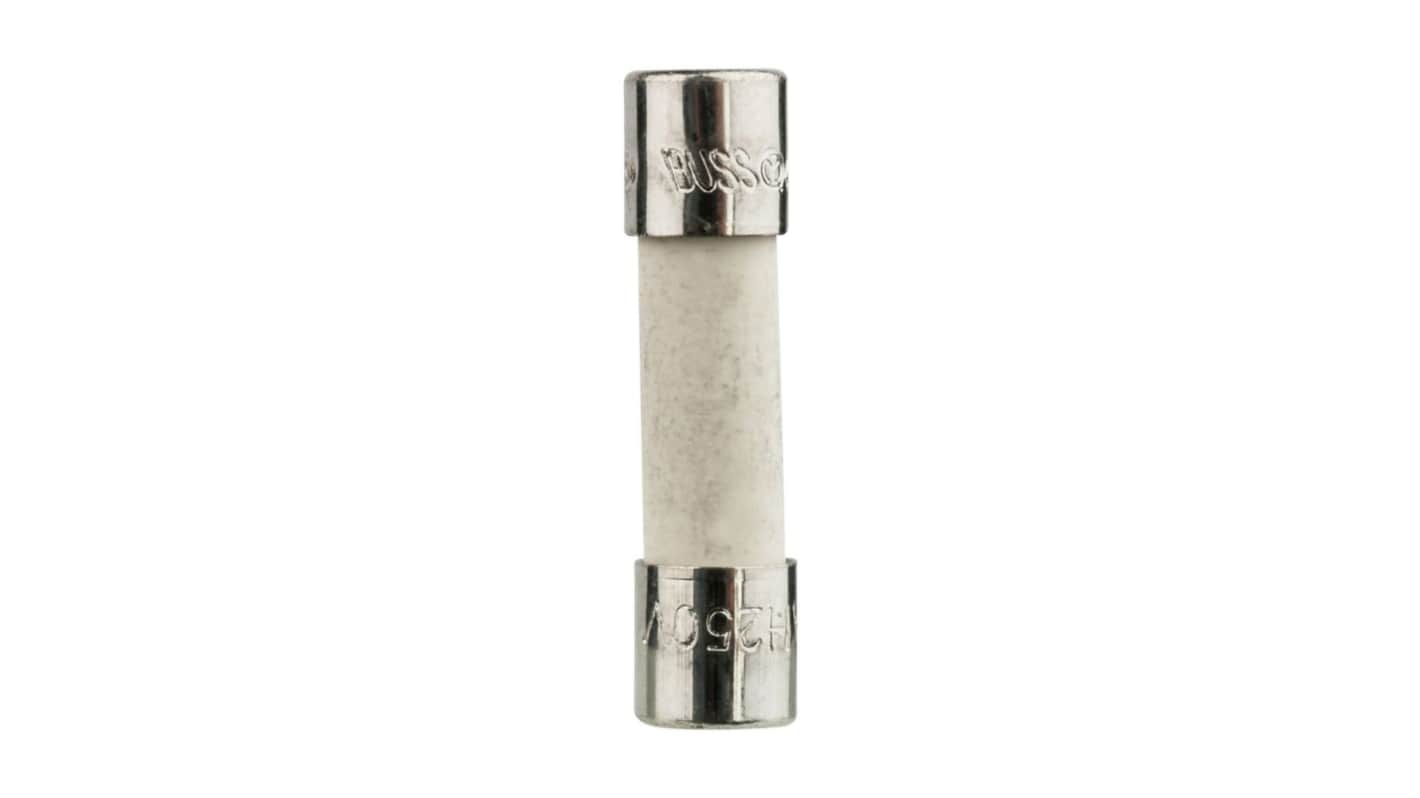

Eaton 100mA F Ceramic Cartridge Fuse, 5 x 20mm

View all Cartridge Fuses

Subtotal (1 pack of 10 units)*

£14.35

(exc. VAT)

£17.22

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 560 unit(s) ready to ship
  • Plus 30 unit(s) ready to ship from another location
  • Plus 470 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 +£1.435£14.35

*price indicative

RS Stock No.:
537-1537
Mfr. Part No.:
S501-100-R
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Current Rating

100mA

Fuse Size

5 x 20mm

Fuse Speed

F

Voltage Rating

250V ac

Body Material

Ceramic

Series

S501

COO (Country of Origin):
CN

Eaton S501 Series Cartridge Fuse, 100mA Current Rating, 5 x 20 mm Fuse size - S501-100-R


This cartridge fuse is designed to provide fast-acting protection for electrical circuits. The 5 x 20 mm ceramic body houses a current rating of 100mA and can safely manage voltages of up to 250V AC and 32V DC. Crafted in accordance with IEC 60127-2 standards, it ensures dependable performance in various applications.

Features & Benefits


• Fast-acting design for immediate circuit protection
• Available with optional axial leads for flexible wiring
• Durable ceramic tube construction for enhanced reliability
• Nickel brass end cap provides robust and secure connections
• Designed to fit standard 5 x 20 mm fuse holders
• High performance according to stringent fuse specifications

Applications


• Ideal for use in automation systems
• Suitable for electronic circuit protection
• Used in mechanical equipment systems
• Effective in industrial electrical installations

What types of lead options are available for this fuse?


It can be modified for optional axial leads, allowing for easier installation and integration into various circuits. This feature is particularly beneficial when working in tight spaces or specific layouts.

What is the importance of the F-speed classification?


The F-speed classification indicates fast-acting capability, ensuring that the fuse will respond quickly to overloads, preventing potential damage to sensitive electronic components or circuits.

How does the body material contribute to the fuse's performance?


The ceramic body effectively withstands high temperatures and provides better insulation, contributing to the overall safety and reliability of the electrical circuit it protects.

Note

Eaton formerly known as Bussmann

Approvals

UL,SEMKO,VDE


Very high breaking capacity
Good mechanical/vibration characteristics


Typical Applications include short-circuit protection of semiconductors such as thyristors, diodes and triacs.
Note that with values of greater than 6.3A the use of open type fuseholders is recommended, to reduce the risk of nuisance tripping at or near full rated current.
