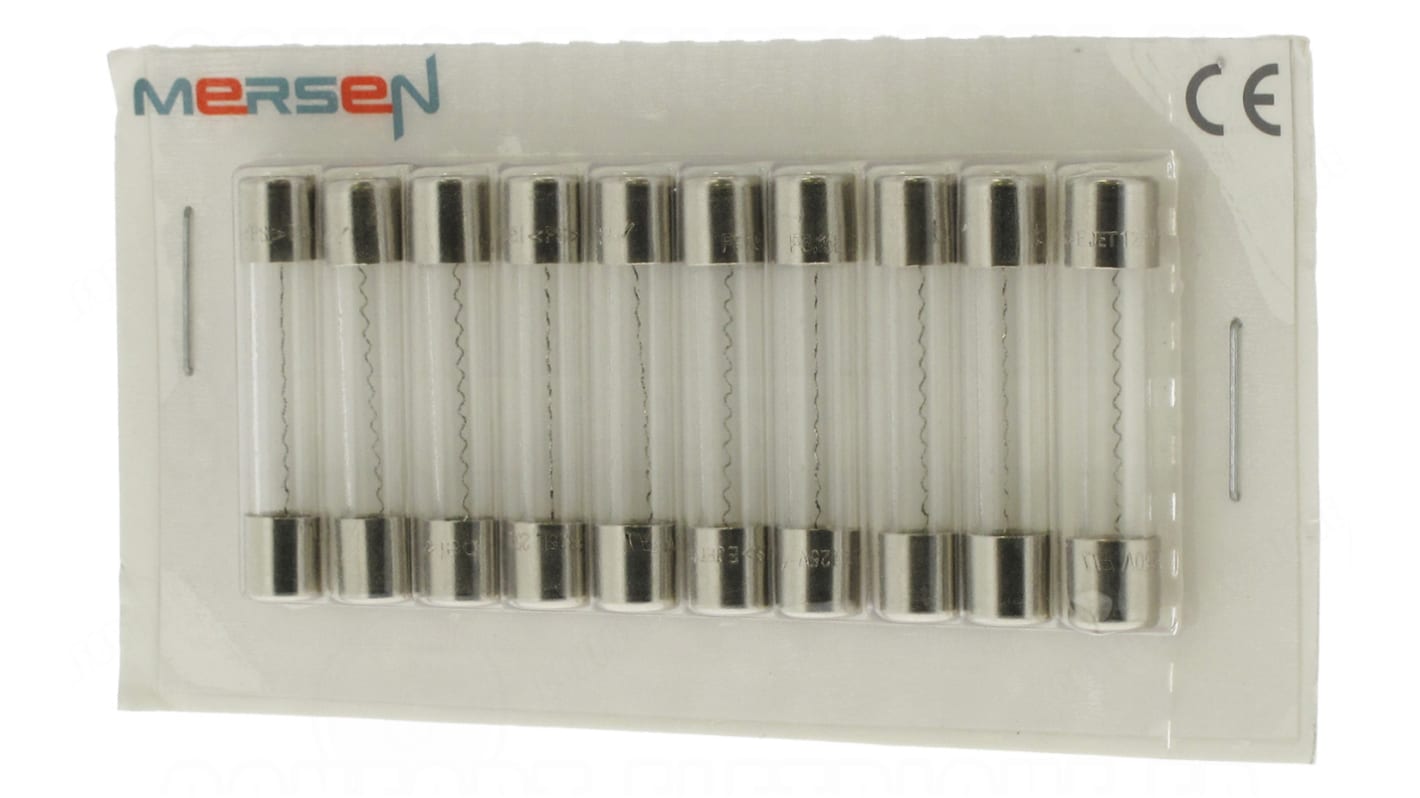

Mersen 10 A Fast Acting Glass Cartridge Fuse, 6 x 32 mm
- RS Stock No.:
- 270-3035
- Mfr. Part No.:
- F090579 / MI6SF6V10
- Brand:
- Mersen
Subtotal (1 box of 10 units)*
£5.66
(exc. VAT)
£6.79
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 120 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 10 + | £0.566 | £5.66 |
*price indicative
- RS Stock No.:
- 270-3035
- Mfr. Part No.:
- F090579 / MI6SF6V10
- Brand:
- Mersen
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Mersen | |
| Product Type | Cartridge Fuse | |
| Current Rating | 10 A | |
| Fuse Size | 6 x 32 mm | |
| Fuse Speed | Fast Acting | |
| Voltage | 250 V ac | |
| Body Material | Glass | |
| Overall Length | 31.8mm | |
| Fuse Characteristics | Fast Acting | |
| Series | IEC Miniature Fuses 6 x32 - Quick acting - 3SF - 60VAC to 250VAC | |
| Diameter | 6.4 mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Mersen | ||
Product Type Cartridge Fuse | ||
Current Rating 10 A | ||
Fuse Size 6 x 32 mm | ||
Fuse Speed Fast Acting | ||
Voltage 250 V ac | ||
Body Material Glass | ||
Overall Length 31.8mm | ||
Fuse Characteristics Fast Acting | ||
Series IEC Miniature Fuses 6 x32 - Quick acting - 3SF - 60VAC to 250VAC | ||
Diameter 6.4 mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
The Mersen type Fast Acting NH fuse-links are full range breaking capacity fuse-links and are used to protect cables and equipment. They can interrupt any current surge, from The lowest fusing current up to their breaking capacity, and so can be used alone as protection. They also protect electrical devices and industrial set-ups from The electrodynamic effects of very high short-circuit currents.
Double indicator
Lead free contact blades
Fuse Speed - Fast Acting
