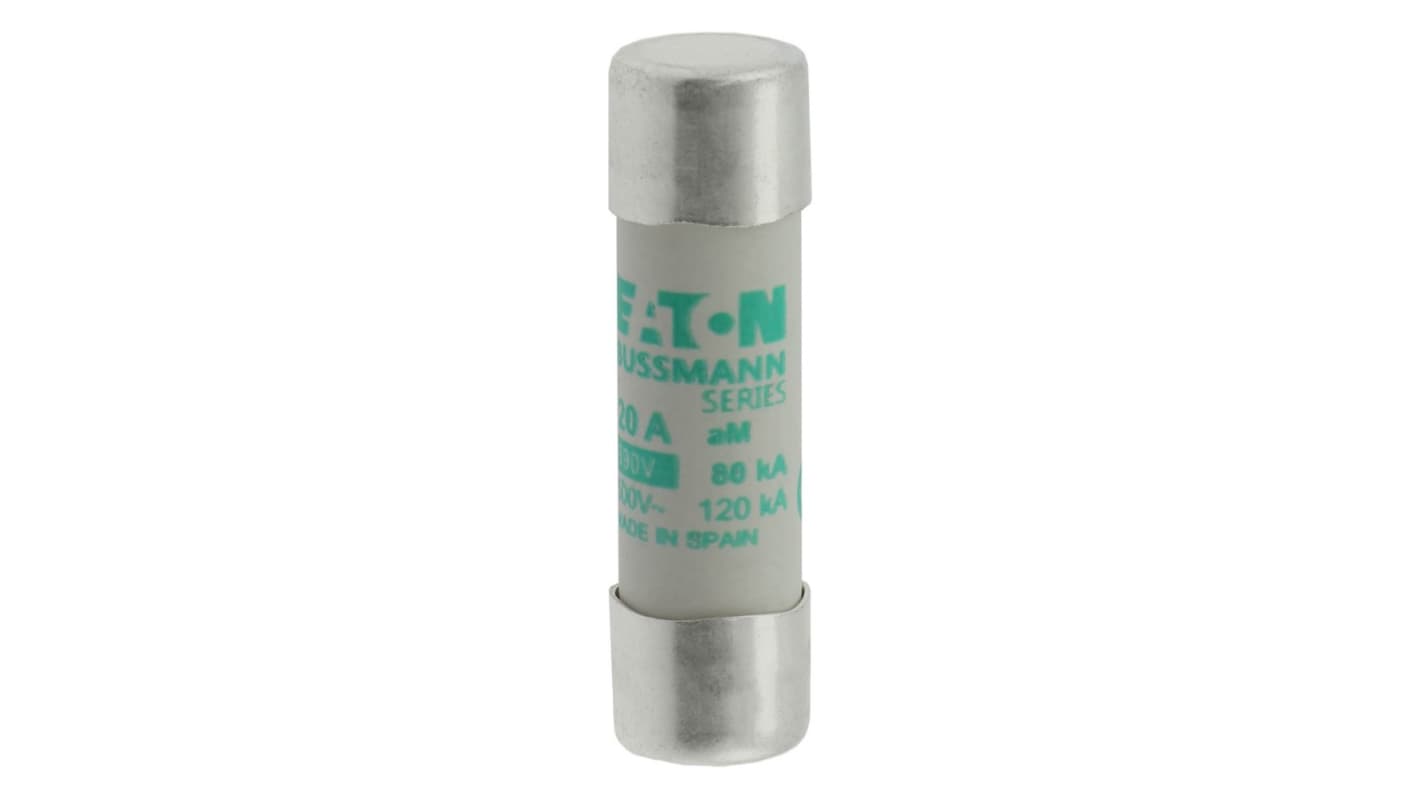

Eaton 20A Ceramic Cartridge Fuse, 14 x 51mm
- RS Stock No.:
- 181-8888
- Mfr. Part No.:
- C14M20
- Brand:
- Eaton
Bulk discount available
Subtotal (1 unit)*
£2.25
(exc. VAT)
£2.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 95 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £2.25 |
| 2 - 4 | £2.13 |
| 5 + | £2.01 |
*price indicative
- RS Stock No.:
- 181-8888
- Mfr. Part No.:
- C14M20
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 20A | |
| Fuse Size | 14 x 51mm | |
| Voltage Rating | 690V ac | |
| Body Material | Ceramic | |
| Application Category | aM | |
| Series | Eaton Bussmann | |
| Fuse Standard | IEC | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 20A | ||
Fuse Size 14 x 51mm | ||
Voltage Rating 690V ac | ||
Body Material Ceramic | ||
Application Category aM | ||
Series Eaton Bussmann | ||
Fuse Standard IEC | ||
- COO (Country of Origin):
- ES
Eaton Cartridge Fuse, 20A Current Rating, 14 x 51mm Fuse size - C14M20
This cartridge fuse is designed for low voltage applications, rated at 20A with a voltage of 690V AC. It features a cylindrical form measuring 14 x 51mm, ensuring compatibility with various electrical systems. Made from durable ceramic material, it meets IEC standards, making it a reliable choice for industrial settings.
Features & Benefits
• High breaking capacity of 80kA for enhanced safety
• Designed for motor protection in industrial applications
• Compatible with switchgear protection systems
• Utilisation category aM for motor protection compliance
• Adheres to IEC standards for reliability and quality
• Robust ceramic body for optimal performance and longevity
• Designed for motor protection in industrial applications
• Compatible with switchgear protection systems
• Utilisation category aM for motor protection compliance
• Adheres to IEC standards for reliability and quality
• Robust ceramic body for optimal performance and longevity
Applications
• Used in motor protection circuits
• Suitable for integration within switchgear systems
• Applied in various industrial electrical installations
• Ideal for safety fuse inserts across electrical devices
• Suitable for integration within switchgear systems
• Applied in various industrial electrical installations
• Ideal for safety fuse inserts across electrical devices
What is the breaking capacity of this fuse and its implications?
The breaking capacity of this fuse is 80kA, allowing it to safely interrupt fault currents, protecting equipment and circuits from damage due to overloads or short circuits.
How does its size contribute to its usability in applications?
The 14 x 51mm size ensures compatibility with standard fuse holders, facilitating easy installation and replacement in various industrial systems.
What makes this fuse suitable for use with motors?
It falls under the aM application category, specifically tailored for motor protection, ensuring reliable operation and safeguarding against faults in motor circuits.
Is there a difference between this fuse and standard general-purpose fuses?
Yes, this fuse is specifically designed for low voltage and motor protection, whereas standard general-purpose fuses may not accommodate the same pressure and current ratings required for motor applications.
Note
Eaton formerly known as Bussmann
