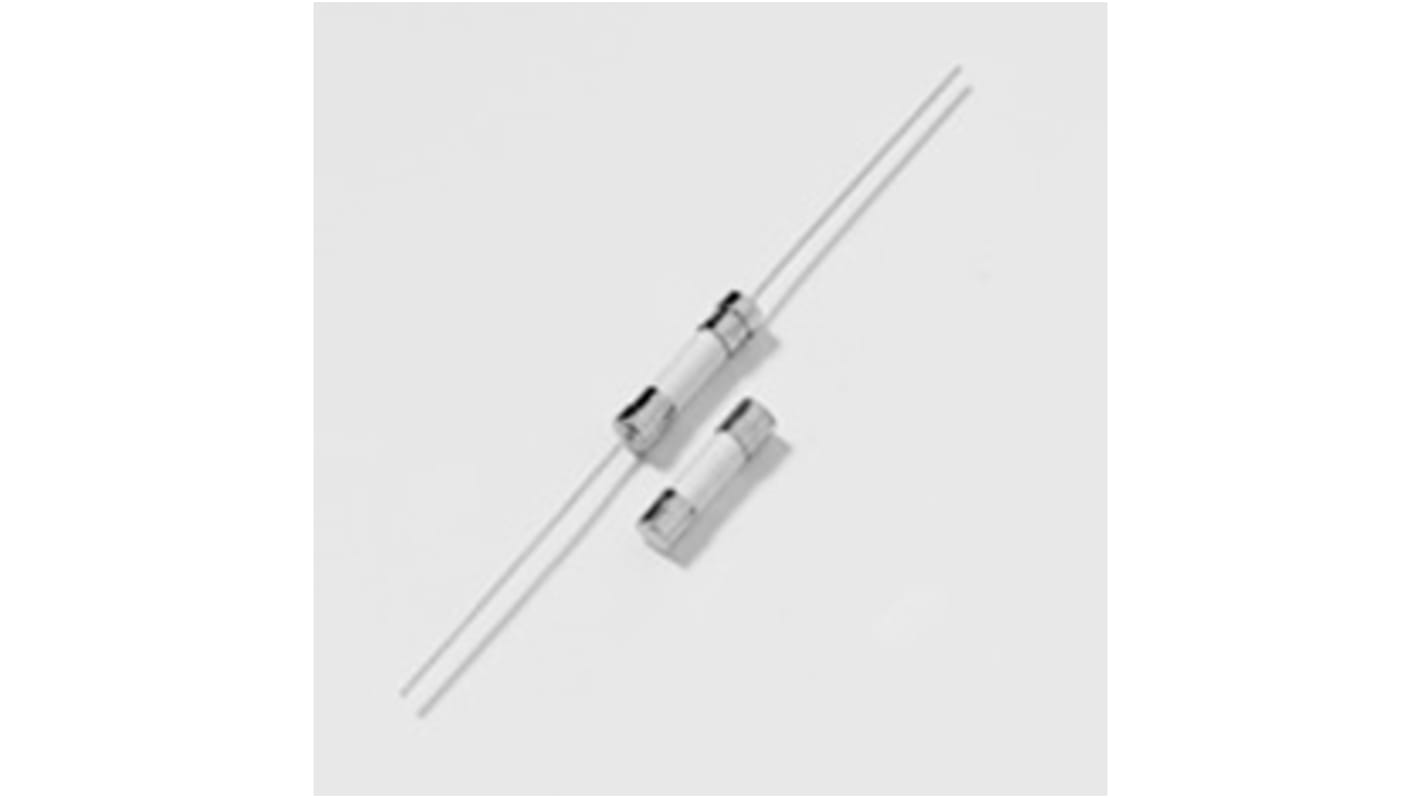

Wickmann 12A T Ceramic Cartridge Fuse, 5 x 20mm
- RS Stock No.:
- 174-0253
- Mfr. Part No.:
- 0215012.MXEP
- Brand:
- Wickmann
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 174-0253
- Mfr. Part No.:
- 0215012.MXEP
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Current Rating | 12A | |
| Fuse Size | 5 x 20mm | |
| Fuse Speed | T | |
| Voltage Rating | 250V ac | |
| Body Material | Ceramic | |
| Series | 215 | |
| Fuse Standard | IEC, RoHS | |
Select all | ||
|---|---|---|
Brand Wickmann | ||
Current Rating 12A | ||
Fuse Size 5 x 20mm | ||
Fuse Speed T | ||
Voltage Rating 250V ac | ||
Body Material Ceramic | ||
Series 215 | ||
Fuse Standard IEC, RoHS | ||
- COO (Country of Origin):
- CN
The 215 series is 5x20, Ceramic body, Time-Lag type Cartridge fuse. With the extension into higher current ratings beyond existing 12A, from 15A up to 25A in cartridge version, in particular for 20A and 25A, it offers designers better flexibility in circuit protection design for high current applications. The 215 Series has remarkable interrupting capability at operating voltage of 250VAC.In addition, it can be used in AC applications, and it provides a smaller footprint of 5 x 20mm as compared to 6.3 x 32mm for same applications.
Features:
Offer high ampere ratings
Provide remarkable interrupting capacity
Applications:
Primary and Secondary protection for White Goods, UPS/Power Supplies, High current applications
Offer high ampere ratings
Provide remarkable interrupting capacity
Applications:
Primary and Secondary protection for White Goods, UPS/Power Supplies, High current applications
