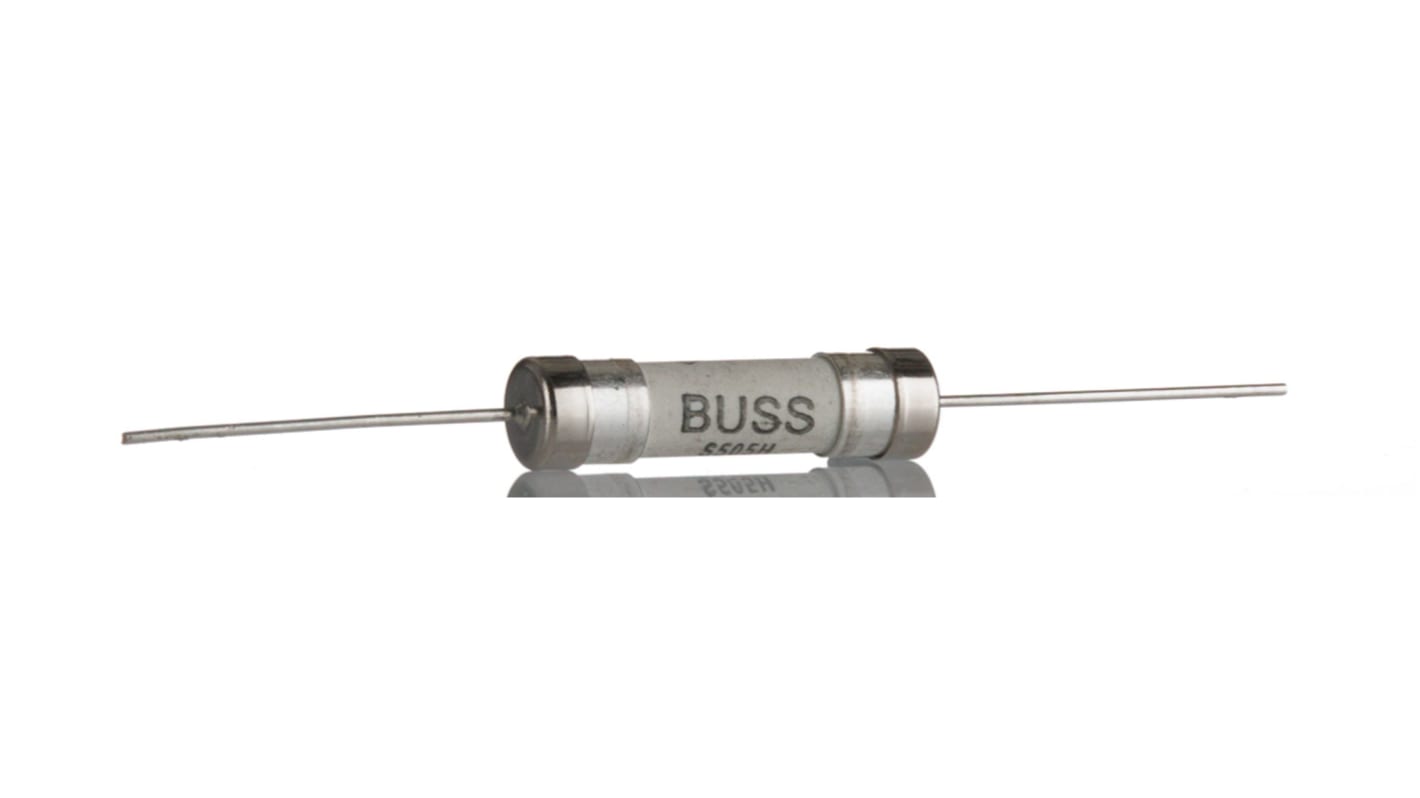

Eaton 3.15A T Ceramic Cartridge Fuse, 5 x 20mm
- RS Stock No.:
- 171-6779
- Mfr. Part No.:
- S505H-V-3-15-R
- Brand:
- Eaton
Subtotal (1 pack of 5 units)*
£2.01
(exc. VAT)
£2.41
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,015 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £0.402 | £2.01 |
*price indicative
- RS Stock No.:
- 171-6779
- Mfr. Part No.:
- S505H-V-3-15-R
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Current Rating | 3.15A | |
Fuse Size | 5 x 20mm | |
Fuse Speed | T | |
Voltage Rating | 250V ac | |
Body Material | Ceramic | |
Select all | ||
---|---|---|
Brand Eaton | ||
Current Rating 3.15A | ||
Fuse Size 5 x 20mm | ||
Fuse Speed T | ||
Voltage Rating 250V ac | ||
Body Material Ceramic | ||
Eaton Cartridge Fuse, 3.15A Current Rating, 5 x 20mm Fuse size - S505H-V-3-15-R
This fuse features a 400Vdc and 500-600 Vac time-delay rating, with a compact 5 x 20mm size. It includes agency approvals from cURus, CCC, and PSE, ensuring compliance with international safety standards.
Features & Benefits
• High breaking capacity handles faults effectively
• Time-delay capability protects against transient surges
• Rated for 250Vac
• Complies with IEC 60127-2 standards
• Ceramic construction with plated end caps for durability
• Optional axial leads for flexible installation
• Time-delay capability protects against transient surges
• Rated for 250Vac
• Complies with IEC 60127-2 standards
• Ceramic construction with plated end caps for durability
• Optional axial leads for flexible installation
Applications
• Power supplies and adapters
• Desktops and notebooks
• TVs and display systems
• Lighting ballasts and battery chargers
• Game systems and printers
• Air conditioning units
• Desktops and notebooks
• TVs and display systems
• Lighting ballasts and battery chargers
• Game systems and printers
• Air conditioning units
Will it operate effectively in high-temperature environments?
Yes, it operates within a temperature range of -55°C to +125°C.
Does it comply with international safety standards?
Yes, it meets IEC standards and has multiple certifications.
Note
Eaton formerly known as Bussmann
