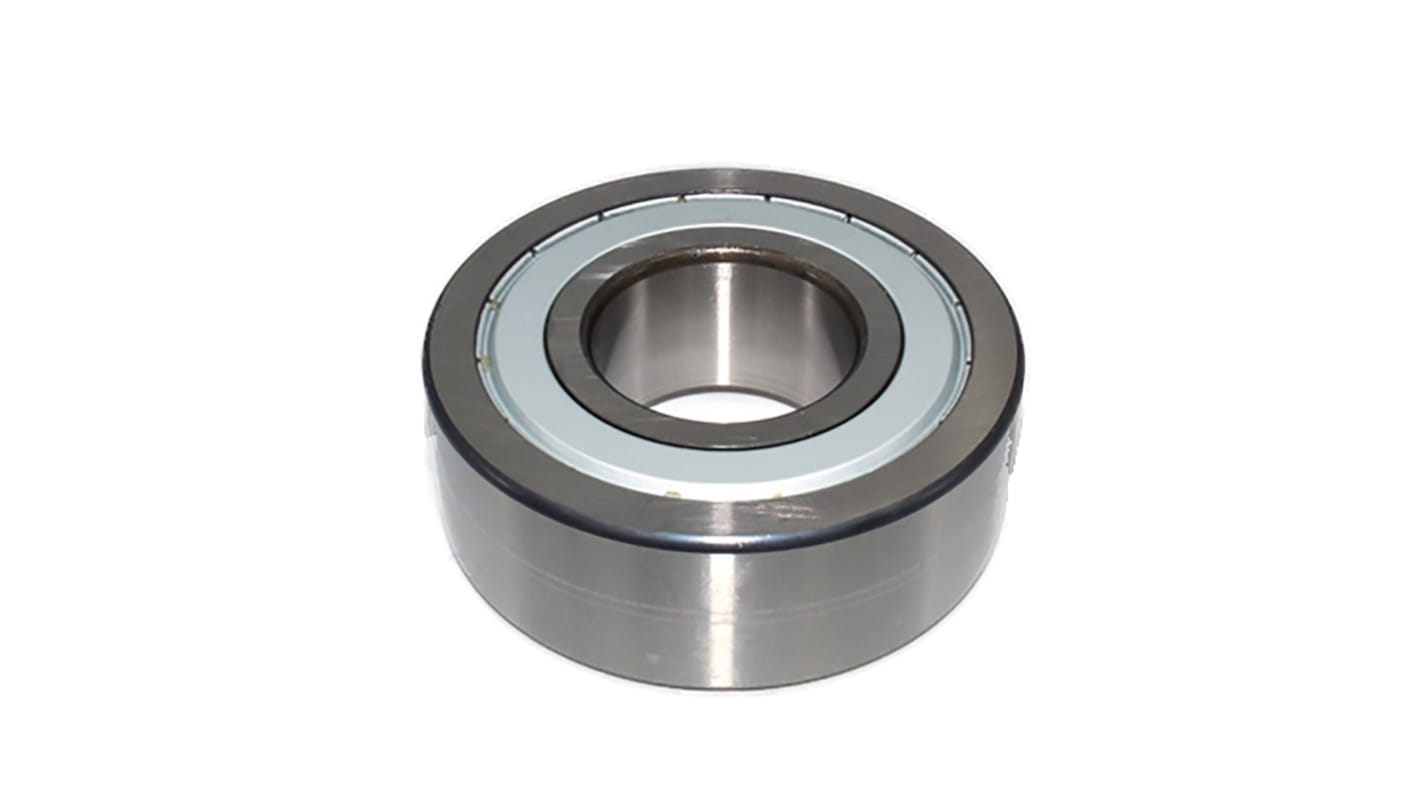

Yoke Cam Follower LR5208-X-2Z-TVH-XL, 40mm ID, 85mm OD
- RS Stock No.:
- 194-7248
- Mfr. Part No.:
- LR5208-X-2Z-TVH-XL
- Brand:
- INA
Bulk discount available
Subtotal (1 unit)*
£120.26
(exc. VAT)
£144.31
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £120.26 |
5 - 9 | £115.46 |
10 - 24 | £113.05 |
25 + | £110.64 |
*price indicative
- RS Stock No.:
- 194-7248
- Mfr. Part No.:
- LR5208-X-2Z-TVH-XL
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | INA | |
Roller Diameter | 85mm | |
Roller Length | 30.2mm | |
Type | Yoke | |
Bore Size | 40mm | |
Static Load Rating | 30000N | |
Dynamic Load Rating | 36500N | |
Ring Slide & Track System Bearing Type | Eccentric | |
Material | Steel | |
Select all | ||
---|---|---|
Brand INA | ||
Roller Diameter 85mm | ||
Roller Length 30.2mm | ||
Type Yoke | ||
Bore Size 40mm | ||
Static Load Rating 30000N | ||
Dynamic Load Rating 36500N | ||
Ring Slide & Track System Bearing Type Eccentric | ||
Material Steel | ||
Ball bearing track rollers: Are ready-to-fit, single or double row rolling bearings based on deep groove or angular contact ball bearings
Are supplied with or without a stud (designs without a stud are mounted on shafts or studs)
Have particularly thick-walled outer rings with a crowned or cylindrical outside surface
Can support high radial loads
Tolerate axial loads which are due to small misalignment defects, skewed running or temporary contact running impacts
Are sealed on both sides
Are also available with a plastic tyre on the outer ring for low-noise running
Are not mounted in a housing bore, but are supported on a flat mating track
Can be adjusted to the mating track in the design with the eccentric collar, thus permitting, for example, larger manufacturing tolerances in the adjacent construction
Are supplied with or without a stud (designs without a stud are mounted on shafts or studs)
Have particularly thick-walled outer rings with a crowned or cylindrical outside surface
Can support high radial loads
Tolerate axial loads which are due to small misalignment defects, skewed running or temporary contact running impacts
Are sealed on both sides
Are also available with a plastic tyre on the outer ring for low-noise running
Are not mounted in a housing bore, but are supported on a flat mating track
Can be adjusted to the mating track in the design with the eccentric collar, thus permitting, for example, larger manufacturing tolerances in the adjacent construction
