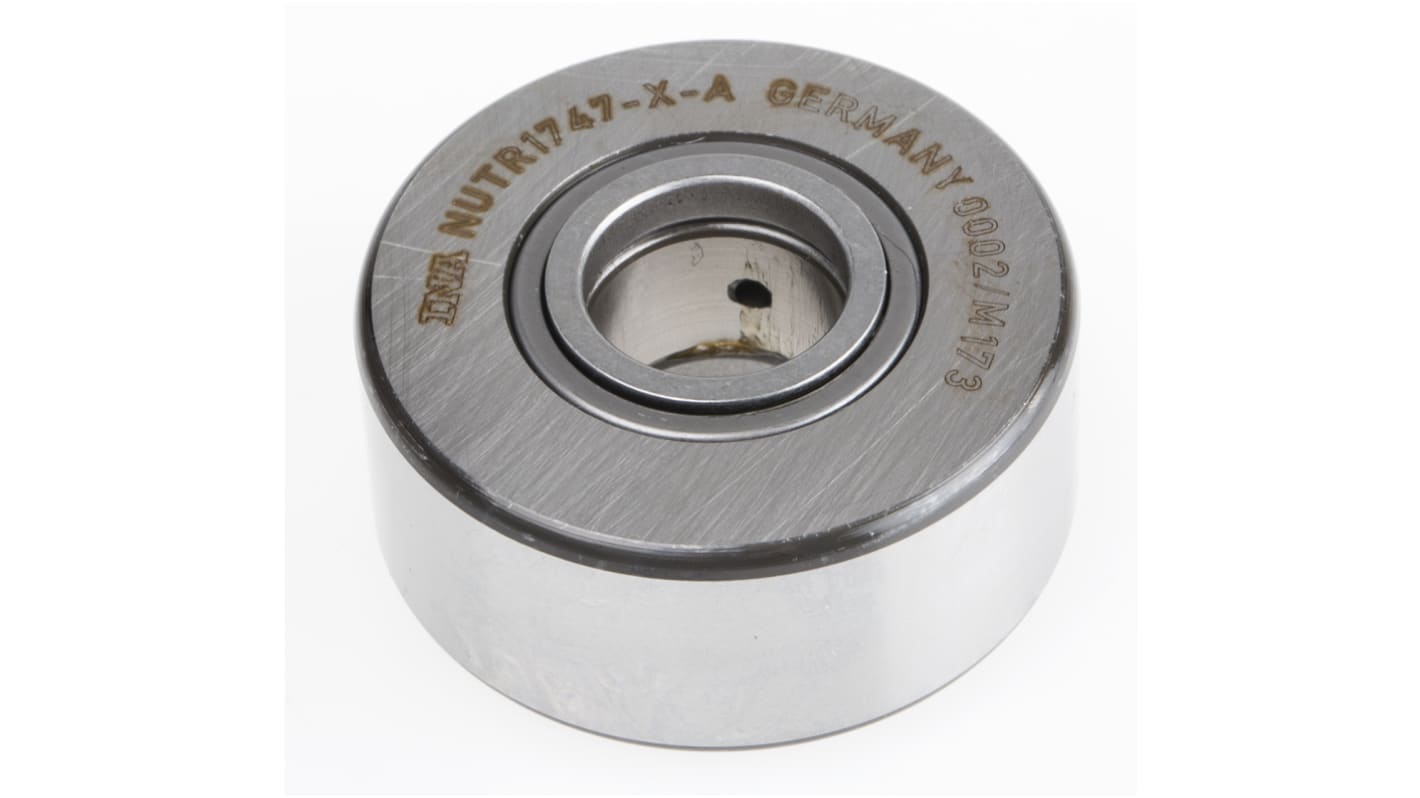

INA Yoke Cam Follower NUTR1747-X-A 17mm ID, 47 mm OD
- RS Stock No.:
- 174-1333
- Mfr. Part No.:
- NUTR1747-X-A
- Brand:
- INA
Subtotal (1 unit)*
£98.45
(exc. VAT)
£118.14
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £98.45 |
*price indicative
- RS Stock No.:
- 174-1333
- Mfr. Part No.:
- NUTR1747-X-A
- Brand:
- INA
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Roller Diameter | 47mm | |
| Product Type | Cam Follower | |
| Sub Type | Yoke | |
| Bore Diameter | 17mm | |
| Static Load Rating | 30.5kN | |
| Dynamic Load Rating | 21.6kN | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand INA | ||
Roller Diameter 47mm | ||
Product Type Cam Follower | ||
Sub Type Yoke | ||
Bore Diameter 17mm | ||
Static Load Rating 30.5kN | ||
Dynamic Load Rating 21.6kN | ||
Standards/Approvals No | ||
Yoke type track rollers are single or double row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full complement needle roller or cylindrical roller sets. Yoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running, they are suitable for applications such as cam gears, bed ways and conveying equipment. The bearings are available with and without an inner ring and in both sealed and open versions.
Outside surface profile of the outer ring
Yoke type track rollers without inner ring
With cage, axial guidance of outer ring
Sealing
Lubrication
Yoke type track rollers with inner ring
Axial guidance of outer ring
Anti-corrosion protection
Sealing
Lubrication
Operating temperature
Suffixes
