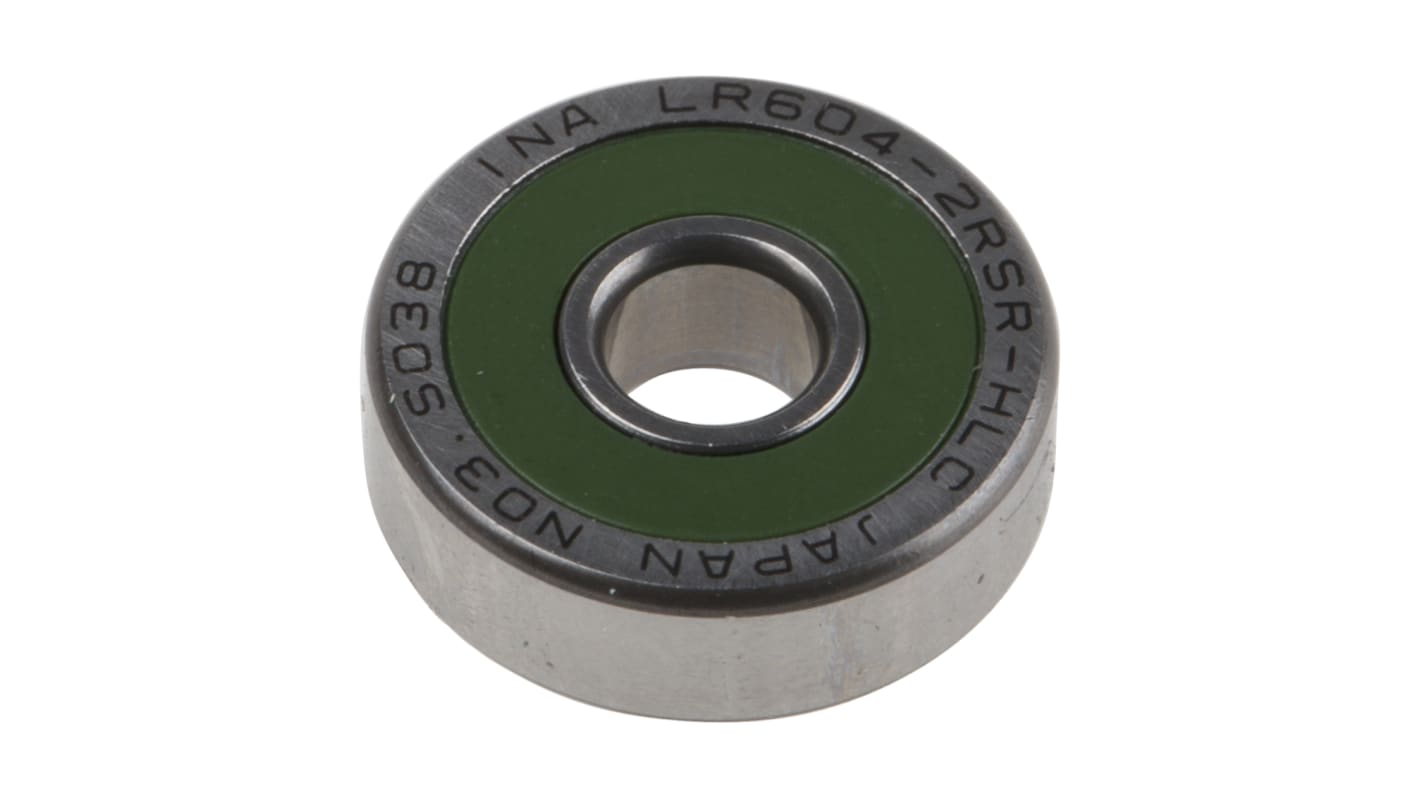

Yoke Cam Follower LR604-2RSR-HLC, 4mm ID, 13mm OD

View all Cam Followers
Bulk discount available

Subtotal (1 unit)*

£24.24

(exc. VAT)

£29.09

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 9 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£24.24
5 - 9£23.29
10 - 24£22.78
25 +£22.33

*price indicative

RS Stock No.:
174-1168
Mfr. Part No.:
LR604-2RSR-HLC
Brand:
INA
Find similar products by selecting one or more attributes.
Select all

Brand

INA

Roller Diameter

13mm

Roller Length

4mm

Type

Yoke

Bore Size

4mm

Static Load Rating

350N

Dynamic Load Rating

920N

Ball bearing track rollers are self-retaining, single or double row ball bearings with particularly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions. The outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where they are inclined in relation to the mating track and edge stresses must be avoided. Ball bearing track rollers are available with an inner ring, with a stud and with a plastic tyre on the outer ring.

Outside surface profile of the outer ring
Yoke type track rollers
Anti-corrosion protection
Sealing
Lubrication
Stud type track rollers
Without eccentric collar
With eccentric collar
Sealing
Lubrication
Track rollers with plastic outer tyre
Outside surface profile of the outer ring
Maximum radial load
Sealing
Lubrication
Operating temperature
Suffixes
