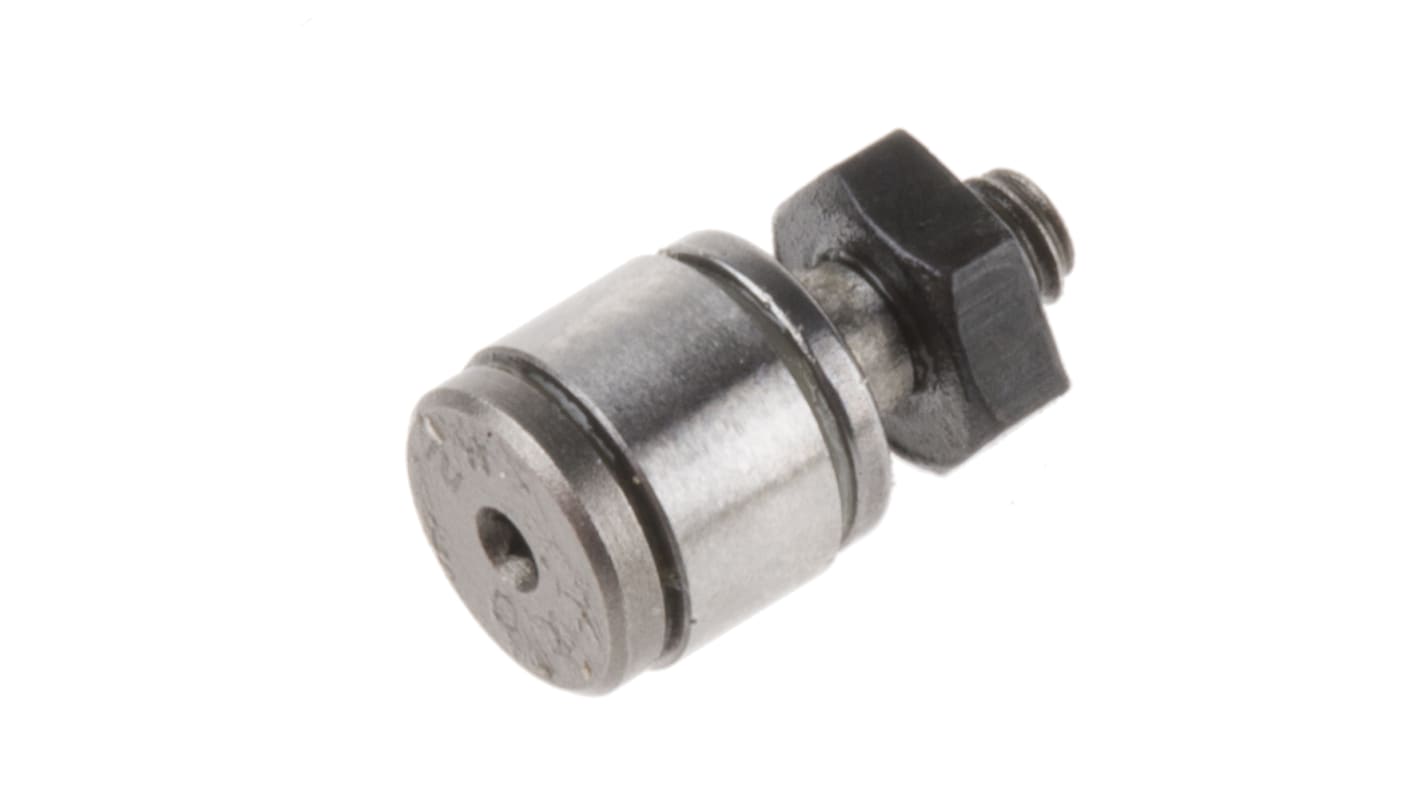

Miniature Caged Cam Follower CFS 2W, 2mm ID, 4.5mm OD

Subtotal (1 unit)*

£38.93

(exc. VAT)

£46.72

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£38.93

*price indicative

RS Stock No.:
125-1217
Mfr. Part No.:
CFS 2W
Brand:
IKO Nippon Thompson
Find similar products by selecting one or more attributes.
Select all

Brand

IKO Nippon Thompson

Roller Diameter

4.5mm

Roller Length

8.5mm

Type

Miniature Caged

Bore Size

2mm

Static Load Rating

202N

Dynamic Load Rating

288N

Material

High Carbon Steel

COO (Country of Origin):
JP

Miniature Type Cam Followers CFS


The miniature type cam followers from IKO are some of the smallest cam followers in the world. Designed to be compact, they have a stud diameter ranging from 1.4 mm to 6 mm and an outside diameter from 4 mm to 13 mm.
Cam followers with a thrust washer have high wear and heat resistance between the outer ring and the stud head.
Stainless steel cam followers are corrosion resistant and can be used in oil-inhibited areas, water mist environments and clean rooms.
The CF1.4WV cam follower is the smallest in the world with a stud diameter of only 1.4 mm and an outside diameter of 4 mm. The follower has a hexagon socket enabling easy mounting, a full complement load type and thrust washers.

Features and Benefits


• Hexagon socket hole for easy mounting
• CFS1.4WV has full complement load capacity
• Thrust washer resistant to mounting errors
• CFS & CFSW - Made from high carbon steel
• CFSFW – Made from stainless steel
• Shield type seal structure
• Cylindrical outer ring
• Alvania grease S2

Product Application Information


Suitable for light loaded high accuracy cam mechanisms and linear motion follower bearings. This series can be used in various fields such as precision measuring devices, equipment for electronic parts and office appliances.
