Stud Cam Follower KR 22 PPA, 10mm ID, 22mm OD
- RS Stock No.:
- 514-192
- Mfr. Part No.:
- KR 22 PPA
- Brand:
- SKF
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 514-192
- Mfr. Part No.:
- KR 22 PPA
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Roller Diameter | 22mm | |
| Roller Length | 12mm | |
| Type | Stud | |
| Bore Size | 10mm | |
| Static Load Rating | 5000N | |
| Dynamic Load Rating | 4400N | |
| Ring Slide & Track System Bearing Type | Concentric | |
Select all | ||
|---|---|---|
Brand SKF | ||
Roller Diameter 22mm | ||
Roller Length 12mm | ||
Type Stud | ||
Bore Size 10mm | ||
Static Load Rating 5000N | ||
Dynamic Load Rating 4400N | ||
Ring Slide & Track System Bearing Type Concentric | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP

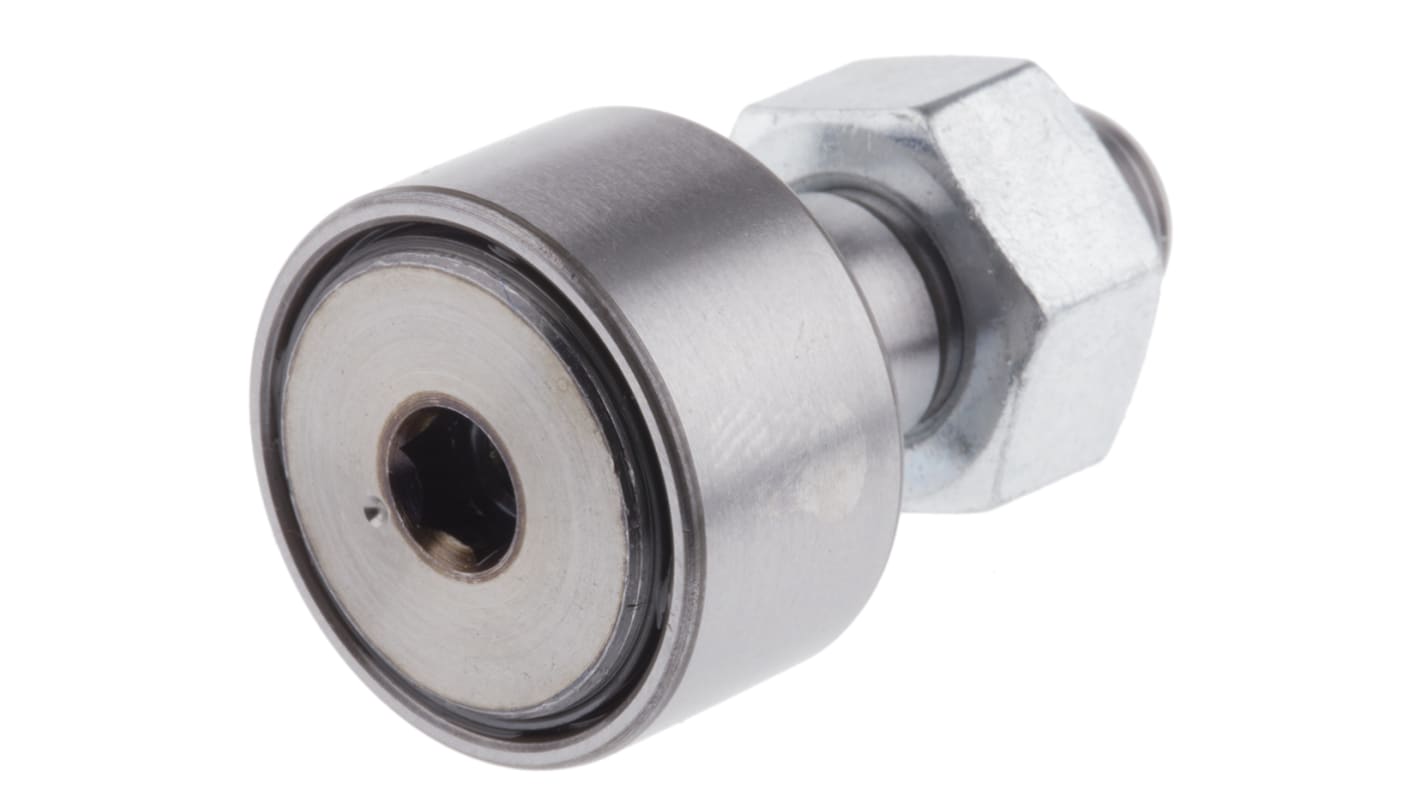

SKF Needle Roller Stud Cam Follower, 10mm ID, 22mm OD - KR 22 PPA
This stud cam follower from SKF is designed to convert rotary motion into linear motion. This motion is enabled by contact between the cam and the follower and is used for mechanical cams and roller-track applications. The cam follower bearing is fitted with needle rollers to support high radial loads and reduce friction when in motion, minimising wear and reducing maintenance. The thick outer ring makes it suitable for shock loads, while the innovative runner surface provides better stress distribution to prevent misalignment.
• High-performance polyamide (PA) axial slide rings are heat-resistant and reduce friction, extending the grease service life and ensuring durability
• Narrow gap in the slide ring in the radial direction keeps dust and dirt out to prevent malfunctions
• Broad operating temperature range of -30°C to +100°C for use in harsh conditions
• Narrow gap in the slide ring in the radial direction keeps dust and dirt out to prevent malfunctions
• Broad operating temperature range of -30°C to +100°C for use in harsh conditions
Applications
• Automation applications
• Wastewater treatment
• Metal processing
• Industrial assembly lines
• Wastewater treatment
• Metal processing
• Industrial assembly lines
How do I lubricate this unit?
The unit is supplied with grease nipples and can be lubricated at the head or thread end, making maintenance simple.
