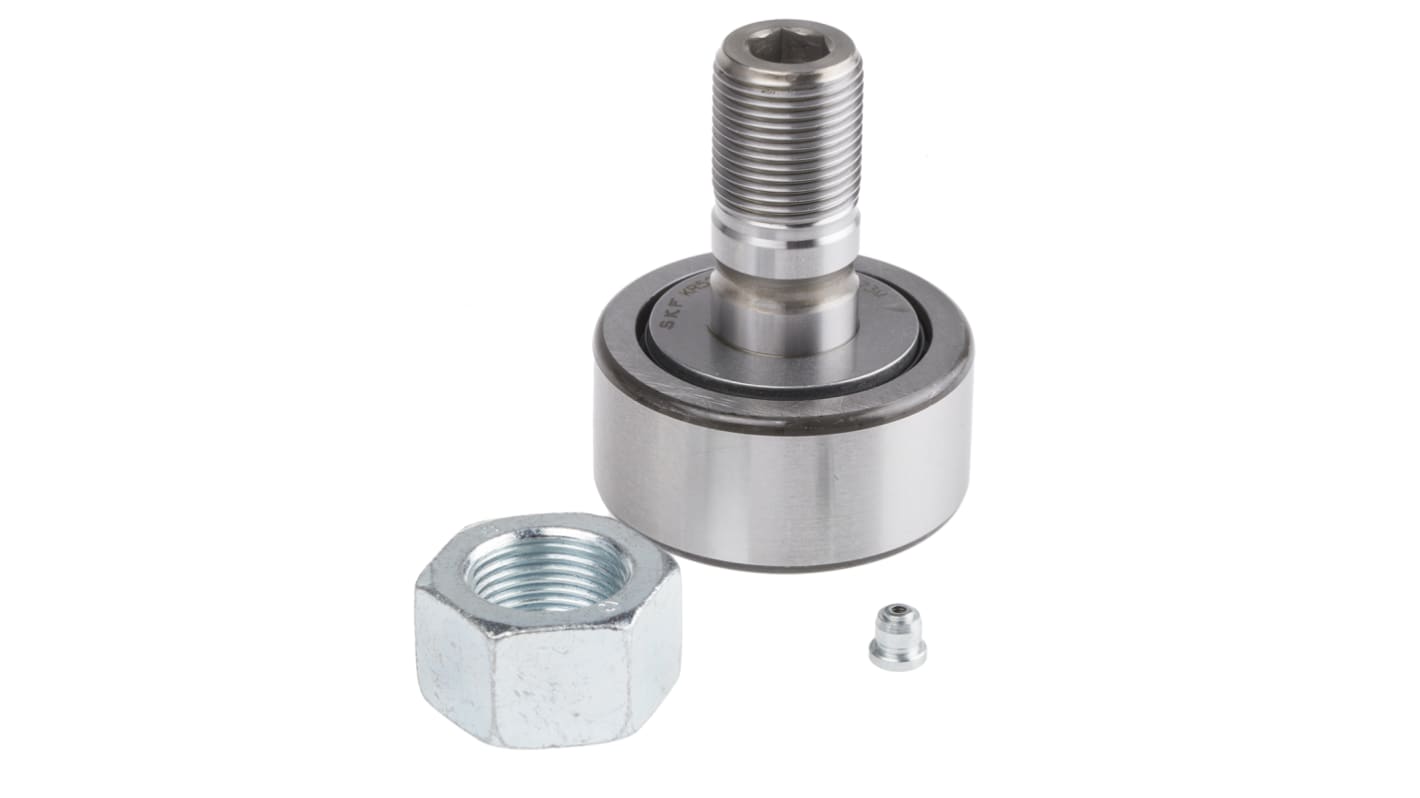

Stud Cam Follower KR 52 PPA, 20mm ID, 52mm OD
- RS Stock No.:
- 514-041
- Mfr. Part No.:
- KR 52 PPA
- Brand:
- SKF
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 514-041
- Mfr. Part No.:
- KR 52 PPA
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Roller Diameter | 52mm | |
| Roller Length | 24mm | |
| Type | Stud | |
| Bore Size | 20mm | |
| Static Load Rating | 32500N | |
| Dynamic Load Rating | 18700N | |
| Ring Slide & Track System Bearing Type | Concentric | |
Select all | ||
|---|---|---|
Brand SKF | ||
Roller Diameter 52mm | ||
Roller Length 24mm | ||
Type Stud | ||
Bore Size 20mm | ||
Static Load Rating 32500N | ||
Dynamic Load Rating 18700N | ||
Ring Slide & Track System Bearing Type Concentric | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
SKF Stud Type Track Rollers
Cam followers of the KR design are fitted with needle rollers and have a thick outer ring making them suitable for shock loads.
Concentric cam follower
The outer ring is guided via the integral flange at the head of the stud and the pressed on side washer
SKF Cam followers on the PPA design have axial slide rings of polyamide 66
These slide rings reduce the friction and give relatively cool operation that is advantageous for the grease service life
In the radial direction the slide ring forms a narrow gap to the outer ring that protects against course contaminations
Operating temperature range is -30 to +100°C
The PPA design has an improved profile of the runner surface which gives a better stress distribution, also under misaligned conditions
The PPA design has a crowned running surface
Supplied with grease nipples
Lubrication can be done at the Head or thread end, except KR 16 & 19 which can only be lubricated at the head
